NL50-BEMXX (1994)
Toyota Corsa/Tercel

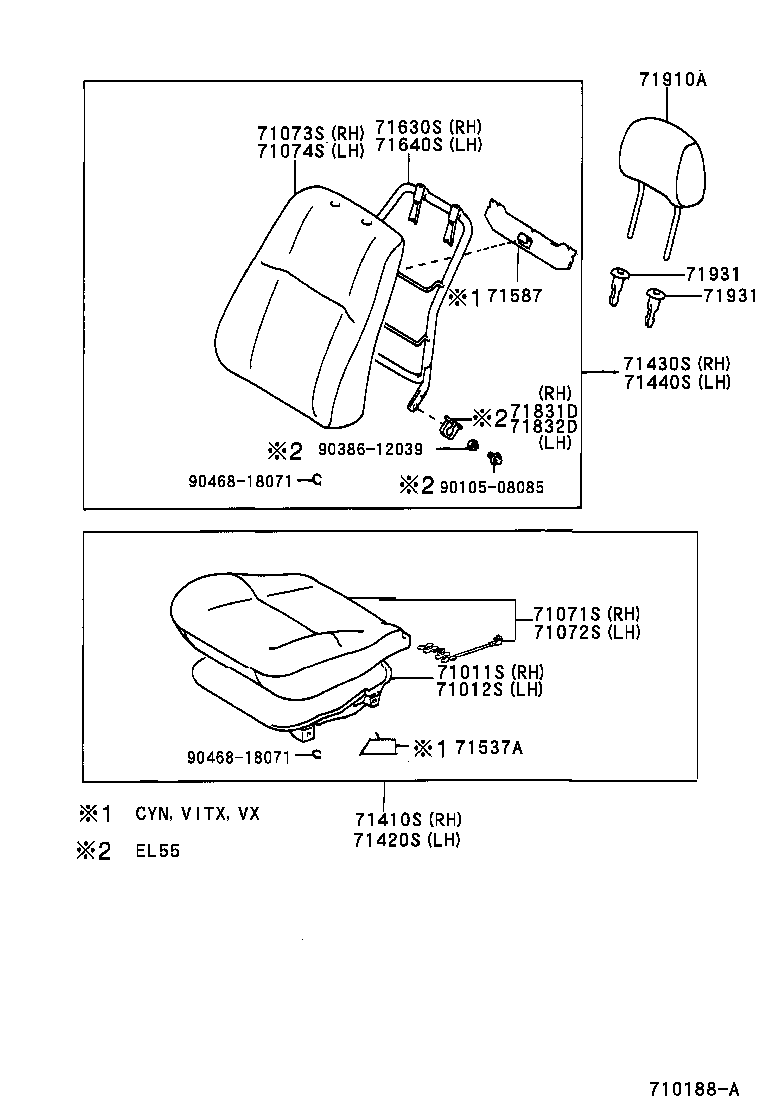

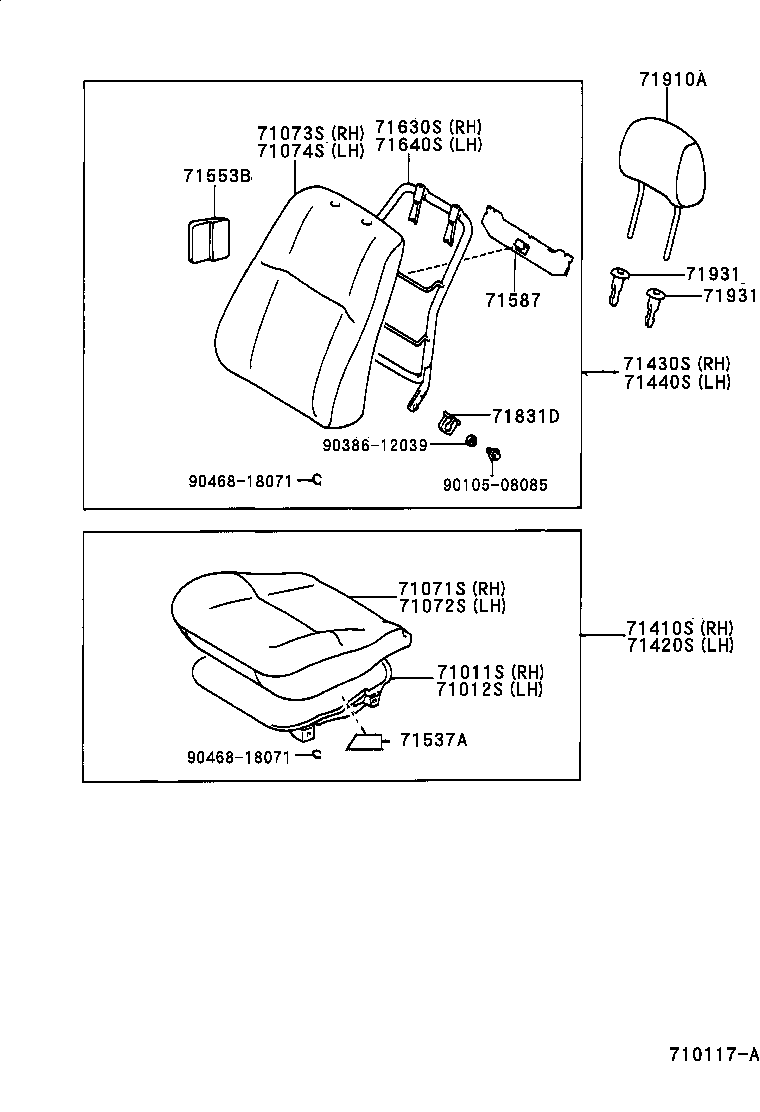

ILLUST NO. 1 OF 2(9409-9608)AVE,AXX,CYN,SOP,VITX,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16150 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71011-10230 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL5#,NL50 |
1 | ||
| 71011-10220 |
EL51,53,NL50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16290B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16150B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16300B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16300B0 |
EL53,NL50..4DS..(VITX,VX) BLUISH GRAY |
1 | ||
| 71518-16150B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16130B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71558-16170B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16170B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71568-16100B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G390B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G240B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G270B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G200B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G350B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G480B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G300B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G480B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-16040 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
2 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16110 |
EL5#,NL50 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-16010 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16230 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71013-16130 |
EL51,53,NL50 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-16130 |
EL51,53,NL50 |
1 | ||
| 71640-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL5#,NL50 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16470B1 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||

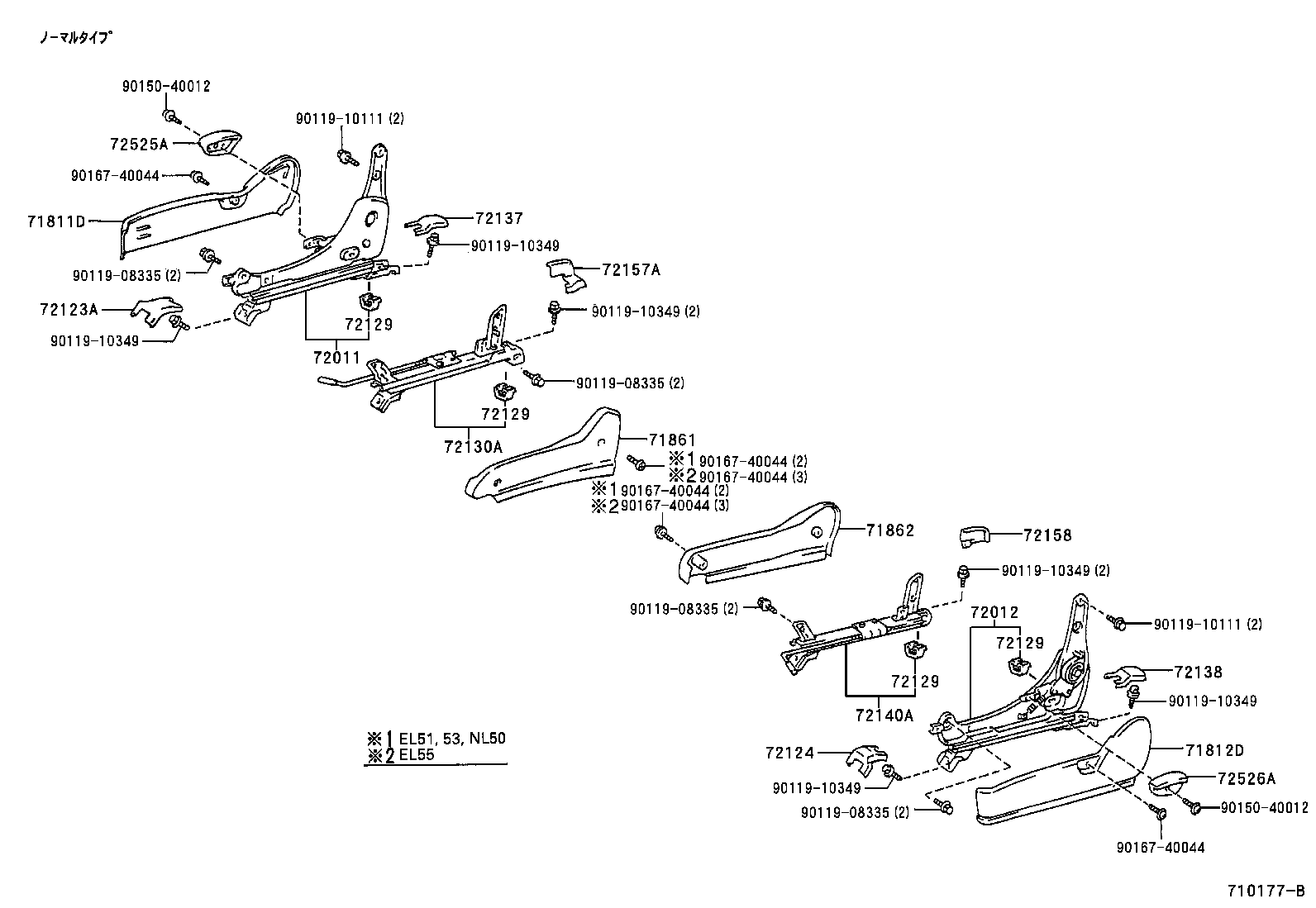

ILLUST NO. 2 OF 2(9409-9608)EL51,53,NL50 ; (9409- )EL55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16150B0 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
EL51,53,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16220B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16130B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16190B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16290 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72011-16320 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5#,NL50..4DS |
1 | ||
| 72012-16250 |
EL51,53,NL50..4DS |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL5#,NL50 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL5#,NL50 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16190 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16050 |
EL51,53,NL50 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72138-16050 |
EL51,53,NL50 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
EL53..4DS;EL51..4DS..AVE;EL51,NL50..AX,AXX,JOI,MOA,VITX,VX |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16080 |
EL51,53,NL50 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16080 |
EL51,53,NL50 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90150-40012 | ||||
| 90167-40044 | ||||

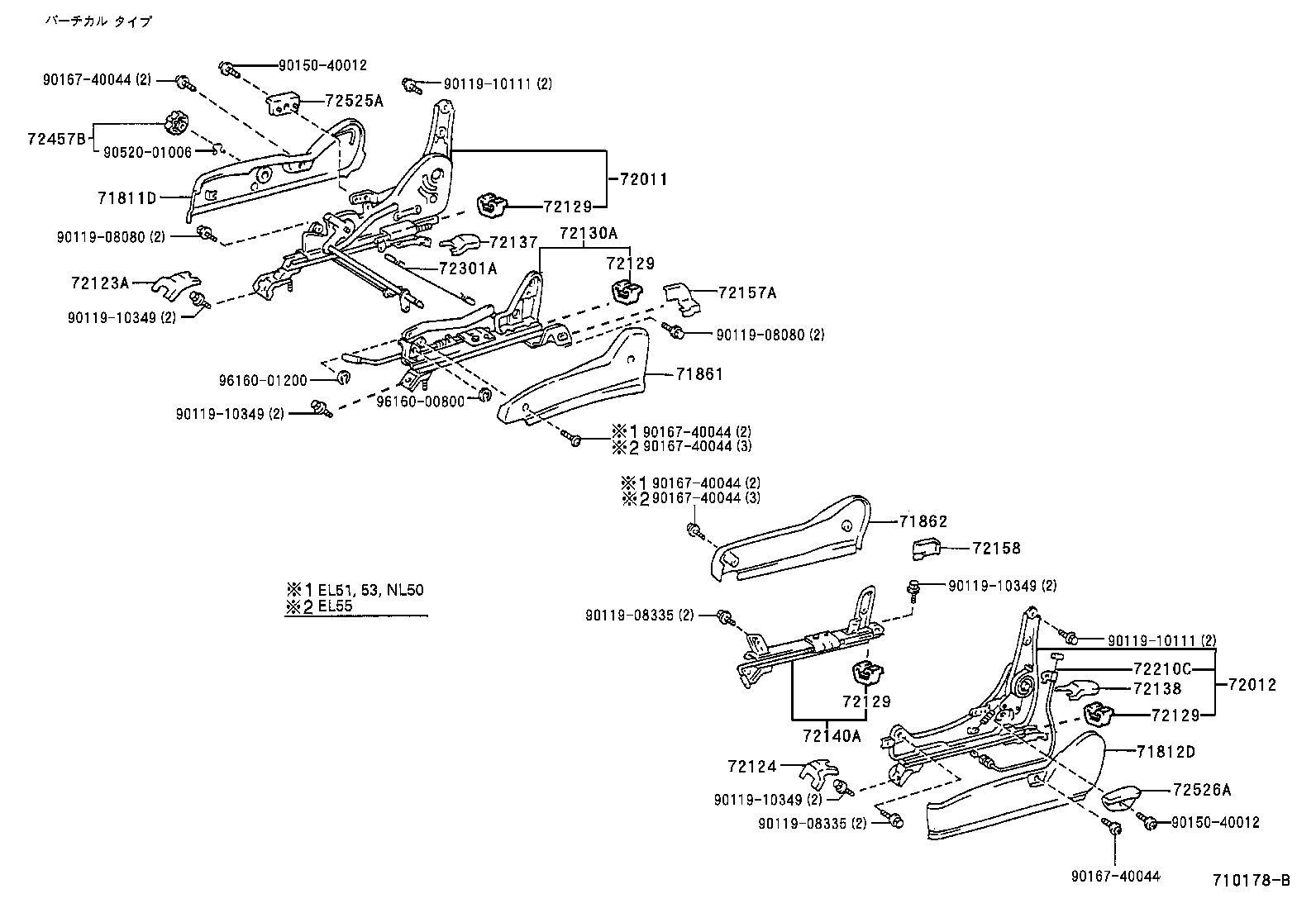

ILLUST NO. 2 OF 2(9409-9608)EL51,53,NL50 ; (9409- )EL55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16150B0 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
EL51,53,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16220B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16130B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16190B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16290 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72011-16320 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5#,NL50..4DS |
1 | ||
| 72012-16250 |
EL51,53,NL50..4DS |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL5#,NL50 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL5#,NL50 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16190 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16050 |
EL51,53,NL50 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72138-16050 |
EL51,53,NL50 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
EL53..4DS;EL51..4DS..AVE;EL51,NL50..AX,AXX,JOI,MOA,VITX,VX |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16080 |
EL51,53,NL50 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16080 |
EL51,53,NL50 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-16140 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-16010B1 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 72457-18010B3 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX SHADOW GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90150-40012 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||

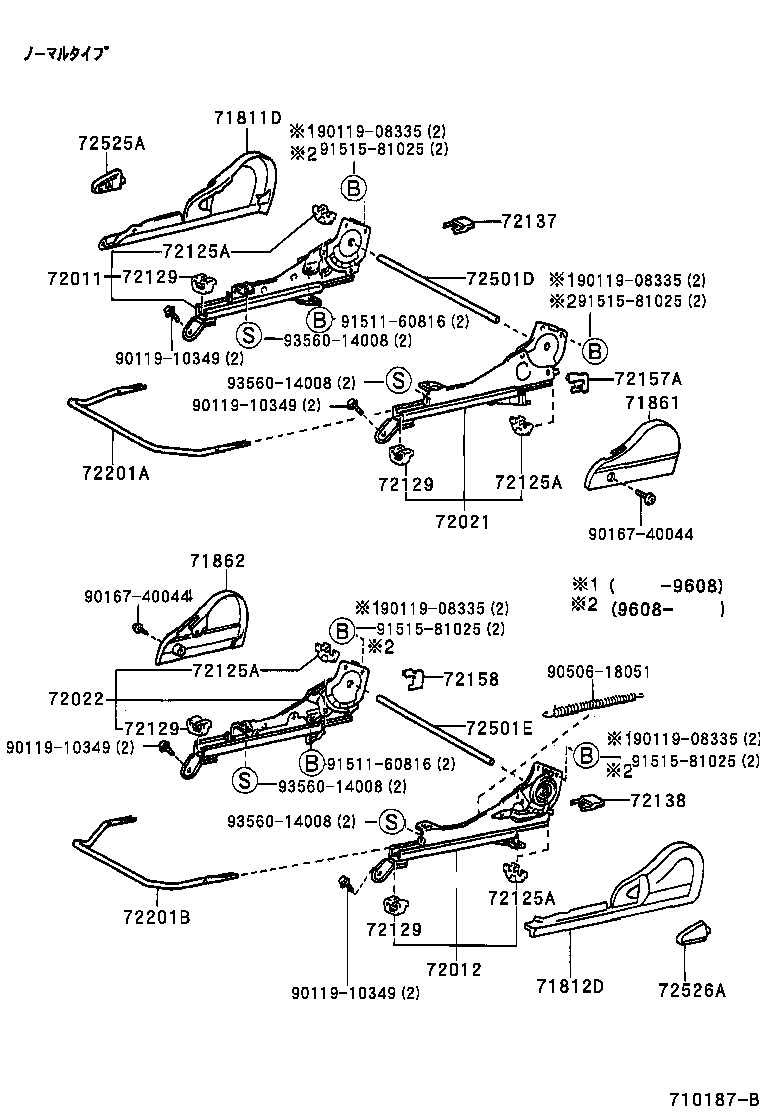

ILLUST NO. 2 OF 2(9608- )EL51,53,NL50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16150B0 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
EL51,53,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16220B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16130B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16190B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16290 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72011-16320 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5#,NL50..4DS |
1 | ||
| 72012-16250 |
EL51,53,NL50..4DS |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16260 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16220 |
EL53..4DS;EL51..4DS..AVE;EL51,NL50..AX,AXX,JOI,MOA,VITX,VX |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16050 |
EL51,53,NL50 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72138-16050 |
EL51,53,NL50 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16080 |
EL51,53,NL50 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16080 |
EL51,53,NL50 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-16020 |
EL51,53,NL50 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-16020 |
EL51,53,NL50 |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-16030 |
EL51,53,NL50 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16030 |
EL51,53,NL50 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90506-18051 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
ILLUST NO. 1 OF 2(9608- )AVE,AXX,CYN,SOP,VITX,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16150 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71011-10230 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL5#,NL50 |
1 | ||
| 71011-10220 |
EL51,53,NL50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16290B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16150B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16300B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16300B0 |
EL53,NL50..4DS..(VITX,VX) BLUISH GRAY |
1 | ||
| 71518-16150B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-16130B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71558-16170B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71558-16170B0 |
EL53,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71568-16100B0 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G390B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G240B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G270B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G200B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G350B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G480B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G300B0 |
EL53,55,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G480B0 |
EL53,NL50..CYN,VITX,VX ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-16040 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-16010 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16230 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71013-16130 |
EL51,53,NL50 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71013-16130 |
EL51,53,NL50 |
1 | ||
| 71640-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL5#,NL50 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16470B1 |
EL53,55,NL50..CYN,VITX,VX BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
ILLUST NO. 2 OF 2(9608- )EL51,53,NL50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20300B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16150B0 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
EL51,53,NL50..4DS SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16220B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16130B0 |
EL51,53,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862-16190B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16290 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72011-16320 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16230 |
EL5#,NL50..4DS |
1 | ||
| 72012-16250 |
EL51,53,NL50..4DS |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-16260 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-16220 |
EL53..4DS;EL51..4DS..AVE;EL51,NL50..AX,AXX,JOI,MOA,VITX,VX |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
EL51,53,NL50 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16050 |
EL51,53,NL50 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72138-16050 |
EL51,53,NL50 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16080 |
EL51,53,NL50 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16080 |
EL51,53,NL50 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-16020 |
EL51,53,NL50 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-16020 |
EL51,53,NL50 |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-16010B1 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BLUISH GRAY,TRIM1# |
1 | ||
| 72457-18010B3 |
EL51,53,NL50..AVE,AXX,CYN,SOP,VITX,VX SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-16030 |
EL51,53,NL50 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-16030 |
EL51,53,NL50 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
EL51,53,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
