NL50-BEMXX (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Dec 1997
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )NL50

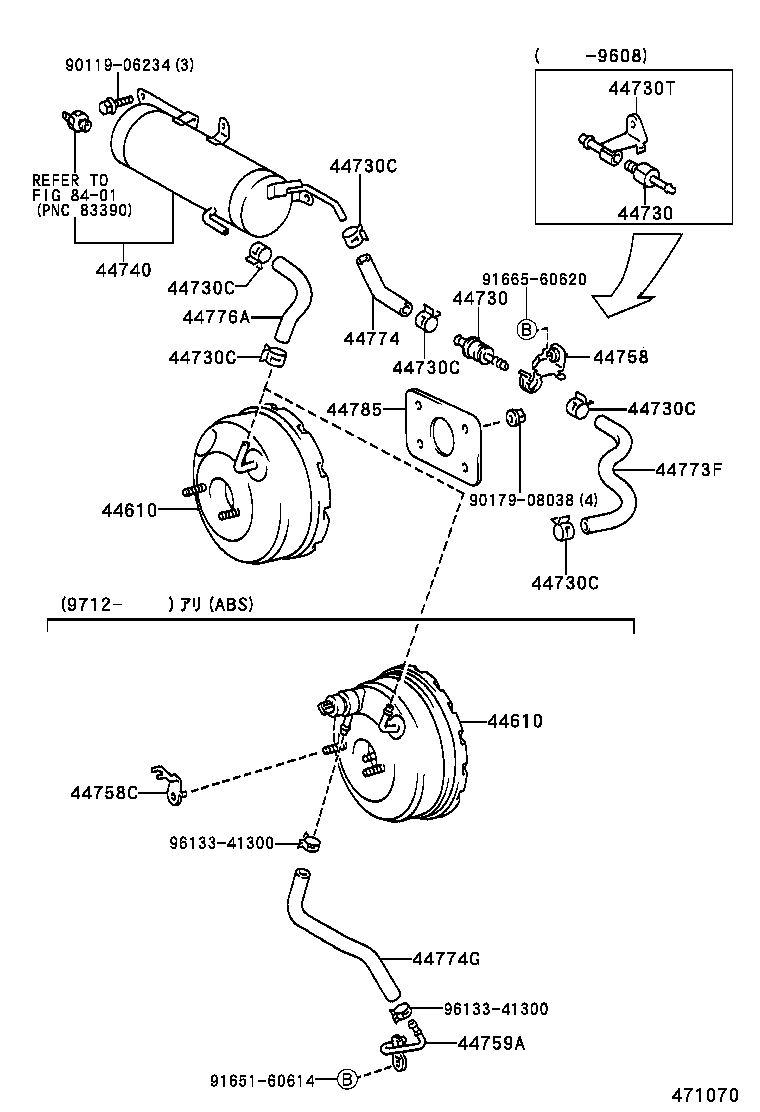

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16560 |
NL50 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16560 |
NL50 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
NL50 |
1 | ||
| 44730-20070 |
NL50 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60050 |
NL50 |
1 | ||
| 44730-20070 |
NL50 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL50 |
6 | ||
| 44730T - UNION(FOR VACUUM CHECK VALVE) | ||||
| 90404-52032 |
NL50 |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-16030 |
NL50 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-10120 |
NL50 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16200 |
NL50 |
1 | ||
| 44773-16110 |
NL50 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-16030 |
NL50 |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-16020 |
NL50 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-10020 |
EL5#,NL50 |
1 | ||
| 44785-16020 |
EL5#,NL50 |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90179-08038 | ||||
| 91651-60614 | ||||
| 91665-60620 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
