8718 - HEATING & AIR CONDITIONING - COOLER PIPING

NL50-BEMDX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 1NT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

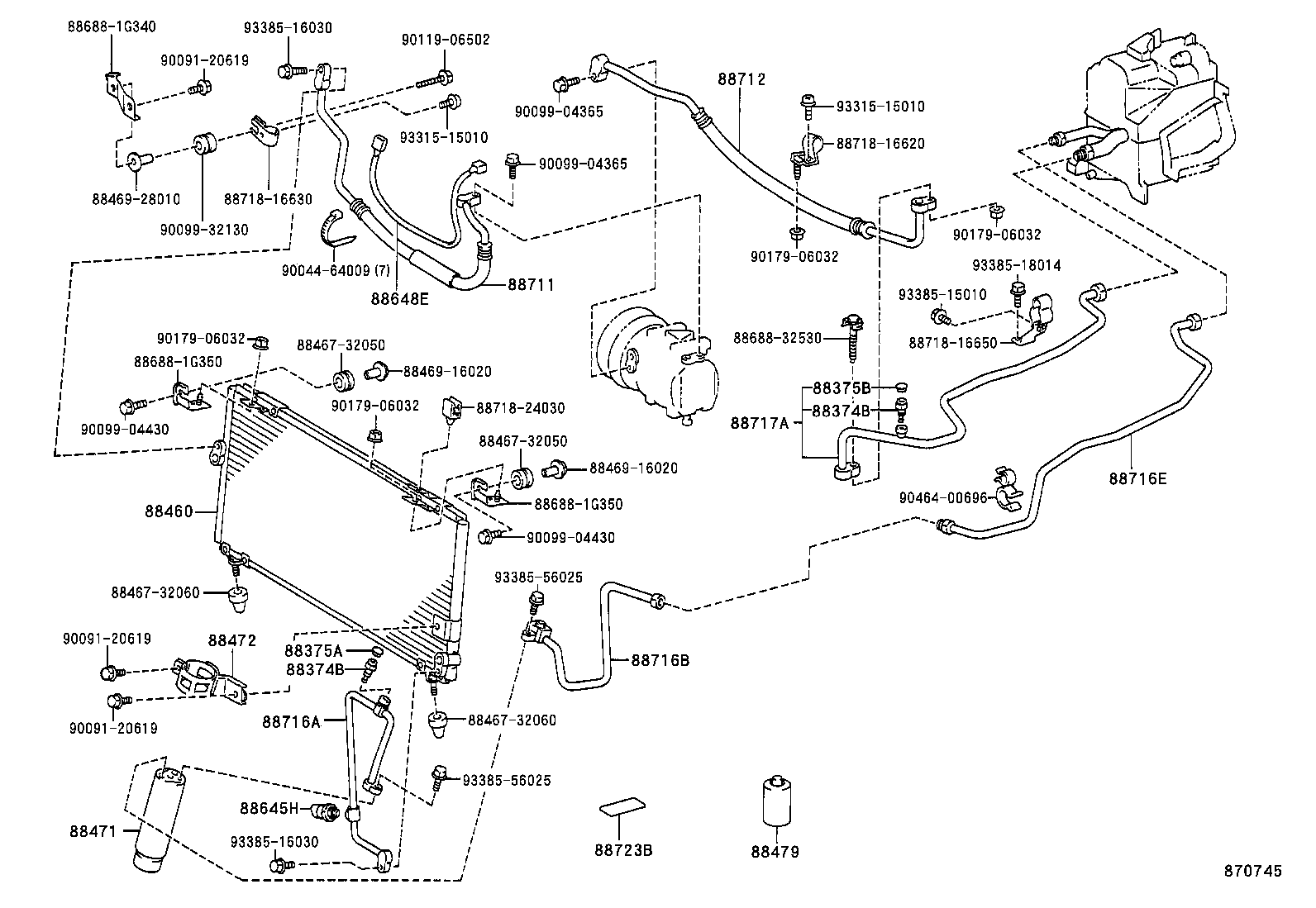

ILLUST NO. 1 OF 2(9608- )NL50

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL5#,NL50	08/1996 - 12/2999	2
88374-30010	EL5#;NL50..AX,JOI,MOA	09/1994 - 08/1996	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL5#,NL50	08/1996 - 12/2999	2
88374-30010	EL5#;NL50..AX,JOI,MOA	09/1994 - 08/1996	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL5#,NL50	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL5#,NL50	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16560	NL50	12/1997 - 12/2999	1
88460-16350	NL50	09/1994 - 12/1997	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL5#,NL50	09/1994 - 12/1997	1
88471-20050	NL50	12/1997 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16150	NL50	09/1994 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	EL5#,NL50..AX,JOI,MOA 200G	09/1994 - 08/1996	2
90986-02008	NL50;EL5#..AX,JOI,MOA 200G	08/1996 - 12/1997	2
90986-02008	NL50 200G	12/1997 - 12/2999	2
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL5#,NL50	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16240	NL50	09/1994 - 12/1997	1
88648-16320	NL50	12/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16330	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88711-16490	NL50	12/1997 - 12/2999	1
88711-16330	NL50	08/1996 - 12/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16600	NL50..5F	12/1997 - 12/2999	1
88712-16430	NL50..5F	09/1994 - 12/1997	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G050	NL50	09/1994 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1G110	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88716-1G110	NL50	08/1996 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G100	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88716-1G100	NL50	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16240	NL50	09/1994 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16030	EL5#,NL50	09/1994 - 08/1996	1
88723-20030	EL5#,NL50	12/1997 - 12/2999	1
88723-16030	NL50	08/1996 - 12/1997	1
Common parts
88467-32050
88467-32060
88469-16020
88469-28010
88688-1G340
88688-1G350
88688-32530
88718-16620
88718-16630
88718-16650
88718-24030
90044-64009
90091-20619
90099-04365
90099-04430
90099-32130
90119-06502
90179-06032
90464-00696
93315-15010
93385-15010
93385-16030
93385-18014
93385-56025

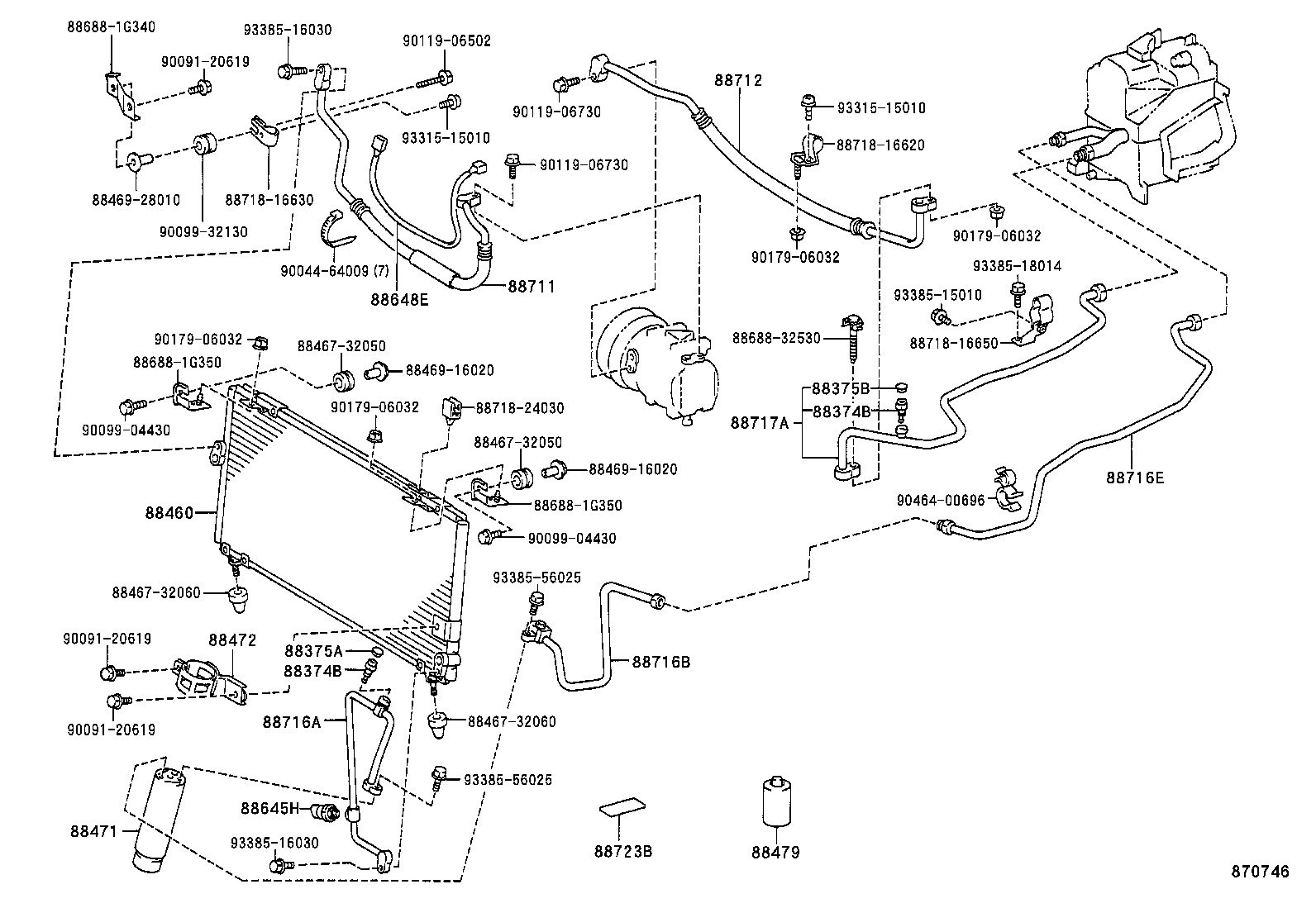

ILLUST NO. 1 OF 2(9409-9608)NL50..AX,JOI,MOA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EL5#,NL50	08/1996 - 12/2999	2
88374-30010	EL5#;NL50..AX,JOI,MOA	09/1994 - 08/1996	2
88374B - VALVE, SERVICE, NO.1
88374-30010	EL5#,NL50	08/1996 - 12/2999	2
88374-30010	EL5#;NL50..AX,JOI,MOA	09/1994 - 08/1996	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	EL5#,NL50	09/1994 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	EL5#,NL50	09/1994 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-16560	NL50	12/1997 - 12/2999	1
88460-16350	NL50	09/1994 - 12/1997	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	EL5#,NL50	09/1994 - 12/1997	1
88471-20050	NL50	12/1997 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16150	NL50	09/1994 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	EL5#,NL50..AX,JOI,MOA 200G	09/1994 - 08/1996	2
90986-02008	NL50;EL5#..AX,JOI,MOA 200G	08/1996 - 12/1997	2
90986-02008	NL50 200G	12/1997 - 12/2999	2
88645H - SWITCH, PRESSURE NO.1
88645-20050	EL5#,NL50	09/1994 - 12/2999	1
88648E - WIRING, COOLER
88648-16240	NL50	09/1994 - 12/1997	1
88648-16320	NL50	12/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16330	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88711-16490	NL50	12/1997 - 12/2999	1
88711-16330	NL50	08/1996 - 12/1997	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16600	NL50..5F	12/1997 - 12/2999	1
88712-16430	NL50..5F	09/1994 - 12/1997	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1G050	NL50	09/1994 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-1G110	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88716-1G110	NL50	08/1996 - 12/2999	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1G100	NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88716-1G100	NL50	08/1996 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16240	NL50	09/1994 - 12/2999	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16030	EL5#,NL50	09/1994 - 08/1996	1
88723-20030	EL5#,NL50	12/1997 - 12/2999	1
88723-16030	NL50	08/1996 - 12/1997	1
Common parts
88467-32050
88467-32060
88469-16020
88469-28010
88688-1G340
88688-1G350
88688-32530
88718-16620
88718-16630
88718-16650
88718-24030
90044-64009
90091-20619
90099-04430
90099-32130
90119-06502
90119-06730
90179-06032
90464-00696
93315-15010
93385-15010
93385-16030
93385-18014
93385-56025

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
