NL50-BEMDX (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

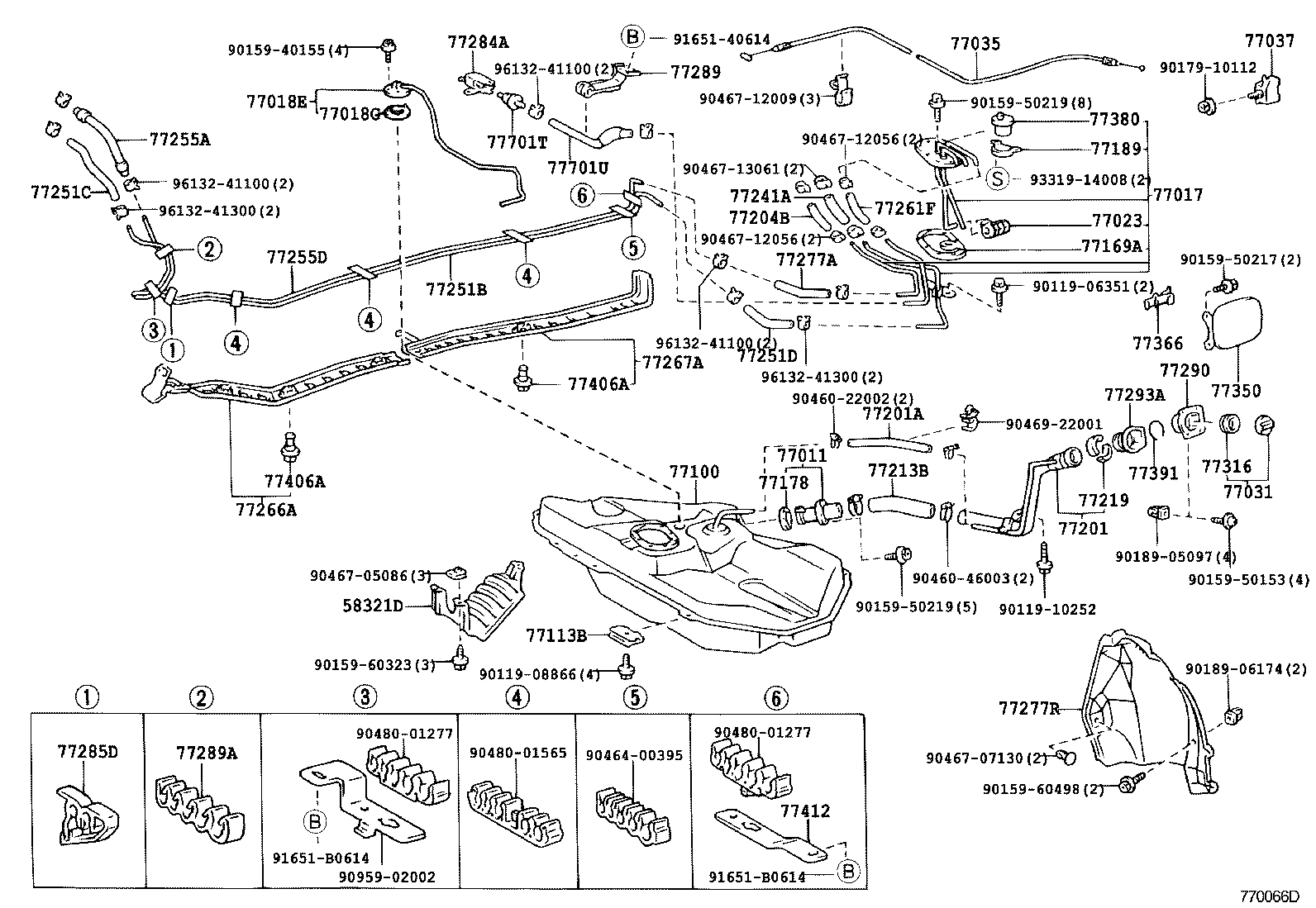

(9409-9608)NL50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58321D - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-10020 |
EL51,53,NL50 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16100 |
EL51,53,NL50 |
1 | ||
| 77011-10060 |
EL5#,NL50 |
1 | ||
| 77011-16100 |
NL50 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-16170 |
NL50 |
1 | ||
| 77017-16150 |
NL50 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EL51,53,NL50 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EL5#,NL50 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
NL50 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
NL50 |
1 | ||
| 77310-12150 |
NL50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-16210 |
EL5#,NL50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-16040 |
EL5#,NL50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16220 |
EL51,53,NL50 |
1 | ||
| 77001-16250 |
EL51,53,NL50 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EL51,53,NL50 |
4 | ||
| 77113-10020 |
EL51,53,NL50 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EL51,53,NL50 |
1 | ||
| 77169-20050 |
EL51,53,NL50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EL5#,NL50 |
1 | ||
| 77178-20030 |
EL5#,NL50 |
1 | ||
| 77189 - RETAINER, FUEL CHECK VALVE | ||||
| 77189-18010 |
EL51,53,NL50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16151 |
EL51,53,NL50 |
1 | ||
| 77201-16161 |
EL51,53,NL50 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13028 |
EL51,53,NL50 長さ=280 |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-06010 |
NL50 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-16080 |
EL51,53,NL50 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
EL5#,NL50 |
2 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
NL50 *H,L=120,内径=7.6 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-16170 |
NL50 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
NL50 *H,L=160,内径=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-10040 |
NL50 長さ=140 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 23273-55020 |
NL50 長さ=310 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-16160 |
NL50 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
NL50 *H,L=130 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10030 |
EL5#,NL50 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-16020 |
EL5#,NL50 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
NL50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-16120 |
EL5#,NL50 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32020 |
NL50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10010 |
EL5#,NL50 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-10011 |
NL50 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-10030 |
EL5#,NL50 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16120 |
EL5#,NL50 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-16110 |
EL5#,NL50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EL5#,NL50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-16220 |
EL5#,NL50..4DS |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-16010 |
EL5#,NL50 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
EL5#,NL50 |
1 | ||
| 77380-26010 |
EL5#,NL50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
EL5#,NL50 |
1 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL5#,NL50 |
4 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL5#,NL50 |
4 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-10010 |
EL5#,NL50 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
NL50 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 77249-10080 |
NL50 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60323 | ||||
| 90159-60498 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00395 | ||||
| 90467-05086 | ||||
| 90467-07130 | ||||
| 90467-12009 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 90469-22001 | ||||
| 90480-01277 | ||||
| 90480-01565 | ||||
| 90959-02002 | ||||
| 91651-40614 | ||||
| 91651-B0614 | ||||
| 93319-14008 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||

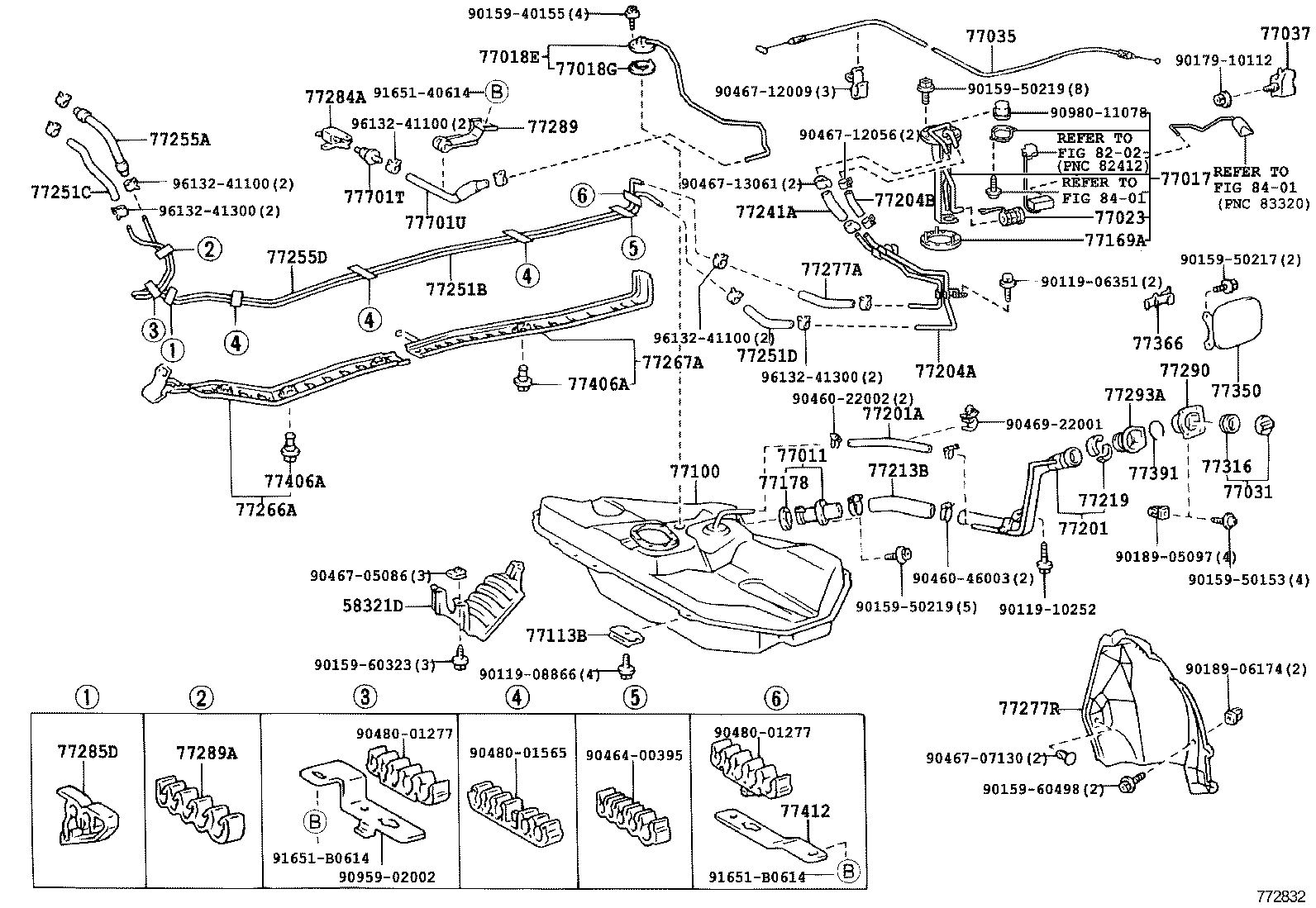

(9608- )NL50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58321D - INSULATOR, REAR FLOOR HEAT, NO.1 | ||||
| 58321-10020 |
EL51,53,NL50 |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-16100 |
EL51,53,NL50 |
1 | ||
| 77011-10060 |
EL5#,NL50 |
1 | ||
| 77011-16100 |
NL50 |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-16170 |
NL50 |
1 | ||
| 77017-16150 |
NL50 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-16060 |
EL51,53,NL50 |
1 | ||
| 77018G - GASKET, FUEL TANK EVAP/VENT TUBE | ||||
| 77179-26010 |
EL5#,NL50 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
NL50 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-32011 |
NL50 |
1 | ||
| 77310-12150 |
NL50 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-16210 |
EL5#,NL50 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-16040 |
EL5#,NL50 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-16220 |
EL51,53,NL50 |
1 | ||
| 77001-16250 |
EL51,53,NL50 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EL51,53,NL50 |
4 | ||
| 77113-10020 |
EL51,53,NL50 |
4 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-16030 |
EL51,53,NL50 |
1 | ||
| 77169-20050 |
EL51,53,NL50 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
EL5#,NL50 |
1 | ||
| 77178-20030 |
EL5#,NL50 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16151 |
EL51,53,NL50 |
1 | ||
| 77201-16161 |
EL51,53,NL50 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 95311-13028 |
EL51,53,NL50 長さ=280 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-16020 |
NL50..AX,JOI,MOA |
1 | ||
| 77204B - HOSE, FUEL(FOR FUEL RETURN) | ||||
| 95333-06010 |
NL50 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-16080 |
EL51,53,NL50 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
EL5#,NL50 |
2 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
NL50 *H,L=120,内径=7.6 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-16170 |
NL50 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
NL50 *H,L=160,内径=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-10040 |
NL50 長さ=140 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 23273-55020 |
NL50 長さ=310 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-16160 |
NL50 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10030 |
EL5#,NL50 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-16020 |
EL5#,NL50 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06020 |
NL50 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-16120 |
EL5#,NL50 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32020 |
NL50 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-10010 |
EL5#,NL50 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-10011 |
NL50 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-10030 |
EL5#,NL50 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-16120 |
EL5#,NL50 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-16110 |
EL5#,NL50 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
EL5#,NL50 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-16220 |
EL5#,NL50..4DS |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-16010 |
EL5#,NL50 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
EL5#,NL50 |
1 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL5#,NL50 |
4 | ||
| 77406A - CLIP(FOR FUEL TUBE PROTECTOR) | ||||
| 90467-16023 |
EL5#,NL50 |
4 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-10010 |
EL5#,NL50 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
NL50 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 77249-10080 |
NL50 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-08866 | ||||
| 90119-10252 | ||||
| 90159-40155 | ||||
| 90159-50153 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60323 | ||||
| 90159-60498 | ||||
| 90179-10112 | ||||
| 90189-05097 | ||||
| 90189-06174 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00395 | ||||
| 90467-05086 | ||||
| 90467-07130 | ||||
| 90467-12009 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 90469-22001 | ||||
| 90480-01277 | ||||
| 90480-01565 | ||||
| 90959-02002 | ||||
| 90980-11078 | ||||
| 91651-40614 | ||||
| 91651-B0614 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
