NL50-BEMDX (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )1NT

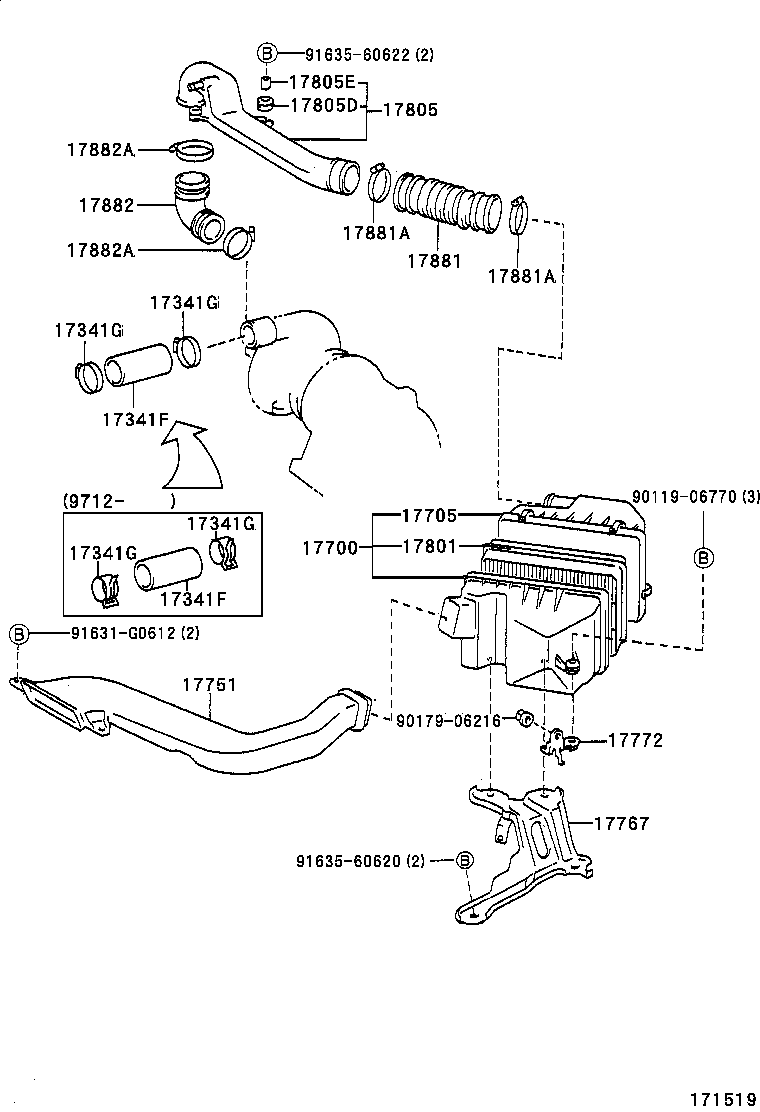

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-55011 |
1NT..NL50 |
1 | ||
| 17341-55020 |
1NT..NL50 |
1 | ||
| 17341-55010 |
1NT..NL50 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-55011 |
1NT..NL50 |
1 | ||
| 17341-55020 |
1NT..NL50 |
1 | ||
| 17341-55010 |
1NT..NL50 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90466-41002 |
1NT..NL50 |
2 | ||
| 90460-50001 |
1NT..NL50 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90466-41002 |
1NT..NL50 |
2 | ||
| 90460-50001 |
1NT..NL50 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90466-41002 |
1NT..NL50 |
2 | ||
| 90460-50001 |
1NT..NL50 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90466-41002 |
1NT..NL50 |
2 | ||
| 90460-50001 |
1NT..NL50 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-55030 |
1NT..NL50 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-55070 |
1NT..NL50 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-55010 |
1NT..NL50 |
1 | ||
| 17767 - BRACKET, AIR CLEANER | ||||
| 17771-55020 |
1NT..NL50 |
1 | ||
| 17772 - BRACKET, INTAKE AIR CONNECTOR, NO.2 | ||||
| 17772-11030 |
1NT..NL50 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-55020 |
1NT..NL50 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17860-55020 |
1NT..NL50 |
1 | ||
| 17805D - GROMMET(FOR INTAKE AIR CONNECTOR) | ||||
| 90480-14015 |
1NT..NL50 |
2 | ||
| 17805E - COLLAR(FOR INTAKE AIR CONNECTOR) | ||||
| 90387-07016 |
1NT..NL50 |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-55080 |
1NT..NL50 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NT..NL50 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NT..NL50 |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-55040 |
1NT..NL50 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65004 |
1NT..NL50 ｺﾈｸﾀ側 |
1 | ||
| 90460-52003 |
1NT..NL50 ﾀ-ﾎﾞﾁﾔ-ｼﾞﾔ ｻｲﾄﾞ |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65004 |
1NT..NL50 ｺﾈｸﾀ側 |
1 | ||
| 90460-52003 |
1NT..NL50 ﾀ-ﾎﾞﾁﾔ-ｼﾞﾔ ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90119-06770 | ||||
| 90179-06216 | ||||
| 91631-G0612 | ||||
| 91635-60620 | ||||
| 91635-60622 | ||||
