NL50-AGMDX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )1NT

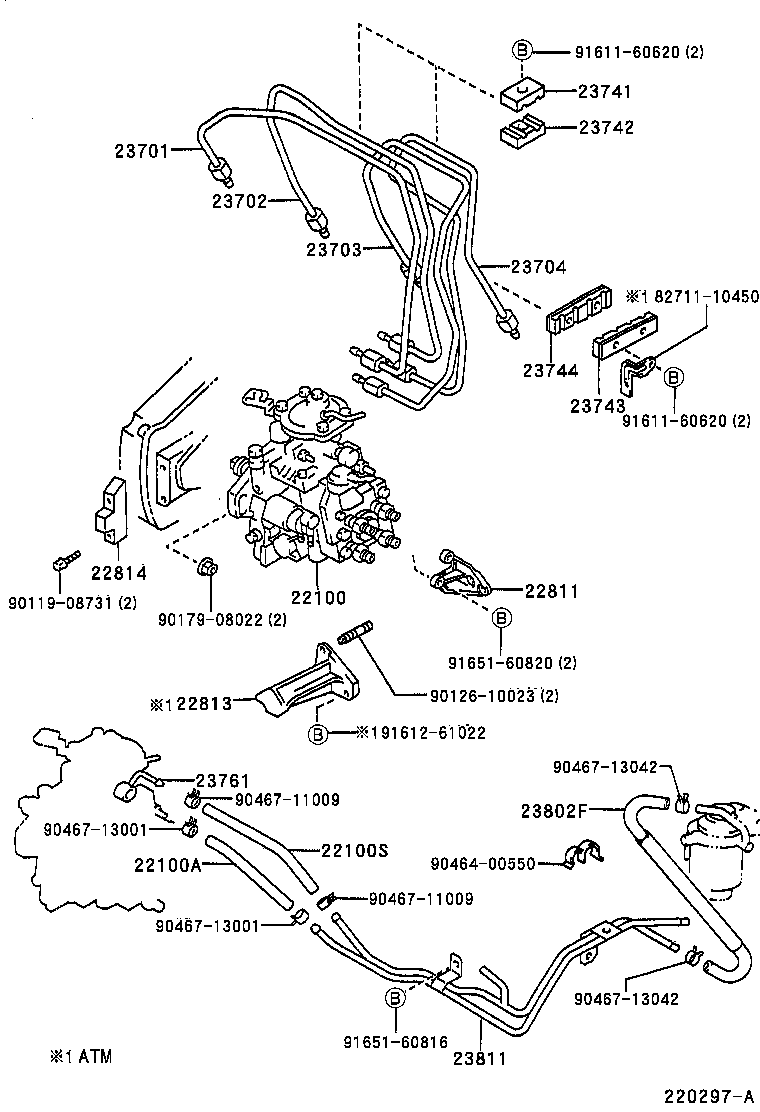

Click highlighted areas on diagram

diagram 22100 22100A 22100S 22811 22813 22814 23701 23702 23703 23704 23741 23742 23743 23744 23761 23802F 23811 8271110450 9011908731 9012610023 9017908022 9046400550 9046711009 9046711009 9046713001 9046713001 9046713042 9046713042 9161160620 9161160620 9161261022 9165160816 9165160820
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-55290

1NT..NL50..5F..(AX,JOI,MOA)

 1
22100-55300

1NT..NL50..5F

ｶﾝﾚｲﾁ ｼﾖｳ

 1
22100-55300

1NT..NL50..5F..(AX,JOI,MOA)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
22100-55290

1NT..NL50..5F

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08010

1NT..NL50

*H,L=100,内径=7.6

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-55010

1NT..NL50

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-55010

1NT..NL50

 1
22814 - PROTECTOR, INJECTION PUMP, NO.2
22814-55021

1NT..NL50

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-55010

1NT..NL50

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-55010

1NT..NL50

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-55010

1NT..NL50

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-55010

1NT..NL50

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010

1NT..NL50

 2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010

1NT..NL50

 2
23743 - CLAMP, INJECTION PIPE, NO.3
23741-64020

1NT..NL50

 1
23744 - CLAMP, INJECTION PIPE, NO.4
23742-55010

1NT..NL50

 1
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23764-55010

1NT..NL50

 1
23802F - HOSE, FUEL
23271-55021

1NT..NL50

 1
23271-55020

1NT..NL50

 1
23271-55022

1NT..NL50

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-55031

1NT..NL50

 1
Common parts
82711-10450
90119-08731
90126-10023
90179-08022
90464-00550
90467-11009
90467-13001
90467-13042
91611-60620
91612-61022
91651-60816
91651-60820
