NL50-AEPXX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Dec 1997
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

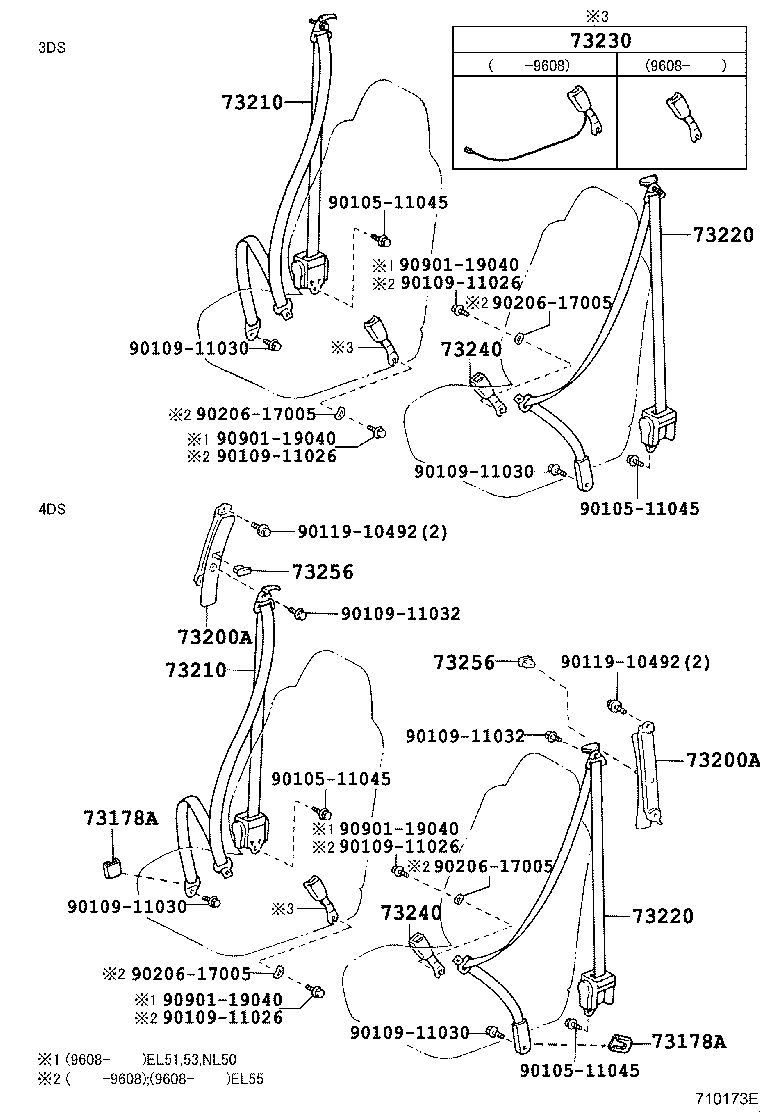

ILLUST NO. 1 OF 2(9409- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄﾍﾞﾙﾄ

diagram 73178A 73178A 73200A 73200A 73210 73210 73220 73220 73230 73240 73240 73256 73256 9010511045 9010511045 9010511045 9010511045 9010911026 9010911026 9010911026 9010911026 9010911030 9010911030 9010911030 9010911030 9010911032 9010911032 9011910492 9011910492 9020617005 9020617005 9020617005 9020617005 9090119040 9090119040 9090119040 9090119040
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16020B0

EL5#,NL50..4DS

SHADOW GRAY,TRIM1#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16020B0

EL5#,NL50..4DS

SHADOW GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-16020B0

EL5#,NL50..4DS

LT.BLUISH GRAY,TRIM1#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-16020B0

EL5#,NL50..4DS

LT.BLUISH GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-16540B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73210-16781B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16690B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16670B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73210-16630B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16780B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-16540B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73210-16781B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16690B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16670B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73210-16630B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ),BLUISH GRAY,TRIM1#

 1
73210-16780B0

EL51,53,NL50..4DS

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-16480B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16671B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16670B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16600B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-16480B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16671B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16670B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73220-16600B0

EL51,53,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-16360B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-16380B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-16380B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73256 - KNOB, SHOULDER BELT ANCHOR ADJUST
73256-16010B0

EL5#,NL50..4DS

LT.BLUISH GRAY,TRIM1#

 2
73256 - KNOB, SHOULDER BELT ANCHOR ADJUST
73256-16010B0

EL5#,NL50..4DS

LT.BLUISH GRAY,TRIM1#

 2
Common parts
90105-11045
90109-11026
90109-11030
90109-11032
90119-10492
90206-17005
90901-19040

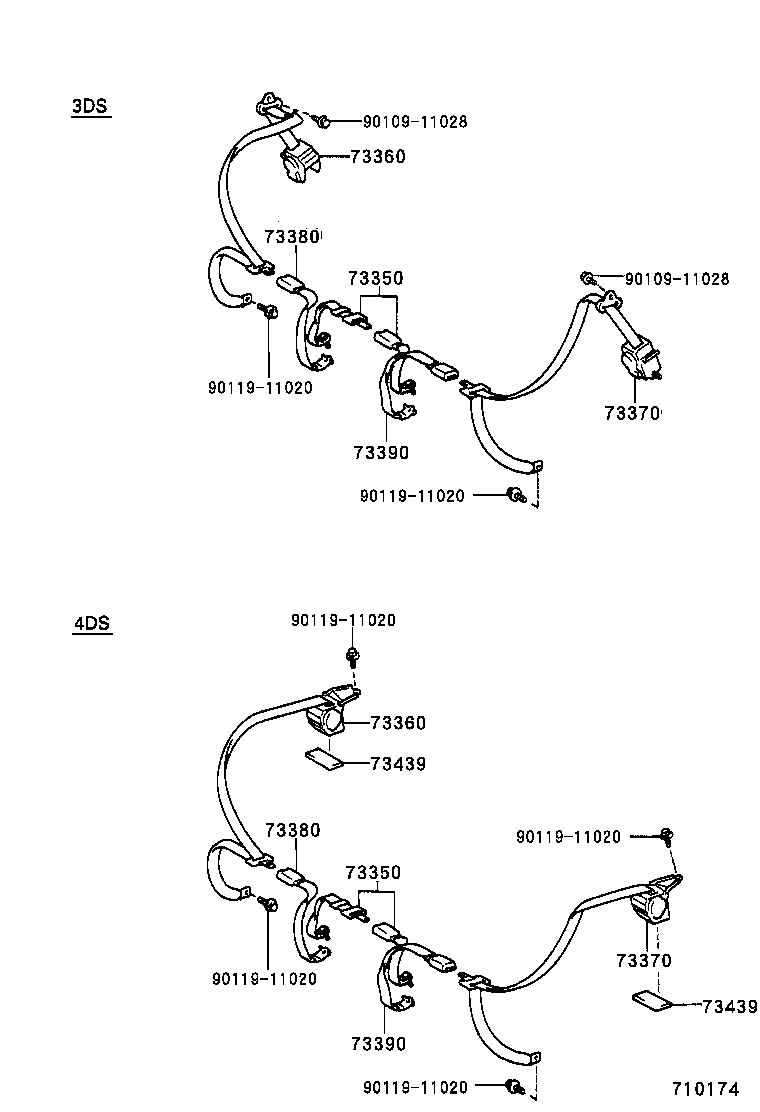

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ

diagram 73350 73350 73360 73360 73370 73370 73380 73380 73390 73390 73439 73439 9010911028 9010911028 9011911020 9011911020 9011911020 9011911020 9011911020 9011911020
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-16220B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73350-16250B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-16220B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73350-16250B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-16350B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73360-16420B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-16350B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73360-16420B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-16330B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73370-16260B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-16330B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73370-16260B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-16320B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73380-16290B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-16320B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73380-16290B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-16290B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73380-16320B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-16290B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73380-16320B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-16010

EL5#,NL50..4DS

 2
73439-16030

EL5#,NL50..4DS

 2
73439 - CUSHION, REAR SEAT BELT RETRACTOR
73439-16010

EL5#,NL50..4DS

 2
73439-16030

EL5#,NL50..4DS

 2
Common parts
90109-11028
90119-11020
