Toyota Corsa/tercel NL50 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
JP
CORSA/TERCEL
NL50-AEPXX (1994)
6701 - FRONT DOOR PANEL & GLASS

NL50-AEPXX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Dec 1997

Engine 1NT

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

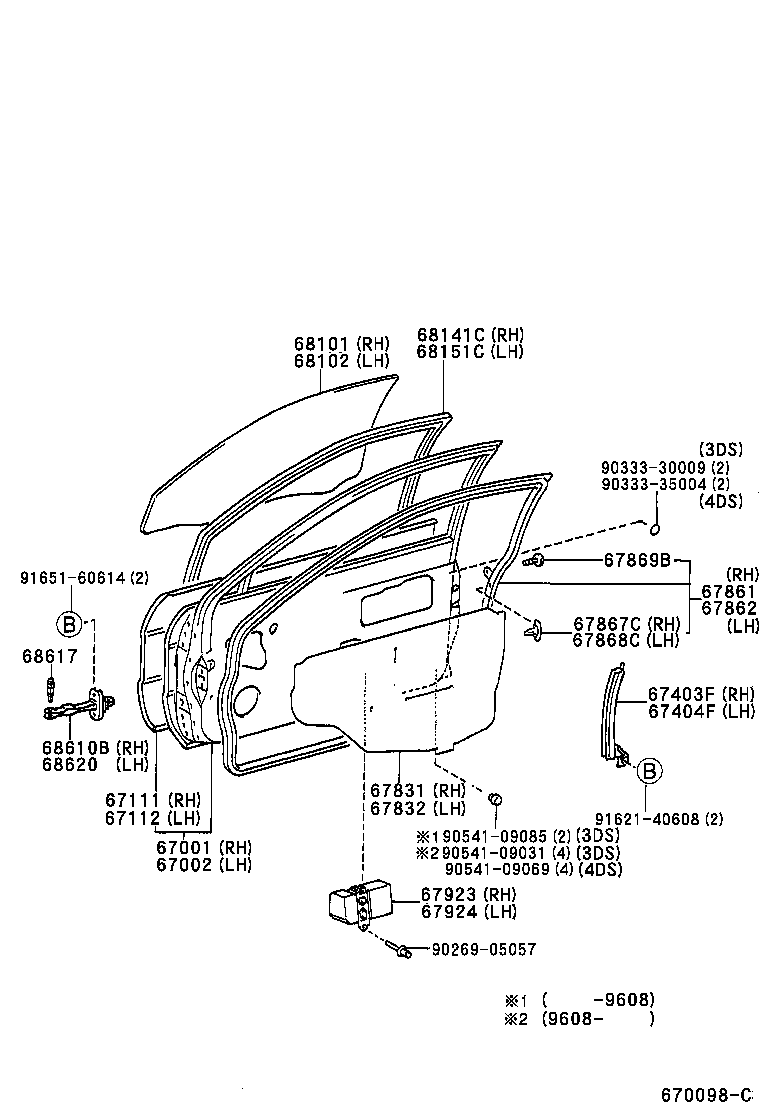

ILLUST NO. 2 OF 3(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16600	EL5#,NL50..4DS	09/1994 - 12/2999	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16530	EL5#,NL50..4DS	09/1994 - 12/2999	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16220	EL5#,NL50..4DS	09/1994 - 12/2999	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16200	EL5#,NL50..4DS	09/1994 - 12/2999	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16180	EL5#,NL50	05/1996 - 12/2999	1
67403-16130	EL5#,NL50	09/1994 - 05/1996	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16130	EL5#,NL50	09/1994 - 05/1996	1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-16400	EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/1994 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-16120	EL5#,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/1994 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16300	EL5#,NL50..4DS	09/1994 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16300	EL5#,NL50..4DS	09/1994 - 12/2999	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	EL5#,NL50..4DS	09/1994 - 12/2999	15
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	EL5#,NL50..4DS	09/1994 - 12/2999	15
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-32020	EL5#,NL50..4DS	09/1994 - 12/2999	2
67923 - CUSHION, FRONT DOOR STIFFENER, NO.1
67923-16010	EL5#,NL50..4DS	09/1994 - 12/2999	1
67924 - CUSHION, FRONT DOOR STIFFENER, NO.2
67924-16010	EL5#,NL50..4DS	09/1994 - 12/2999	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68110-16140	EL5#,NL50..4DS *UVCTT,厚さ=3.5,ﾌﾞﾙｰ	09/1994 - 08/1995	1
68110-16210	EL5#,NL50..4DS *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ	08/1995 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68120-16210	EL5#,NL50..4DS *UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ	08/1996 - 12/2999	1
68120-16130	EL5#,NL50..4DS *TT,厚さ=3.5,ﾌﾞﾙｰ	09/1994 - 08/1995	1
68120-16200	EL5#,NL50..4DS *TT,厚さ=3.5,ｸﾞﾘｰﾝ	08/1995 - 08/1996	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-16210	EL5#,NL50..4DS	09/1994 - 12/2999	1
68151C - RUN, FRONT DOOR GLASS, LH
68151-16040	EL5#,NL50..4DS	09/1994 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-16090	EL5#,NL50	09/1994 - 12/2999	1
68617 - PIN, FRONT DOOR CHECK
68617-20011	EL5#,NL50	08/1996 - 12/2999	2
68617-12030	EL5#,NL50	09/1994 - 08/1996	2
68620 - CHECK ASSY, FRONT DOOR, LH
68610-16090	EL5#,NL50	09/1994 - 12/2999	1
Common parts
90269-05057
90333-30009
90333-35004
90541-09031
90541-09069
90541-09085
91621-40608
91651-60614

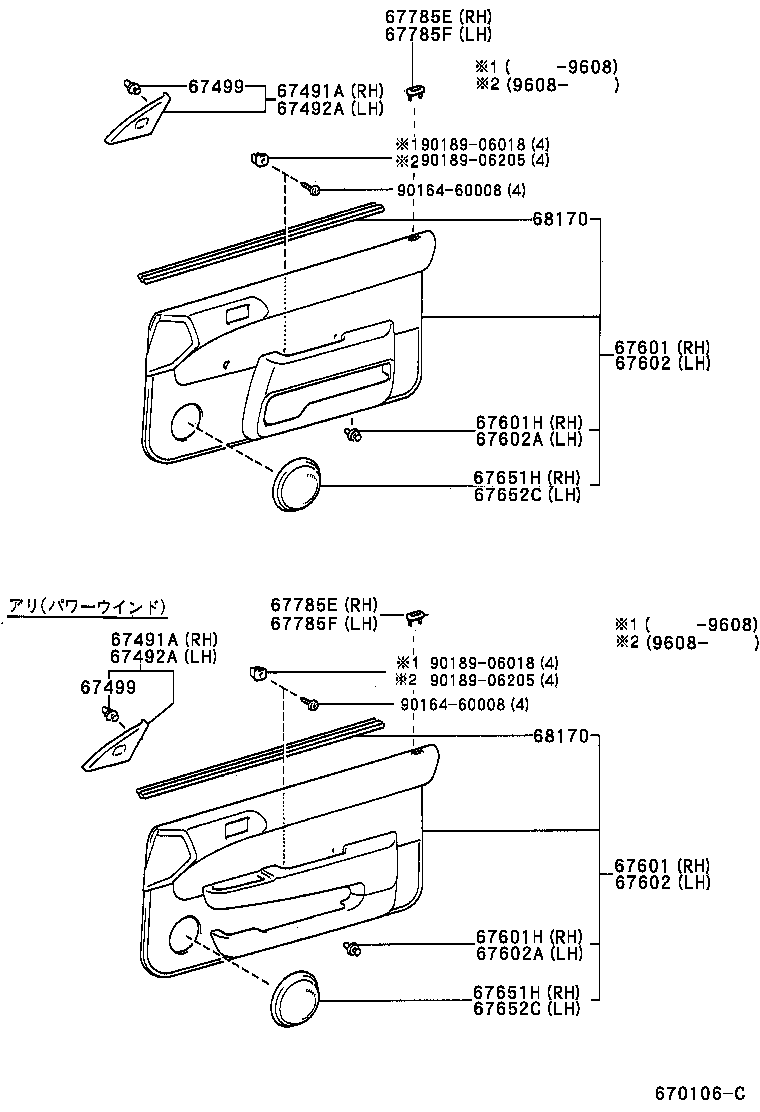

ILLUST NO. 1 OF 3(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16110	EL5#,NL50	09/1994 - 12/1997	1
67491-16230	EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｽﾋﾟ-ｶ)	09/1994 - 08/1996	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16110	EL5#,NL50	09/1994 - 12/1997	1
67491-16230	EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｽﾋﾟ-ｶ)	09/1994 - 08/1996	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16230	EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｽﾋﾟ-ｶ)	09/1994 - 08/1996	1
67492-16110	EL5#,NL50	09/1994 - 12/1997	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16230	EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｽﾋﾟ-ｶ)	09/1994 - 08/1996	1
67492-16110	EL5#,NL50	09/1994 - 12/1997	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070	EL5#,NL50	09/1994 - 07/1999	4
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-30070	EL5#,NL50	09/1994 - 07/1999	4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1G030B0	EL53,55,NL50..4DS..(VITX,VX) SHADOW GRAY,TRIM1#	08/1996 - 12/1997	1
67650-16720B0	EL53,55,NL50..4DS..(VITX,VX) BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1G030B0	EL53,55,NL50..4DS..(VITX,VX) SHADOW GRAY,TRIM1#	08/1996 - 12/1997	1
67650-16720B0	EL53,55,NL50..4DS..(VITX,VX) BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67601H - RETAINER, DOOR TRIM, RH
67771-16120	EL5#,NL50..4DS ｸﾞﾚｰ	08/1996 - 12/1997	7
67771-16120	EL5#,NL50..4DS	09/1994 - 08/1996	10
67771-12050	EL5#,NL50 ﾚｯﾄﾞ	08/1996 - 12/1997	3
67601H - RETAINER, DOOR TRIM, RH
67771-16120	EL5#,NL50..4DS ｸﾞﾚｰ	08/1996 - 12/1997	7
67771-16120	EL5#,NL50..4DS	09/1994 - 08/1996	10
67771-12050	EL5#,NL50 ﾚｯﾄﾞ	08/1996 - 12/1997	3
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67050-16080B0	EL53,55,NL50..4DS..(VITX,VX) SHADOW GRAY,TRIM1#	08/1996 - 12/1997	1
67620-1G720B0	EL53,55,NL50..4DS..(VITX,VX) BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67050-16080B0	EL53,55,NL50..4DS..(VITX,VX) SHADOW GRAY,TRIM1#	08/1996 - 12/1997	1
67620-1G720B0	EL53,55,NL50..4DS..(VITX,VX) BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67602A - RETAINER, DOOR TRIM, LH
67771-12050	EL5#,NL50 ﾚｯﾄﾞ	08/1996 - 12/1997	3
67771-16120	EL5#,NL50..4DS ｸﾞﾚｰ	08/1996 - 12/1997	7
67771-16120	EL5#,NL50..4DS	09/1994 - 08/1996	10
67602A - RETAINER, DOOR TRIM, LH
67771-12050	EL5#,NL50 ﾚｯﾄﾞ	08/1996 - 12/1997	3
67771-16120	EL5#,NL50..4DS ｸﾞﾚｰ	08/1996 - 12/1997	7
67771-16120	EL5#,NL50..4DS	09/1994 - 08/1996	10
67651H - GRILLE, SPEAKER DOOR, RH
67651-16070B0	EL5#,NL50 BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67651-16070B1	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67651H - GRILLE, SPEAKER DOOR, RH
67651-16070B0	EL5#,NL50 BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67651-16070B1	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67652C - GRILLE, SPEAKER DOOR, LH
67651-16070B0	EL5#,NL50 BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67651-16070B1	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67652C - GRILLE, SPEAKER DOOR, LH
67651-16070B0	EL5#,NL50 BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
67651-16070B1	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-12050B0	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-12050B0	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-12050B0	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-12050B0	EL5#,NL50 SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-16140	EL5#,NL50..4DS 左側	09/1994 - 08/1996	1
68172-16170	EL5#,NL50..4DS 左側	08/1996 - 12/1997	1
68171-16110	EL5#,NL50..4DS 右側	09/1994 - 08/1996	1
68171-16150	EL5#,NL50..4DS 右側	08/1996 - 12/1997	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68172-16140	EL5#,NL50..4DS 左側	09/1994 - 08/1996	1
68172-16170	EL5#,NL50..4DS 左側	08/1996 - 12/1997	1
68171-16110	EL5#,NL50..4DS 右側	09/1994 - 08/1996	1
68171-16150	EL5#,NL50..4DS 右側	08/1996 - 12/1997	1
Common parts
90164-60008
90189-06018
90189-06205

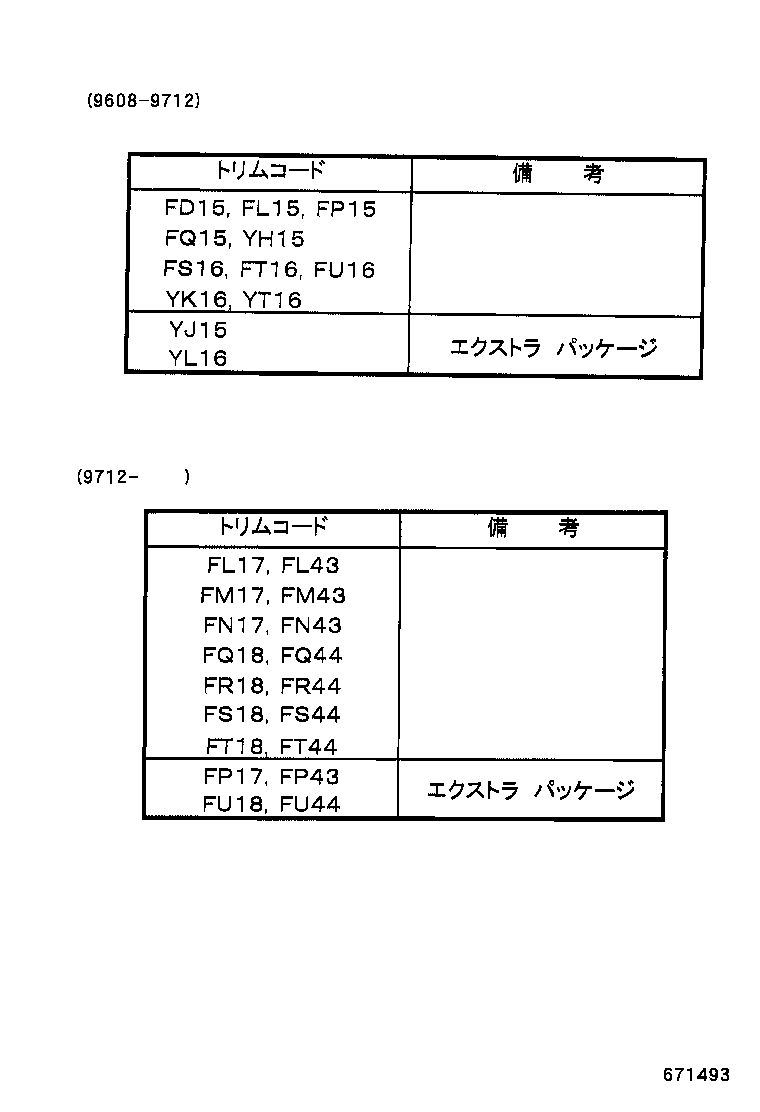

ILLUST NO. 3 OF 3(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
