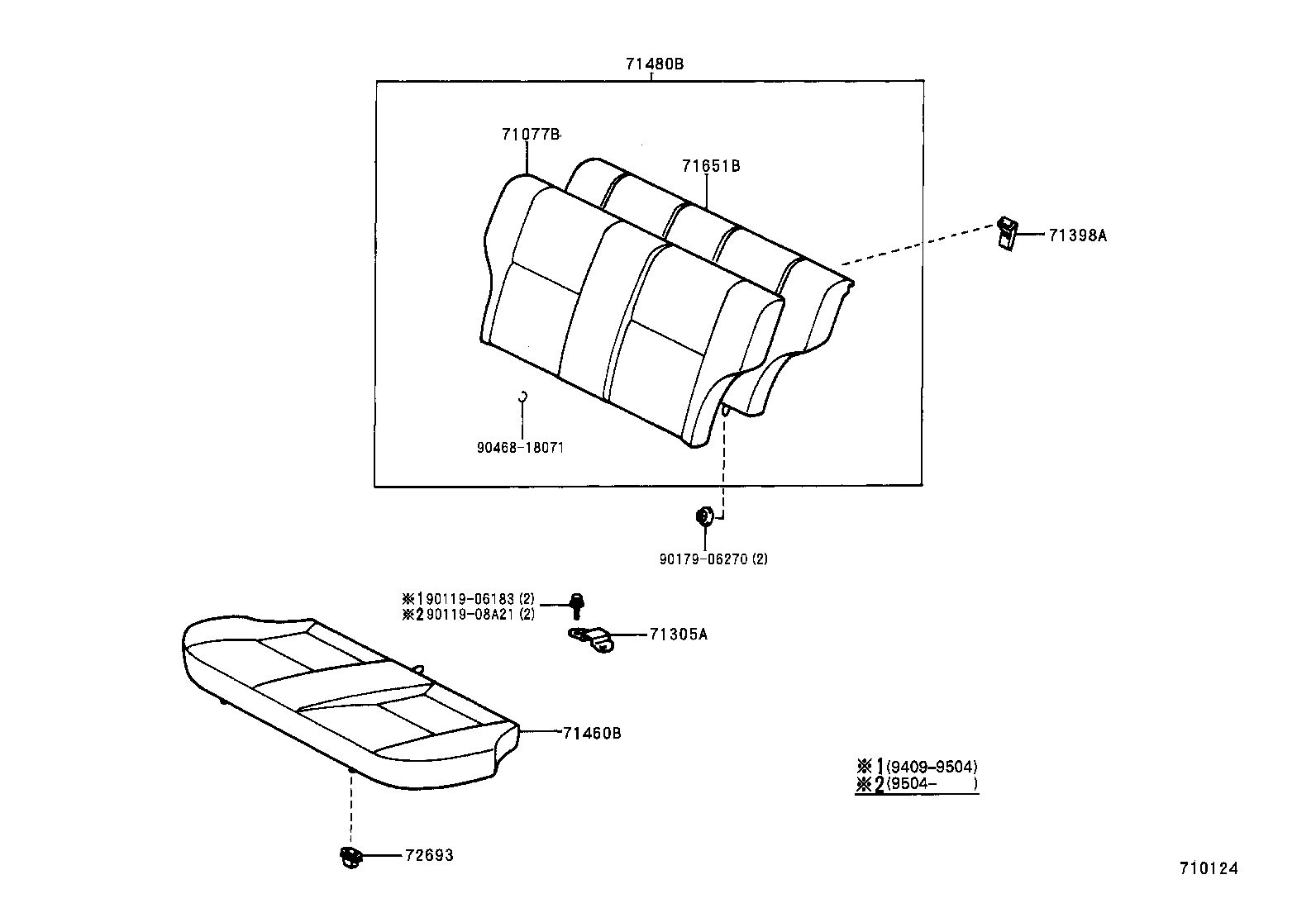

NL50-AEMDX (1994)
Toyota Corsa/Tercel
(9409-9712)4DS..AVE,AX,AXX,JOI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1G710B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S020B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S160B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S160E0 |
EL5#,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71343-16070 |
EL53,55..3DS..VX;EL5#,NL50..AVE,AX,AXX,CYN,JOI,MOA,SOP |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-16840B0 |
EL51,53,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G210B0 |
EL51,53,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G440B0 |
EL51,53,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G440E0 |
EL51,53,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1G810B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S100B0 |
EL5#,NL50..4DS..(AX,JOI) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S210B0 |
EL5#,NL50..4DS..(AX,JOI) ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1S210E0 |
EL5#,NL50..4DS..(AX,JOI) ***,OAK,TRIM4# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-16080 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
1 | ||
| 71507-16060 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
EL5#,NL50 |
2 | ||
| Common parts | ||||
| 90119-06183 | ||||
| 90119-08A21 | ||||
| 90179-06270 | ||||
| 90468-18071 | ||||
(9712- )4DS..AVE,AX,AXX,JOI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1G710B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S020B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S160B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S160E0 |
EL5#,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-16840B0 |
EL51,53,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G210B0 |
EL51,53,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G440B0 |
EL51,53,NL50..4DS..(AX,JOI) SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G440E0 |
EL51,53,NL50..4DS..(AX,JOI) OAK,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1G810B0 |
EL5#,NL50..4DS..(AX,JOI) BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S100B0 |
EL5#,NL50..4DS..(AX,JOI) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S210B0 |
EL5#,NL50..4DS..(AX,JOI) ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1S210E0 |
EL5#,NL50..4DS..(AX,JOI) ***,OAK,TRIM4# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-16080 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
1 | ||
| 71507-16060 |
EL5#,NL50..4DS..(AVE,AX,AXX,JOI) |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010E1 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E0 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010E1 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E0 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010E1 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E0 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-44010E1 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020E0 |
NL50..4DS;EL51..4DS..AVE;EL53,55..3DS..VX;EL5#..AX,AXX,CYN,JOI,MOA ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-16040E1 |
EL5#,NL50..AX,JOI,MOA MD.OAK,TRIM4# |
2 | ||
| 71940-16040B1 |
EL5#,NL50..AX,JOI,MOA BLUE GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-16040E1 |
EL5#,NL50..AX,JOI,MOA MD.OAK,TRIM4# |
2 | ||
| 71940-16040B1 |
EL5#,NL50..AX,JOI,MOA BLUE GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
EL5#,NL50 |
2 | ||
| Common parts | ||||
| 90119-08A21 | ||||
| 90179-06270 | ||||
| 90468-18071 | ||||
