Toyota Corsa/tercel NL50 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
CORSA/TERCEL
NL50-AEMDX (1994)
5201 - FRONT BUMPER & BUMPER STAY

NL50-AEMDX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 1NT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

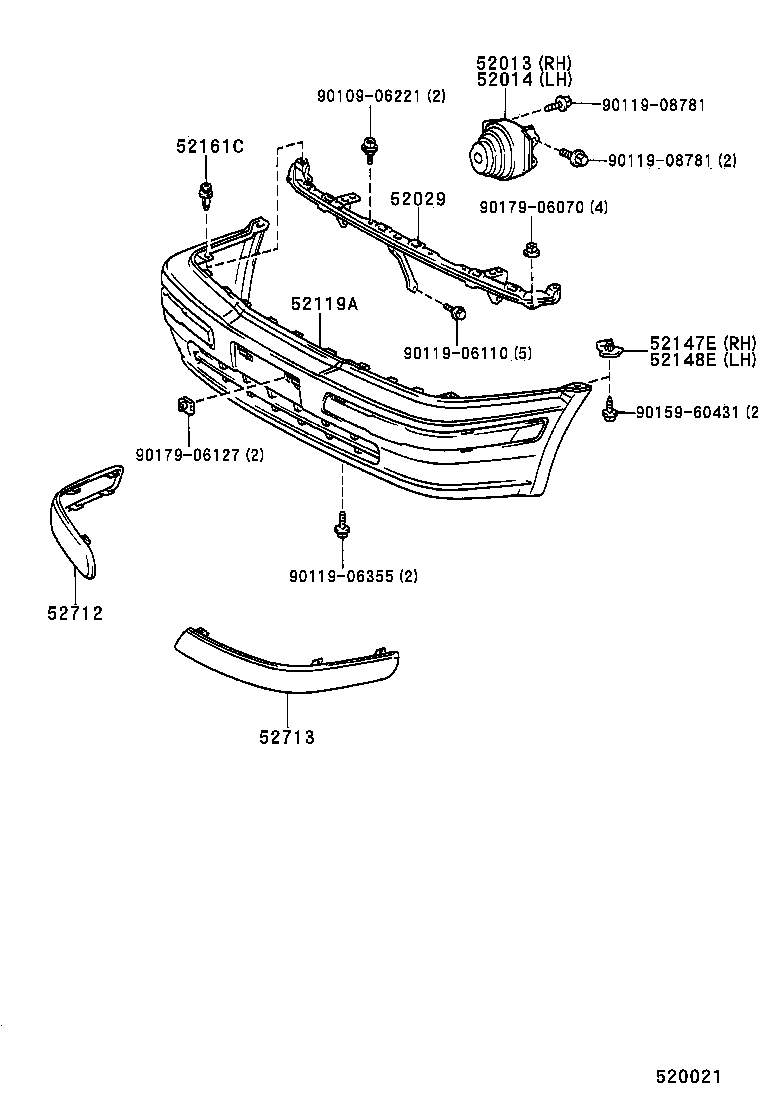

(9409-9608)4DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
52013 - ARM SUB-ASSY, FRONT BUMPER, INNER RH
52013-16010	EL5#,NL50	08/1995 - 08/1996	1
52014 - ARM SUB-ASSY, FRONT BUMPER, INNER LH
52014-16010	EL5#,NL50	08/1995 - 08/1996	1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-16052	EL5#,NL50	12/1997 - 12/2999	1
52029-16050	EL5#,NL50	09/1994 - 12/1997	1
52119A - COVER, FRONT BUMPER
52119-16430B1	EL5#,NL50..4DS WARM GRAY M.M.,1A4	09/1994 - 08/1995	1
52119-16430D1	EL5#,NL50..4DS MAGENTA MC.,3L3	09/1994 - 08/1996	1
52119-16430G1	EL5#,NL50..4DS LT.GREEN ME.,6N8	09/1994 - 08/1996	1
52119-16430A0	EL5#,NL50..4DS SUPER WHITE 2,040	09/1994 - 12/1997	1
52119-16430G2	EL5#,NL50..4DS GREEN M.M.,6P6	08/1996 - 12/1997	1
52119-16430J2	EL5#,NL50..4DS DK.BLUE M.M.,8L3	08/1996 - 12/1997	1
52119-16430B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	09/1994 - 12/1997	1
52119-16430G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	09/1994 - 12/1997	1
52119-16510J0	EL5#,NL50..4DS DK.BLUE M.M.,8L3	12/1997 - 12/2999	1
52119-16430J1	EL5#,NL50..4DS LT.PURPLISH BLUE MM,8K1	08/1996 - 12/1997	1
52119-16510J1	EL5#,NL50..4DS BLUE M.M.,8M5	12/1997 - 12/2999	1
52119-16510G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	12/1997 - 12/2999	1
52119-16510G1	EL5#,NL50..4DS GREEN M.M.,6P6	12/1997 - 12/2999	1
52119-16430J0	EL5#,NL50..4DS DK.BLUE M.M.,8K0	09/1994 - 08/1996	1
52119-16510A0	EL5#,NL50..4DS SUPER WHITE 2,040	12/1997 - 12/2999	1
52119-16510B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	12/1997 - 12/2999	1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	EL5#,NL50	09/1994 - 12/1997	2
52161-16010	EL5#,NL50..4DS	12/1997 - 12/2999	2
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52712-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
52712-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52712-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713 - PLUG, FRONT BUMPER MOULDING
52713-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52713-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52713-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
Common parts
90109-06221
90119-06110
90119-06355
90119-08781
90159-60431
90179-06070
90179-06127

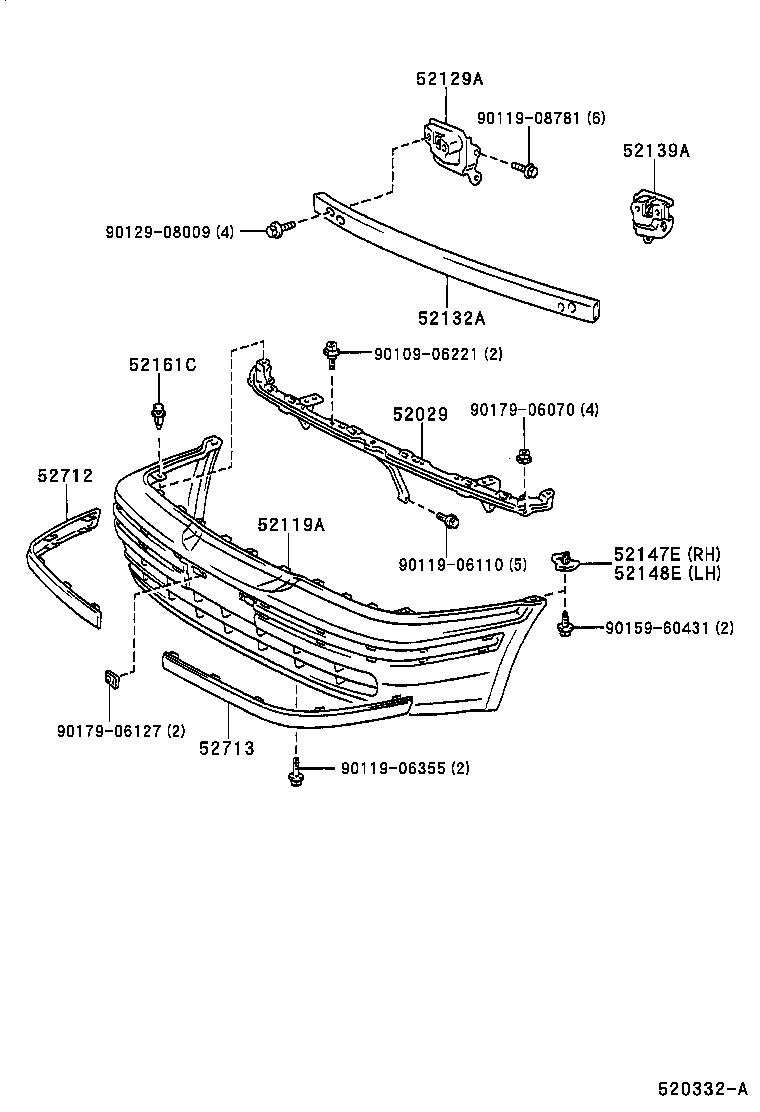

(9608-9712)4DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-16052	EL5#,NL50	12/1997 - 12/2999	1
52029-16050	EL5#,NL50	09/1994 - 12/1997	1
52119A - COVER, FRONT BUMPER
52119-16430B1	EL5#,NL50..4DS WARM GRAY M.M.,1A4	09/1994 - 08/1995	1
52119-16430D1	EL5#,NL50..4DS MAGENTA MC.,3L3	09/1994 - 08/1996	1
52119-16430G1	EL5#,NL50..4DS LT.GREEN ME.,6N8	09/1994 - 08/1996	1
52119-16430A0	EL5#,NL50..4DS SUPER WHITE 2,040	09/1994 - 12/1997	1
52119-16430G2	EL5#,NL50..4DS GREEN M.M.,6P6	08/1996 - 12/1997	1
52119-16430J2	EL5#,NL50..4DS DK.BLUE M.M.,8L3	08/1996 - 12/1997	1
52119-16430B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	09/1994 - 12/1997	1
52119-16430G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	09/1994 - 12/1997	1
52119-16510J0	EL5#,NL50..4DS DK.BLUE M.M.,8L3	12/1997 - 12/2999	1
52119-16430J1	EL5#,NL50..4DS LT.PURPLISH BLUE MM,8K1	08/1996 - 12/1997	1
52119-16510J1	EL5#,NL50..4DS BLUE M.M.,8M5	12/1997 - 12/2999	1
52119-16510G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	12/1997 - 12/2999	1
52119-16510G1	EL5#,NL50..4DS GREEN M.M.,6P6	12/1997 - 12/2999	1
52119-16430J0	EL5#,NL50..4DS DK.BLUE M.M.,8K0	09/1994 - 08/1996	1
52119-16510A0	EL5#,NL50..4DS SUPER WHITE 2,040	12/1997 - 12/2999	1
52119-16510B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	12/1997 - 12/2999	1
52129A - ARM, FRONT BUMPER, UPPER NO.2 RH
52129-16010	EL5#,NL50	08/1996 - 12/2999	1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-16070	EL5#,NL50	12/1997 - 12/2999	1
52132-16060	EL5#,NL50	08/1996 - 12/1997	1
52139A - ARM, FRONT BUMPER, UPPER NO.2 LH
52139-16010	EL5#,NL50	08/1996 - 12/2999	1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	EL5#,NL50	09/1994 - 12/1997	2
52161-16010	EL5#,NL50..4DS	12/1997 - 12/2999	2
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52712-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
52712-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52712-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713 - PLUG, FRONT BUMPER MOULDING
52713-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52713-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52713-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
Common parts
90109-06221
90119-06110
90119-06355
90119-08781
90129-08009
90159-60431
90179-06070
90179-06127

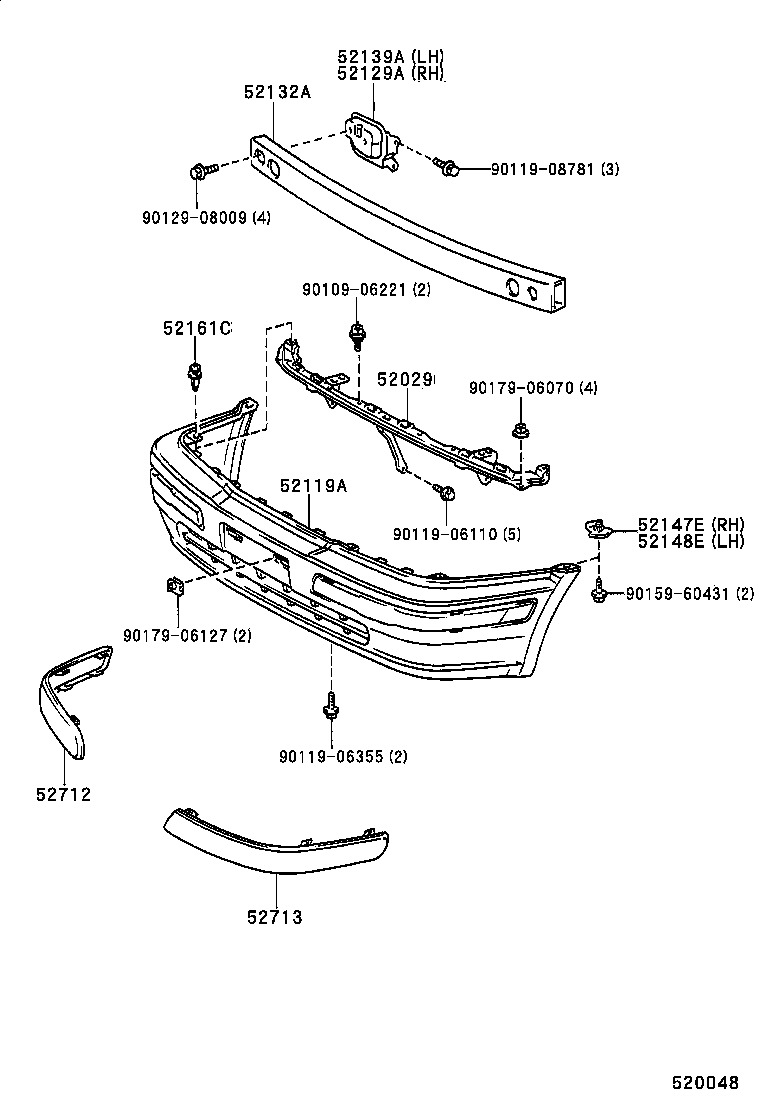

(9712- )4DS

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-16052	EL5#,NL50	12/1997 - 12/2999	1
52029-16050	EL5#,NL50	09/1994 - 12/1997	1
52119A - COVER, FRONT BUMPER
52119-16430B1	EL5#,NL50..4DS WARM GRAY M.M.,1A4	09/1994 - 08/1995	1
52119-16430D1	EL5#,NL50..4DS MAGENTA MC.,3L3	09/1994 - 08/1996	1
52119-16430G1	EL5#,NL50..4DS LT.GREEN ME.,6N8	09/1994 - 08/1996	1
52119-16430A0	EL5#,NL50..4DS SUPER WHITE 2,040	09/1994 - 12/1997	1
52119-16430G2	EL5#,NL50..4DS GREEN M.M.,6P6	08/1996 - 12/1997	1
52119-16430J2	EL5#,NL50..4DS DK.BLUE M.M.,8L3	08/1996 - 12/1997	1
52119-16430B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	09/1994 - 12/1997	1
52119-16430G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	09/1994 - 12/1997	1
52119-16510J0	EL5#,NL50..4DS DK.BLUE M.M.,8L3	12/1997 - 12/2999	1
52119-16430J1	EL5#,NL50..4DS LT.PURPLISH BLUE MM,8K1	08/1996 - 12/1997	1
52119-16510J1	EL5#,NL50..4DS BLUE M.M.,8M5	12/1997 - 12/2999	1
52119-16510G0	EL5#,NL50..4DS DK.GREEN M.M.,6N7	12/1997 - 12/2999	1
52119-16510G1	EL5#,NL50..4DS GREEN M.M.,6P6	12/1997 - 12/2999	1
52119-16430J0	EL5#,NL50..4DS DK.BLUE M.M.,8K0	09/1994 - 08/1996	1
52119-16510A0	EL5#,NL50..4DS SUPER WHITE 2,040	12/1997 - 12/2999	1
52119-16510B0	EL5#,NL50..4DS BLUISH SILVER ME.,1A0	12/1997 - 12/2999	1
52129A - ARM, FRONT BUMPER, UPPER NO.2 RH
52129-16010	EL5#,NL50	08/1996 - 12/2999	1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-16070	EL5#,NL50	12/1997 - 12/2999	1
52132-16060	EL5#,NL50	08/1996 - 12/1997	1
52139A - ARM, FRONT BUMPER, UPPER NO.2 LH
52139-16010	EL5#,NL50	08/1996 - 12/2999	1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080	EL5#,NL50	09/1994 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-16010	EL5#,NL50	09/1994 - 12/1997	2
52161-16010	EL5#,NL50..4DS	12/1997 - 12/2999	2
52712 - MOULDING, FRONT BUMPER SIDE, RH
52712-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52712-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
52712-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52712-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713 - PLUG, FRONT BUMPER MOULDING
52713-16010	EL5#,NL50..4DS	09/1994 - 08/1996	1
52713-16070B0	EL5#,NL50..4DS DK.GRAY ME.,6N7 ,8L3 ,8M5	12/1997 - 12/2999	1
52713-16030	EL5#,NL50..4DS	08/1996 - 12/1997	1
52713-16070B2	EL5#,NL50..4DS GRAY MM,040 ,1A0 ,6P6	12/1997 - 12/2999	1
Common parts
90109-06221
90119-06110
90119-06355
90119-08781
90129-08009
90159-60431
90179-06070
90179-06127
