NL50-AEMDX (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )NL50

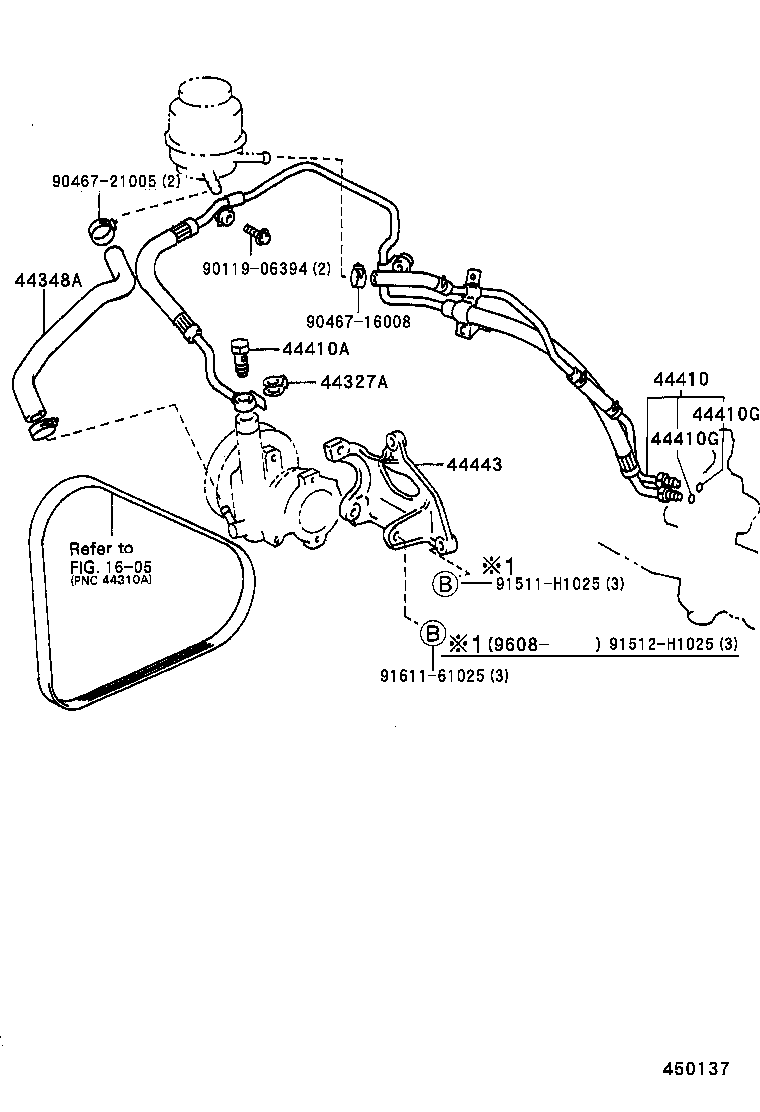

Click highlighted areas on diagram

diagram 1605 44327A 44348A 44410 44410A 44410G 44410G 44443 9011906394 9046716008 9046721005 91511H1025 91512H1025 9161161025
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

EL5#,NL50

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-10071

NL50

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-10151

NL50

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16012

EL5#,NL50

 1
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

EL5#,NL50

 2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009

EL5#,NL50

 2
44443 - BRACKET, PUMP
44443-16030

NL50

 1
Common parts
90119-06394
90467-16008
90467-21005
91511-H1025
91512-H1025
91611-61025
Linked diagrams
1605
