NL40-BGPDX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )1NT

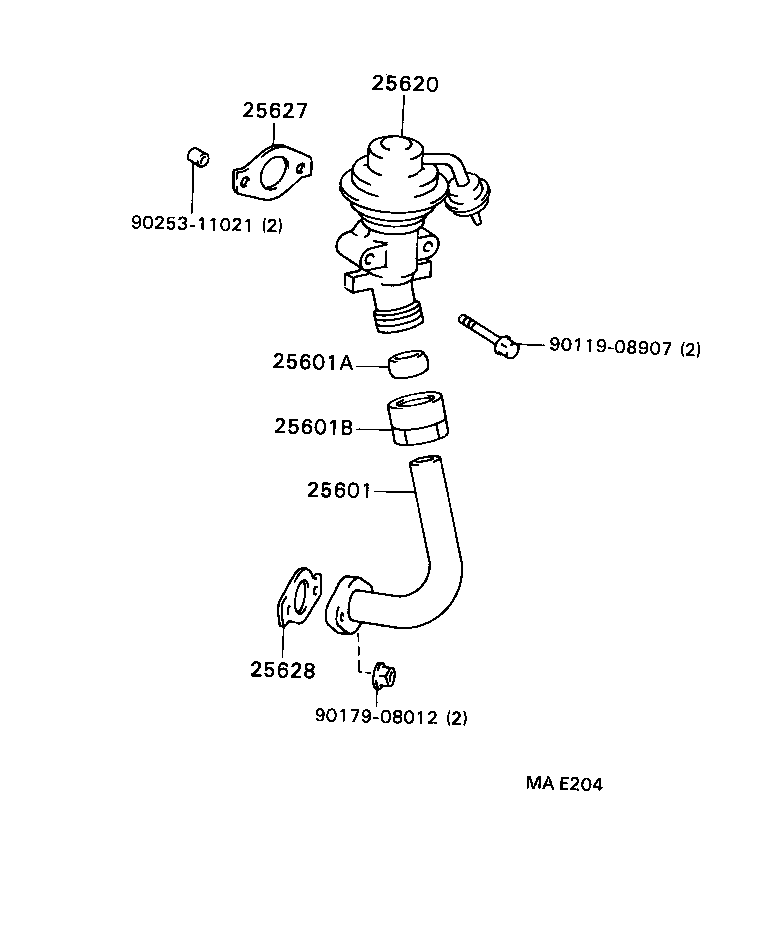

Click highlighted areas on diagram

diagram 25601 25601A 25601B 25620 25627 25628 9011908907 9017908012 9025311021
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-55010

1NT..NL40..4FC

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-22001

1NT..NL40..4FC

 1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-30002

1NT..NL40..4FC

 1
25620 - VALVE ASSY, EGR
25620-55010

1NT..NL40..4FC

 1
25627 - GASKET, EGR VALVE
25627-55010

1NT..NL40..4FC

 1
25628 - GASKET, EGR INLET
25628-64030

1NT..NL40..4FC

 1
Common parts
90119-08907
90179-08012
90253-11021
