NL40-BGPDX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )1NT

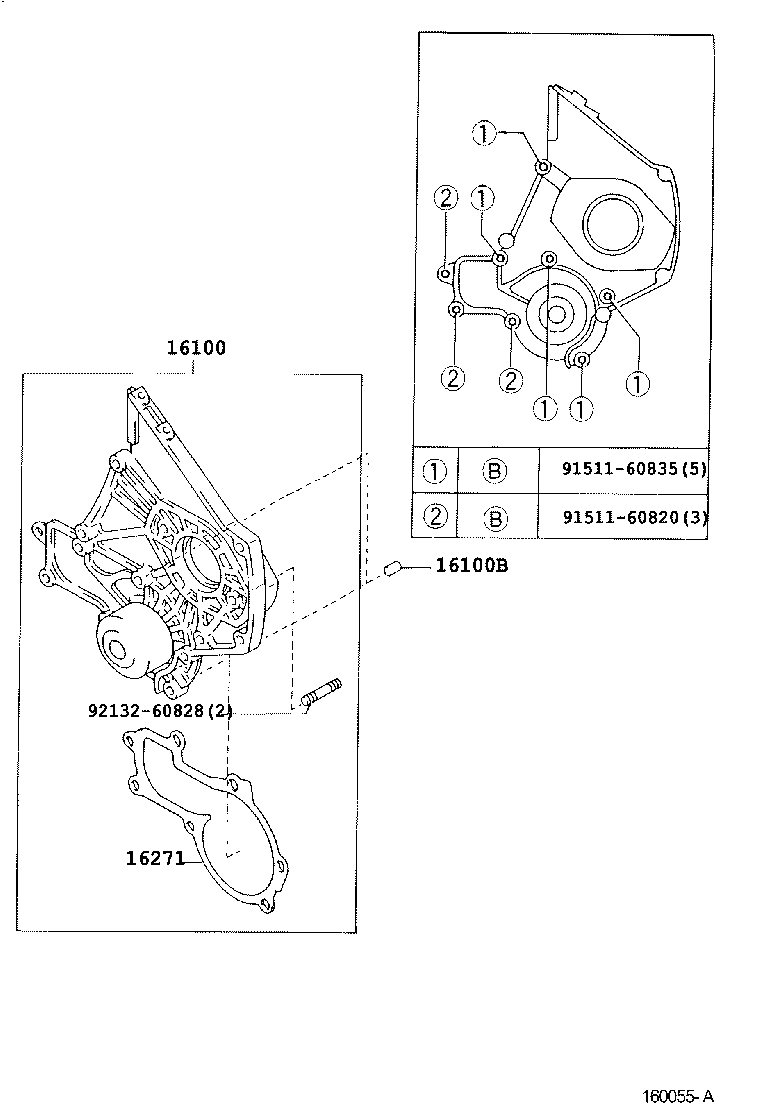

Click highlighted areas on diagram

diagram 16100 16100B 16271 9151160820 9151160835 9213260828
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-55011

1NT..NL40

 1
16100B - PIN, RING(FOR WATER PUMP SET)
90253-11021

1NT..NL40

 2
16271 - GASKET, WATER PUMP
16271-55010

1NT..NL40

 1
Common parts
91511-60820
91511-60835
92132-60828
