NL40-BEPNX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )4DS

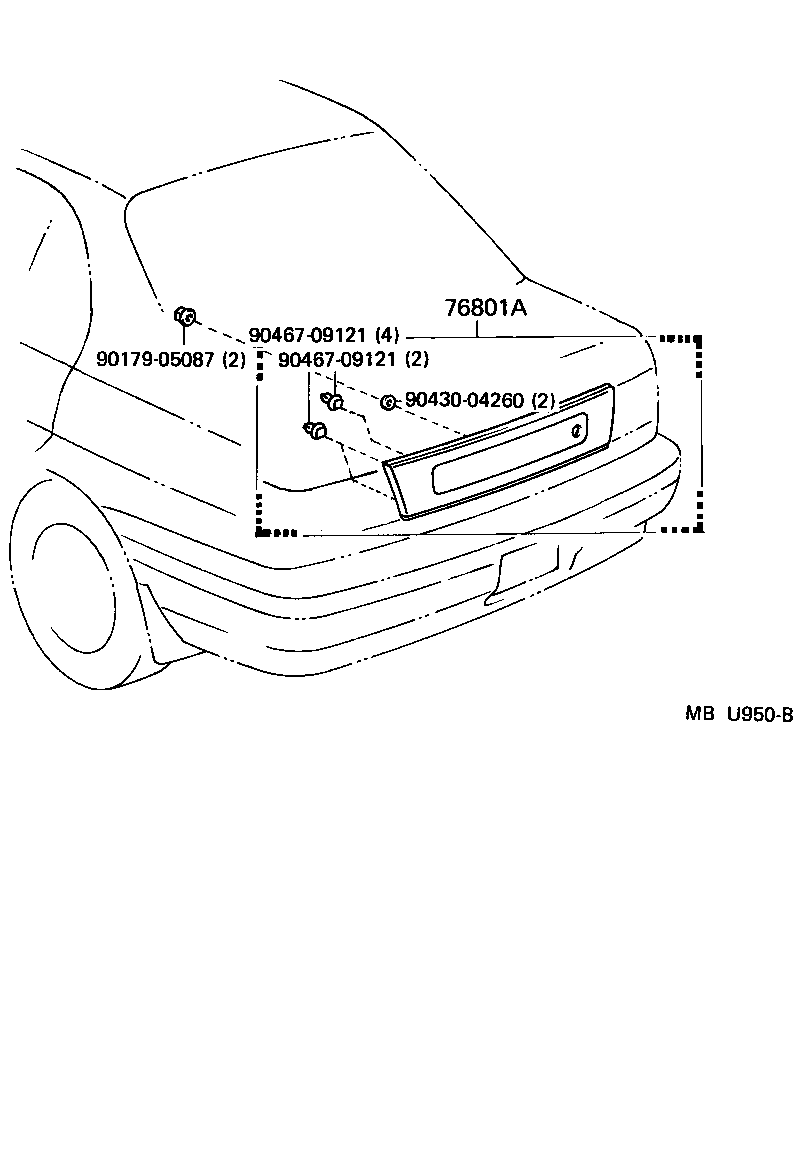

Click highlighted areas on diagram

diagram 76801A 9017905087 9043004260 9046709121 9046709121
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-16241

EL4#,NL40..AX,AXX,VIT,VITX,VITZ

 1
76801-16240

EL4#,NL40..AX,AXX,VIT,VITX,VITZ

 1
76801-16260

EL4#,NL40..AXX,VIT,VITX,VITZ

 1
76801-16260

EL41,NL40..AX

AX ｽﾍﾟｼﾔﾙ

 1
Common parts
90179-05087
90430-04260
90467-09121
