NL40-BEPNX (1990)
Toyota Corsa/Tercel
ILLUST NO. 1 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16491 |
EL4#,NL40..4DS |
1 | ||
| 67001-16490 |
EL4#,NL40..4DS |
1 | ||
| 67001-16561 |
EL4#,NL40..4DS |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09079 |
EL4#,NL40..4DS |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16430 |
EL4#,NL40..4DS |
1 | ||
| 67002-16431 |
EL4#,NL40..4DS |
1 | ||
| 67002-16501 |
EL4#,NL40..4DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16250 |
EL4#,NL40..4DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16210 |
EL4#,NL40..4DS |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16100 |
EL4#,NL40..4DS |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16100 |
EL4#,NL40..4DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16210 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67491-16130 |
EL4#,NL40..4DS |
1 | ||
| 67491-16210 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16210 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67492-16130 |
EL4#,NL40..4DS |
1 | ||
| 67492-16210 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16080 |
EL4#,NL40..4DS |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-16080 |
EL4#,NL40..4DS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
EL4#,NL40..4DS |
2 | ||
| 67499-16010 |
EL4#,NL40 |
2 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-16050 |
EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 67533-16050 |
EL43,45;EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67533-16050 |
EL43,45;EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX |
1 | ||
| 67533-16050 |
EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16270 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 67831-16280 |
EL41,NL40..4DS..(AX,JOI,TX,VC) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67831-16340 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 67831-16350 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67831-16280 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ OR ｽﾋﾟ-ｶ) |
1 | ||
| 67831-16350 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-16150 |
EL41,NL40..4DS..(AX,JOI,TX,VC) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16140 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 67832-16150 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ OR ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16210 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67832-16220 |
EL41,NL40..4DS..(AX,JOI,TX,VC) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16200 |
EL41,NL40..4DS..(AX,JOI,TX,VC) ｱﾘ(1 ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16220 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT) ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16210 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & 1 ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16200 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 67832-16230 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16220 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 67832-16230 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67837F - SEAL, DOOR DUST PROOF | ||||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16270 |
EL4#,NL40..4DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16270 |
EL4#,NL40..4DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
EL4#,NL40..4DS |
16 | ||
| 67868-20130 |
EL4#,NL40..4DS |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-20130 |
EL4#,NL40..4DS |
16 | ||
| 67868-30050 |
EL4#,NL40..4DS |
16 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-16040 |
EL41,NL40..4DS..(AX,JOI,TX,VC) *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68110-16040 |
EL41,43,NL40..4DS..(AX,JOI,TX,VC,VE,VIT) *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68110-16050 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68110-16050 |
EL4#,NL40..4DS..(AVE,AXX,VITX,VITZ,VX,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-16050 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68120-16040 |
EL41,NL40..4DS..(AX,JOI,TX,VC) *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68120-16050 |
EL4#,NL40..4DS..(AVE,AXX,VITX,VITZ,VX,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68120-16040 |
EL41,43,NL40..4DS..(AX,JOI,TX,VC,VE,VIT) *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-16190 |
EL4#,NL40..4DS |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-16020 |
EL4#,NL40..4DS |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16050 |
EL4#,NL40..4DS |
2 | ||
| 68610-16070 |
EL4#,NL40..4DS |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
EL4#,NL40 |
2 | ||
| 75739A - MOULDING DOOR EDGE | ||||
| 75739-30030 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90119-06383 | ||||
| 90333-35004 | ||||
| 90950-01110 | ||||
| 90950-01269 | ||||
| 91621-40608 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

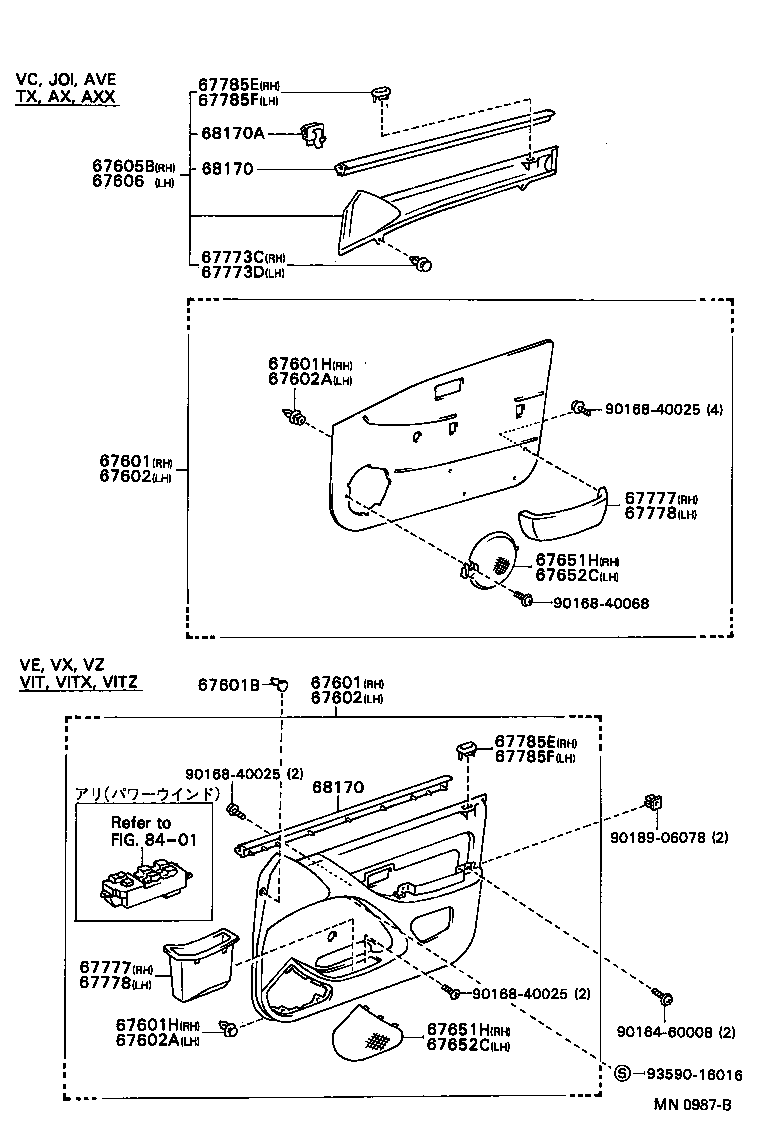

ILLUST NO. 2 OF 3(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1619004 |
EL41,NL40..4DS..(AX,JOI) GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1616003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-1616004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1616007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-1619001 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67650-1621003 |
EL41,45,NL40..4DS..(AVE,AXX) BLACK,TRIM2# |
1 | ||
| 67650-1621007 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67650-1619007 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-1621004 |
EL41,45,NL40..4DS..(AVE,AXX) GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-16420G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16190G1 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-16160C0 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM2# |
1 | ||
| 67650-16160J1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67650-16210J1 |
EL41,45,NL40..4DS..(AVE,AXX) EISEN BLUE,TRIM8# |
1 | ||
| 67650-16160G1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16190G2 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-16190C1 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67650-16210C0 |
EL41,45,NL40..4DS..(AVE,AXX) GRAY,TRIM2# |
1 | ||
| 67650-16190J1 |
EL41,NL40..4DS..(AX,JOI) EISEN BLUE,TRIM8# |
1 | ||
| 67650-16420J1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67650-16210G1 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67650-16420C1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-16420G2 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1616003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-1616004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1616007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-1619001 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67650-1619004 |
EL41,NL40..4DS..(AX,JOI) GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1621003 |
EL41,45,NL40..4DS..(AVE,AXX) BLACK,TRIM2# |
1 | ||
| 67650-1621007 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67650-1619007 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-1621004 |
EL41,45,NL40..4DS..(AVE,AXX) GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-16420G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16190G1 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-16160C0 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM2# |
1 | ||
| 67650-16160J1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67650-16210J1 |
EL41,45,NL40..4DS..(AVE,AXX) EISEN BLUE,TRIM8# |
1 | ||
| 67650-16160G1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16190G2 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67650-16190C1 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67650-16210C0 |
EL41,45,NL40..4DS..(AVE,AXX) GRAY,TRIM2# |
1 | ||
| 67650-16190J1 |
EL41,NL40..4DS..(AX,JOI) EISEN BLUE,TRIM8# |
1 | ||
| 67650-16420J1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67650-16210G1 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67650-16420C1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-16420G2 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||

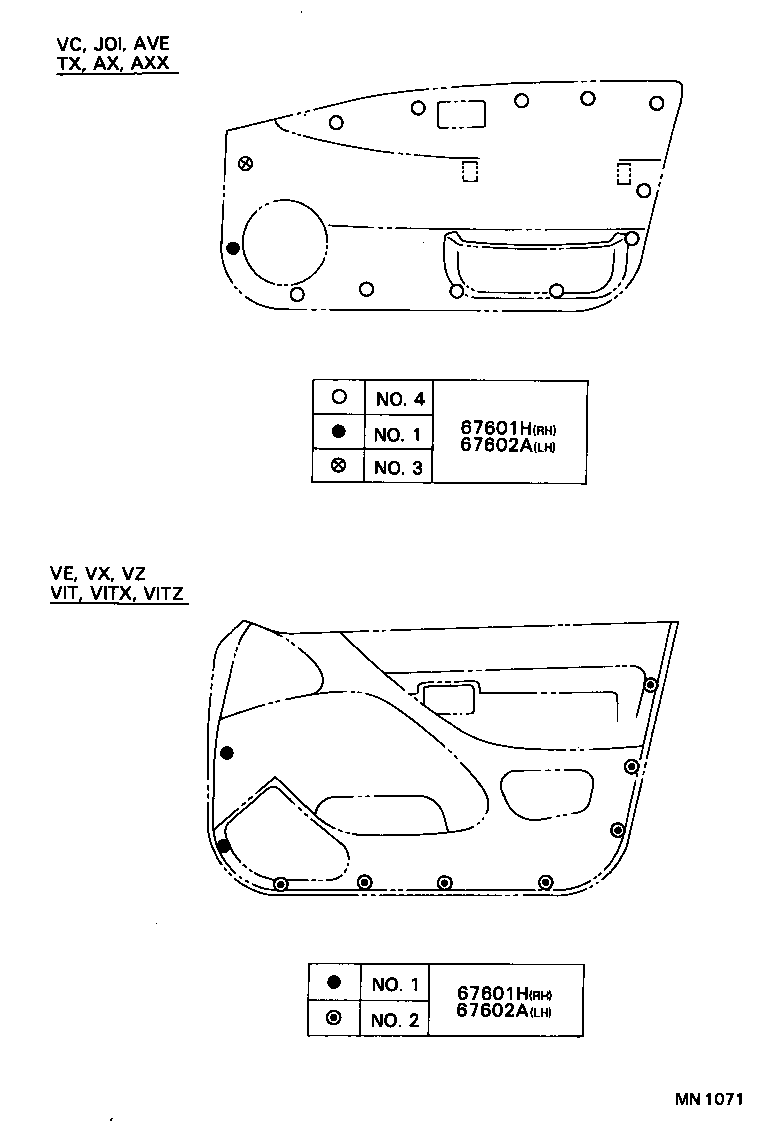

| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1G18004 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G18007 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G18001 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G27003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G28003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G27007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G27004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G28007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G28004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G11003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G11004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G11007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G13007 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67620-1G15004 |
EL41,45,NL40..4DS..(AVE,AXX) GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G13004 |
EL41,NL40..4DS..(AX,JOI) GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G13001 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67620-1G15007 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67620-1G390G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G130G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾗｼﾞｵ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G15003 |
EL41,45,NL40..4DS..(AVE,AXX) BLACK,TRIM2# |
1 | ||
| 67620-1G130C1 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67620-1G130G2 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67620-1G270G1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G270J1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G280G2 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67620-1G280C1 |
EL41,45,NL40..4DS..(AVE,AXX) GRAY,TRIM2# |
1 | ||
| 67620-1G130J1 |
EL41,NL40..4DS..(AX,JOI) EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G270C0 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM2# |
1 | ||
| 67620-1G280J2 |
EL41,45,NL40..4DS..(AVE,AXX) EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G390G2 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G390C1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G390J1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1G18004 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G18007 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G18001 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G27003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G28003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),BLACK,TRIM2# |
1 | ||
| 67620-1G27007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G27004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G28007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G28004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ｽﾋﾟ-ｶ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G11003 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G11004 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G11007 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G13007 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67620-1G15004 |
EL41,45,NL40..4DS..(AVE,AXX) GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G13004 |
EL41,NL40..4DS..(AX,JOI) GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-1G13001 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67620-1G15007 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67620-1G390G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G130G1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾗｼﾞｵ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G15003 |
EL41,45,NL40..4DS..(AVE,AXX) BLACK,TRIM2# |
1 | ||
| 67620-1G130C1 |
EL41,NL40..4DS..(AX,JOI) BLACK,TRIM2# |
1 | ||
| 67620-1G130G2 |
EL41,NL40..4DS..(AX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67620-1G270G1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G270J1 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G280G2 |
EL41,45,NL40..4DS..(AVE,AXX) SPRUCE,TRIM6# |
1 | ||
| 67620-1G280C1 |
EL41,45,NL40..4DS..(AVE,AXX) GRAY,TRIM2# |
1 | ||
| 67620-1G130J1 |
EL41,NL40..4DS..(AX,JOI) EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G270C0 |
EL41,45,NL40..4DS..(AVE,AXX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),GRAY,TRIM2# |
1 | ||
| 67620-1G280J2 |
EL41,45,NL40..4DS..(AVE,AXX) EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G390G2 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G390C1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G390J1 |
EL41,NL40..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67605B - BASE SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67605-1643001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 67605-1643007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67605-16430G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67605-16430J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 67605-1643004 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 67605-16430C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 67606 - BASE SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67606-1643004 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 67606-16430C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 67606-1643007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67606-1643001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 67606-16430J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 67606-16430G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1605001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-1605004 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC EISEN BLUE,TRIM8# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1605001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-1605004 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC EISEN BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-1605004 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC EISEN BLUE,TRIM8# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-1605004 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC EISEN BLUE,TRIM8# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2# |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-16050 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 67773D - CLIP, DOOR TRIM UPPER RETAINER, NO.2 | ||||
| 67773-16050 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1005001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-1005007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP EISEN BLUE,TRIM8# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1005001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-1005007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP EISEN BLUE,TRIM8# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1005007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-1005001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP EISEN BLUE,TRIM8# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1005007 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6# |
1 | ||
| 67777-1005001 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP EISEN BLUE,TRIM8# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP BLACK,TRIM2# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-1001001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-10010J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 69751-1001014 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 69751-1001007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 69751-10010C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-10010G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-1001001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-10010J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 69751-1001014 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 69751-1001007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 69751-10010C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-10010G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-10010C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-1001014 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 69751-1001001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-1001007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 69751-10010J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 69751-10010G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-10010C0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-1001014 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) GRAYISH BLUE,TRIM8# |
1 | ||
| 69751-1001001 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) BLACK,TRIM2# |
1 | ||
| 69751-1001007 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 69751-10010J0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) EISEN BLUE,TRIM8# |
1 | ||
| 69751-10010G0 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI) SPRUCE,TRIM6# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16090 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) 右側 |
1 | ||
| 68172-16110 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) 左側 |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-16090 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) 右側 |
1 | ||
| 68172-16110 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) 左側 |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-16090 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) |
12 | ||
| 68211-16090 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) |
10 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90168-40068 | ||||
| 90189-06078 | ||||
| 93590-16016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
9 | ||
| 67771-16170 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.4 |
11 | ||
| 67771-16160 |
EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC) NO.1 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
