NL40-BEPDX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )4DS

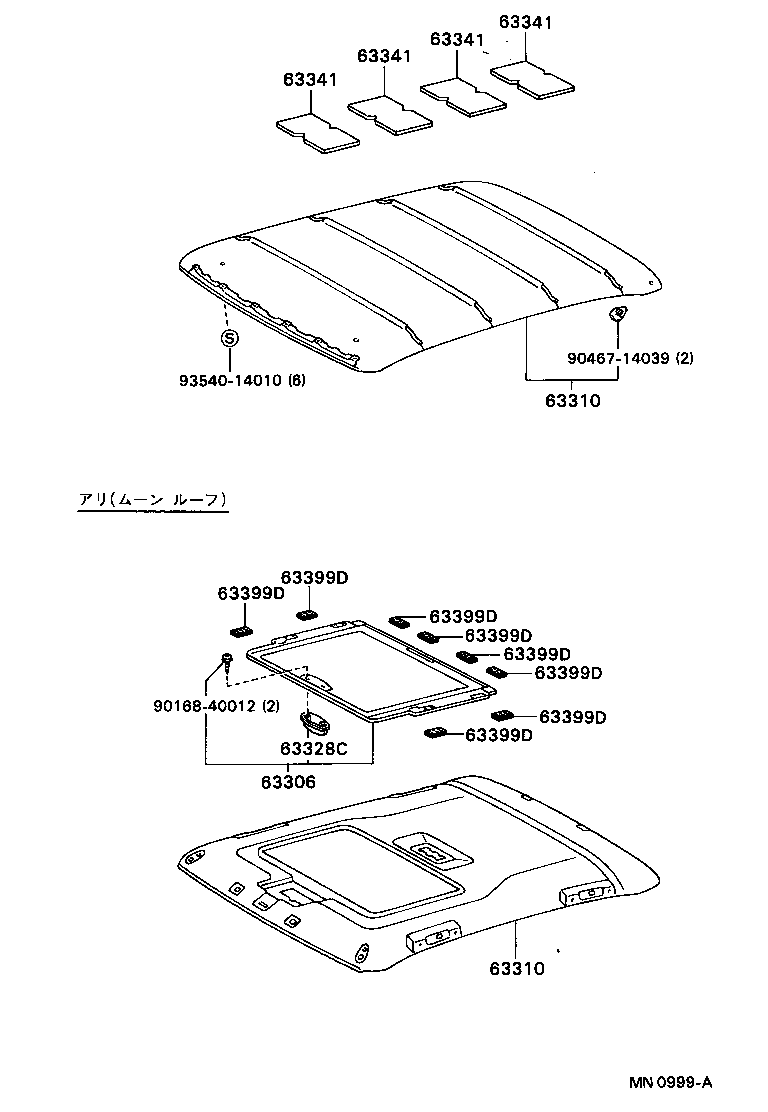

Click highlighted areas on diagram

diagram 63306 63310 63310 63328C 63341 63341 63341 63341 63399D 63399D 63399D 63399D 63399D 63399D 63399D 63399D 9016840012 9046714039 9354014010
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-1634007

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

SPRUCE,TRIM6#

 1
63310-1634004

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

GRAYISH BLUE,TRIM8#

 1
63310-1634003

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

GRAY,TRIM2#

 1
63310-16340S3

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.GRAY,TRIM2#

 1
63310-16340G0

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.SPRUCE,TRIM6#

 1
63310-16340W7

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.BLUE,TRIM8#

 1
63310 - HEADLINING ASSY, ROOF
63310-1634007

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

SPRUCE,TRIM6#

 1
63310-1634004

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

GRAYISH BLUE,TRIM8#

 1
63310-1634003

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

GRAY,TRIM2#

 1
63310-16340S3

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.GRAY,TRIM2#

 1
63310-16340G0

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.SPRUCE,TRIM6#

 1
63310-16340W7

EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT)

LI.BLUE,TRIM8#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL4#,NL40..4DS

 3
63341-16010

EL4#,NL40..4DS

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL4#,NL40..4DS

 3
63341-16010

EL4#,NL40..4DS

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL4#,NL40..4DS

 3
63341-16010

EL4#,NL40..4DS

 4
63341 - PAD, ROOF SILENCER, NO.1
63341-16010

EL4#,NL40..4DS

 3
63341-16010

EL4#,NL40..4DS

 4
Common parts
90168-40012
90467-14039
93540-14010
