NL40-BEPDX (1990)
Toyota Corsa/Tercel
Production
Sep 1990
-
Sep 1994
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )1NT

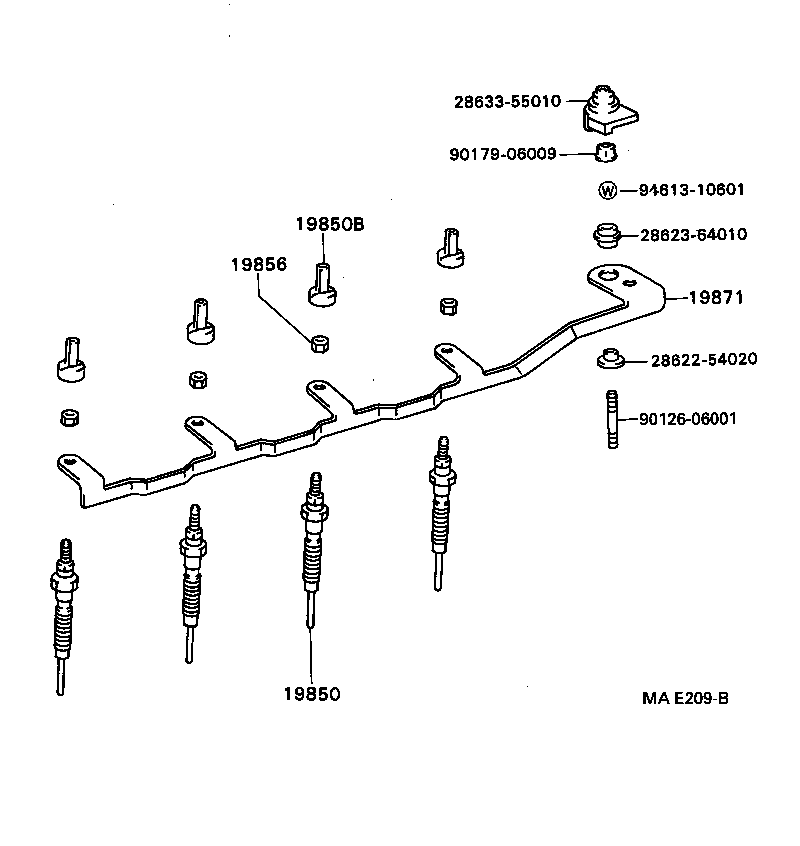

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19850 - PLUG ASSY, GLOW | ||||
| 19850-54090 |
1NT..NL40 *BV−GV=12V−11V |
4 | ||
| 19850B - GROMMET, SCREW(FOR GLOW PLUG) | ||||
| 90189-04024 |
1NT..NL40 |
4 | ||
| 19856 - NUT, CONNECTING(FOR GLOW PLUG) | ||||
| 90170-04002 |
1NT..NL40 |
4 | ||
| 19871 - CONNECTOR, GLOW PLUG NO.1 | ||||
| 19871-55020 |
1NT..NL40 |
1 | ||
| Common parts | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 28633-55010 | ||||
| 90126-06001 | ||||
| 90179-06009 | ||||
| 94613-10601 | ||||
