NL40-AGPDX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )3DS

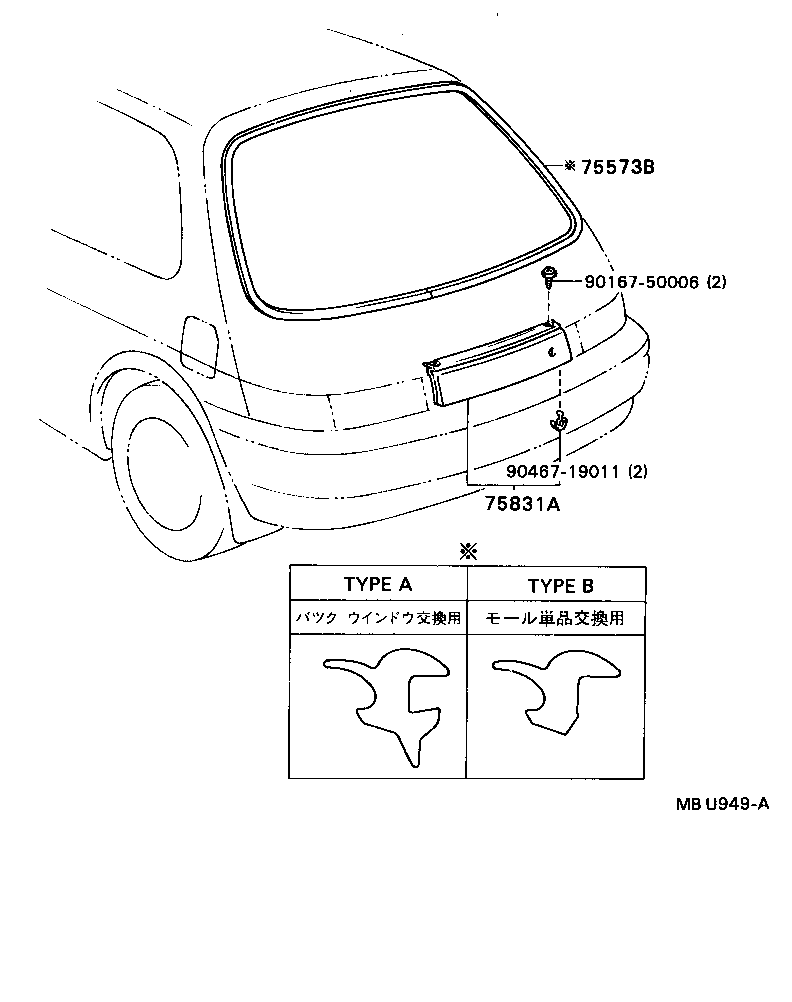

Click highlighted areas on diagram

diagram 75573B 75831A 9016750006 9046719011
Part # Description Qty Price
75573B - MOULDING, BACK WINDOW, OUTSIDE
75573-16040

EL4#,NL40..3DS

ﾀｲﾌﾟ B

 1
75573-16020

EL4#,NL40..3DS

ﾀｲﾌﾟ A

 1
75831A - PANEL, LOWER BACK FINISH, CENTER
75082-16160

EL4#,NL40..TER..3DS

 1
75082-16190

EL4#,NL40..TER..3DS

 1
Common parts
90167-50006
90467-19011
