NL40-AEPXX (1990)
Toyota Corsa/Tercel
(9009- )ATM
A132,A242L,A244L,A244E,A244F

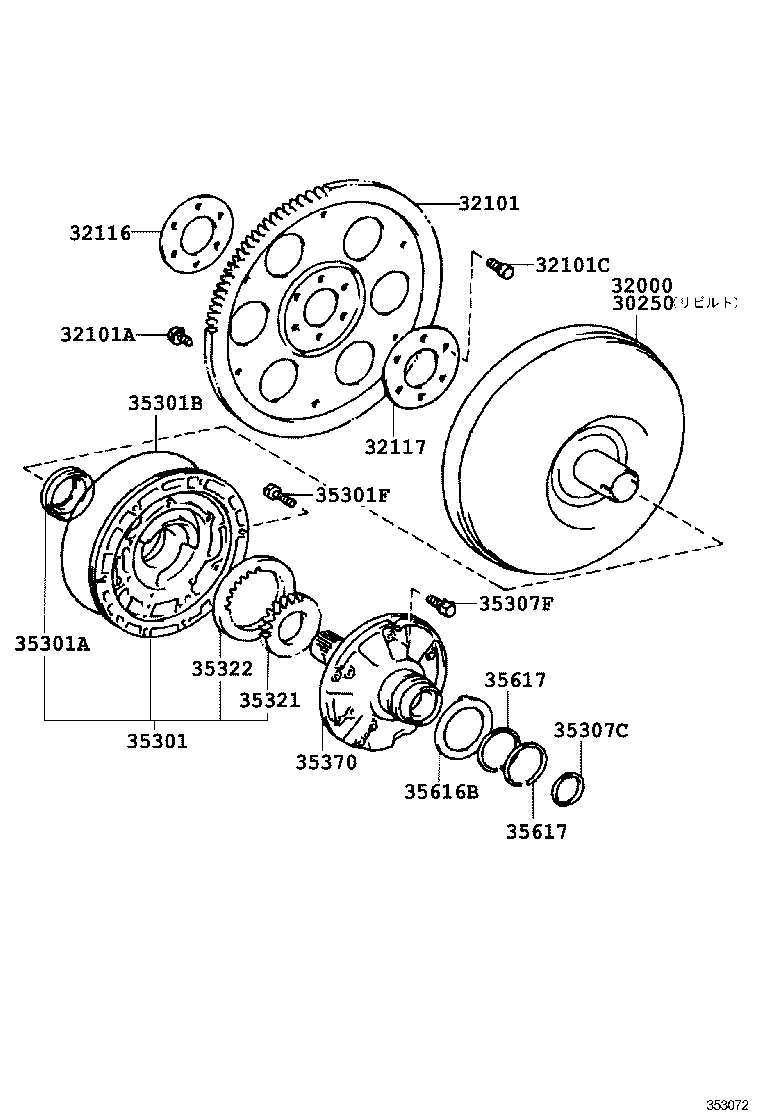

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30250 - CONVERTER ASSY, TORQUE, REBUILT | ||||
| 30250-12190 |
NL40..4FC |
1 | ||
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-12190 |
NL40..4FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-16030 |
NL40..4FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 |
EL4#,NL40..ATM *8−1.25PX12−8.4 |
1 | ||
| 90119-08498 |
EL4#,NL40..ATM *8−1.25PX12−8 |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
EL4#,NL40..ATM *10−1.25PX18−13 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-16010 |
EL43,45,NL40..4FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-16010 |
EL43,45,NL40..4FC |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-20010 |
EL43,45,NL40..4FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38020 |
EL4#,NL40..ATM |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99024 |
EL4#,NL40..ATM |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
EL43,45,NL40..4FC *8−1.25PX28−28 |
6 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-32030 |
EL4#,NL40..ATM 厚さ=1.4 |
1 | ||
| 35789-32020 |
EL4#,NL40..ATM 厚さ=0.8 |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06180 |
EL4#,NL40..ATM |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-12090 |
EL4#,NL40..ATM 厚さ=9.460−9.470 |
1 | ||
| 35321-12080 |
EL4#,NL40..ATM 厚さ=9.450−9.459 |
1 | ||
| 35321-12110 |
EL4#,NL40..ATM 厚さ=9.481−9.490 |
1 | ||
| 35321-32060 |
EL4#,NL40..ATM 厚さ=9.474−9.490 |
1 | ||
| 35321-32050 |
EL4#,NL40..ATM 厚さ=9.456−9.474 |
1 | ||
| 35321-12100 |
EL43,45,NL40..4FC 厚さ=9.471−9.480 |
1 | ||
| 35321-32040 |
EL4#,NL40..ATM 厚さ=9.440−9.456 |
1 | ||
| 35321-12070 |
EL4#,NL40..ATM 厚さ=9.440−9.449 |
1 | ||
| 35321-12100 |
EL4#,NL40..ATM 厚さ=9.471−9.480 |
1 | ||
| 35321-12110 |
EL43,45,NL40..4FC 厚さ=9.481−9.490 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-32060 |
EL4#,NL40..ATM 厚さ=9.474−9.490 |
1 | ||
| 35322-32040 |
EL4#,NL40..ATM 厚さ=9.440−9.456 |
1 | ||
| 35322-32050 |
EL4#,NL40..ATM 厚さ=9.456−9.474 |
1 | ||
| 35322-12090 |
EL43,45,NL40..4FC 厚さ=9.471−9.480 |
1 | ||
| 35322-12060 |
EL4#,NL40..ATM 厚さ=9.440−9.449 |
1 | ||
| 35322-12100 |
EL43,45,NL40..4FC 厚さ=9.481−9.490 |
1 | ||
| 35322-12080 |
EL4#,NL40..ATM 厚さ=9.460−9.470 |
1 | ||
| 35322-12100 |
EL4#,NL40..ATM 厚さ=9.481−9.490 |
1 | ||
| 35322-12070 |
EL4#,NL40..ATM 厚さ=9.450−9.459 |
1 | ||
| 35322-12090 |
EL4#,NL40..ATM 厚さ=9.471−9.480 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-12040 |
EL4#,NL40..ATM |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
EL4#,NL40..ATM |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
EL4#,NL40..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-32011 |
EL4#,NL40..ATM |
2 | ||
