NL40-AEPXX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 1NT

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9009- )1NT

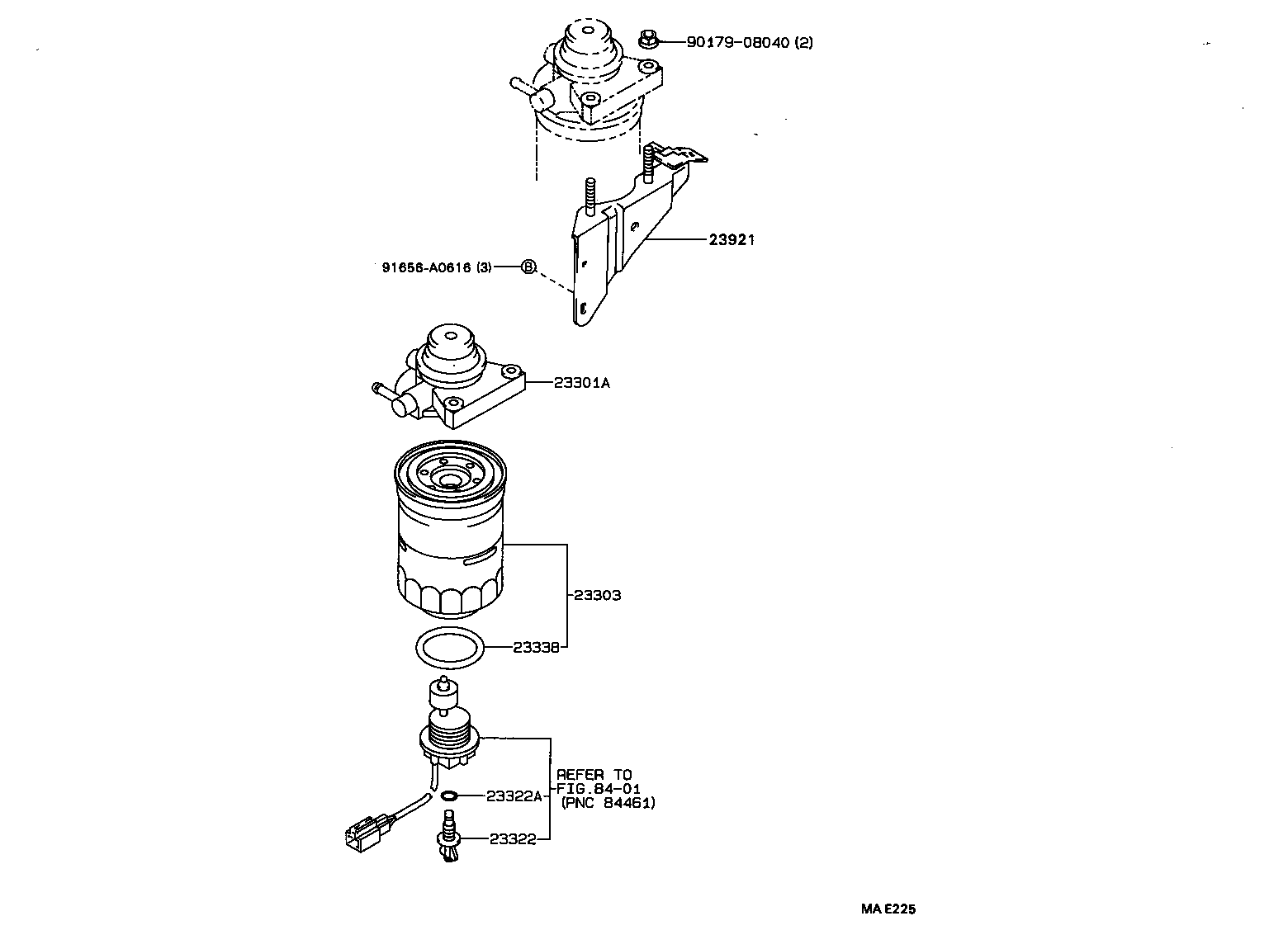

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23301-55080	1NT..NL40	09/1990 - 09/1994	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	1NT..NL40	09/1990 - 09/1994	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	1NT..NL40	09/1990 - 09/1994	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	1NT..NL40	09/1990 - 09/1994	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	1NT..NL40	09/1990 - 09/1994	1
23921 - SUPPORT, FUEL FILTER
23921-55060	1NT..NL40	09/1990 - 06/1994	1
23921-55080	1NT..NL40	06/1994 - 09/1994	1
Common parts
90179-08040
91656-A0616
Linked diagrams
8401
