NL40-AEPNX (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )1NT..4FC

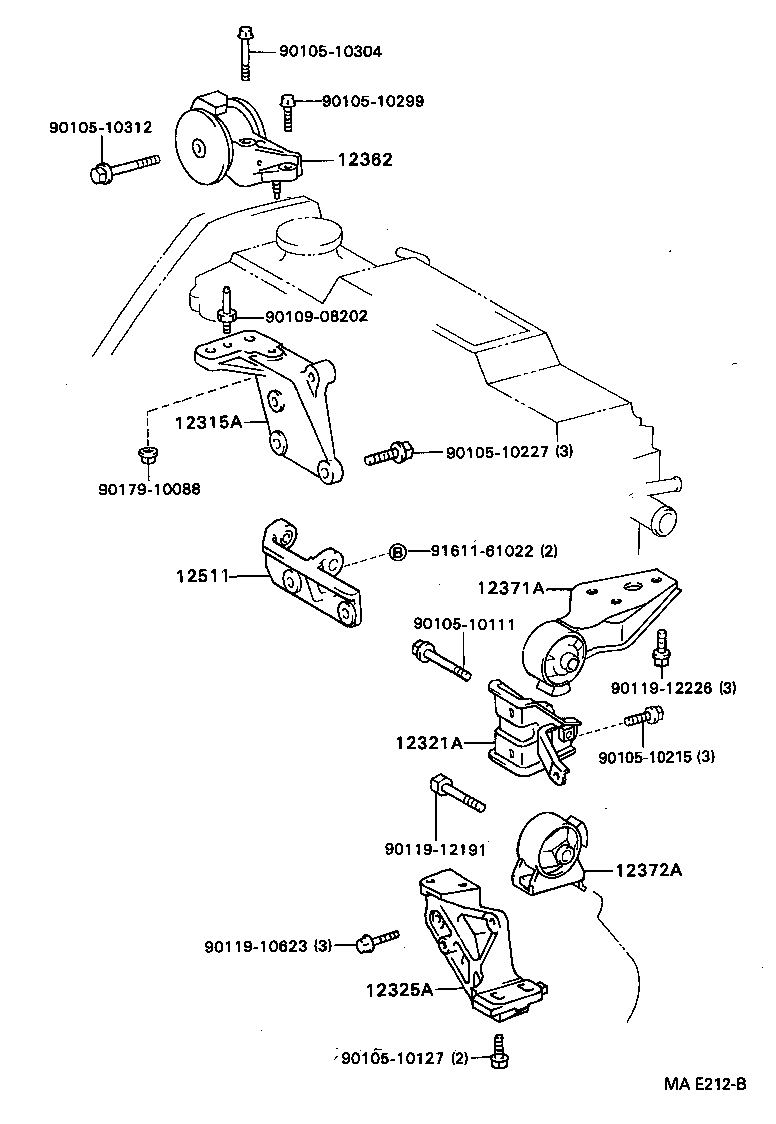

Click highlighted areas on diagram

diagram 12315A 12321A 12325A 12362 12371A 12372A 12511 9010510111 9010510127 9010510215 9010510227 9010510299 9010510304 9010510312 9010908202 9011910623 9011912191 9011912226 9017910088 9161161022
Part # Description Qty Price
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-55031

1NT..NL40

 1
12315-55040

1NT..NL40

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-55051

1NT..NL40..4FC

 1
12321-55050

1NT..NL40..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-11030

1NT..NL40..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-55040

1NT..NL40

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-55070

1NT..NL40..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-55080

1NT..NL40..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-55010

1NT..NL40

 1
Common parts
90105-10111
90105-10127
90105-10215
90105-10227
90105-10299
90105-10304
90105-10312
90109-08202
90119-10623
90119-12191
90119-12226
90179-10088
91611-61022
