Toyota Corsa/tercel NL40 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91611-61025	NL40..5F *10−1.25PX25−25	09/1990 - 12/1992	2
90119-12042	NL40..5F *12−1.25PX75−30	09/1990 - 08/1992	1
90119-12168	NL40..5F *12−1.25PX55−30	09/1990 - 09/1994	2
90119-12063	NL40..5F *12−1.25PX80−30	08/1992 - 09/1994	1
91611-61025	NL40..5F *10−1.25PX25−25	08/1994 - 09/1994	2
90105-10077	NL40..5F *10−1.25PX43−26	09/1990 - 09/1994	1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91611-61025	NL40..5F *10−1.25PX25−25	09/1990 - 12/1992	2
90119-12042	NL40..5F *12−1.25PX75−30	09/1990 - 08/1992	1
90119-12168	NL40..5F *12−1.25PX55−30	09/1990 - 09/1994	2
90119-12063	NL40..5F *12−1.25PX80−30	08/1992 - 09/1994	1
91611-61025	NL40..5F *10−1.25PX25−25	08/1994 - 09/1994	2
90105-10077	NL40..5F *10−1.25PX43−26	09/1990 - 09/1994	1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91611-61025	NL40..5F *10−1.25PX25−25	09/1990 - 12/1992	2
90119-12042	NL40..5F *12−1.25PX75−30	09/1990 - 08/1992	1
90119-12168	NL40..5F *12−1.25PX55−30	09/1990 - 09/1994	2
90119-12063	NL40..5F *12−1.25PX80−30	08/1992 - 09/1994	1
91611-61025	NL40..5F *10−1.25PX25−25	08/1994 - 09/1994	2
90105-10077	NL40..5F *10−1.25PX43−26	09/1990 - 09/1994	1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086	EL41,43,NL40..MTM *8−1.25PX45−27.5	09/1990 - 09/1994	16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006	EL41,43,NL40..MTM	09/1990 - 09/1994	1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008	EL4#,NL40..MTM	09/1990 - 09/1994	1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-10021	EL43,NL40..5F	05/1991 - 08/1992	1
33102-10020	EL43,NL40..5F	09/1990 - 05/1991	1
33102-10022	EL43,NL40..5F	08/1992 - 09/1994	1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006	EL4#,NL40..MTM	09/1990 - 09/1994	1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008	EL4#,NL40..MTM	09/1990 - 09/1994	1
33111 - CASE, MANUAL TRANSMISSION
33111-16050	EL41,NL40..MTM	08/1994 - 09/1994	1
33111-10071	EL41,43,NL40..MTM	09/1990 - 08/1994	1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054	EL4#,NL40..MTM 長さ=23,外径=8	09/1990 - 09/1994	4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34017	EL4#,NL40..MTM	08/1991 - 09/1994	1
90311-34008	EL4#,NL40..MTM	09/1990 - 08/1991	1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-16010	EL41,43,NL40..MTM	09/1990 - 11/1990	1
33117-16010	EL4#,NL40..MTM	11/1990 - 08/1994	1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040	EL4#,NL40..MTM	09/1990 - 08/1994	2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08494	EL41,43,NL40..MTM	09/1990 - 09/1994	9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10010	EL41,43,NL40..MTM	09/1990 - 08/1994	1
33124-10010	EL41,43,NL40..MTM	08/1994 - 09/1994	1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-10020	EL43,NL40..5F	09/1990 - 05/1994	1
33124-10021	EL43,NL40..5F	05/1994 - 09/1994	1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820	EL41,43,NL40..MTM	09/1990 - 01/1991	2
91611-60820	EL43,NL40..5F	01/1991 - 08/1992	2
91611-60820	EL4#,NL40..MTM	08/1992 - 09/1994	2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820	EL41,43,NL40..MTM	09/1990 - 01/1991	2
91611-60820	EL43,NL40..5F	01/1991 - 08/1992	2
91611-60820	EL4#,NL40..MTM	08/1992 - 09/1994	2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12071	NL40..5F	09/1990 - 09/1994	1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028	NL40..5F	09/1990 - 09/1994	3

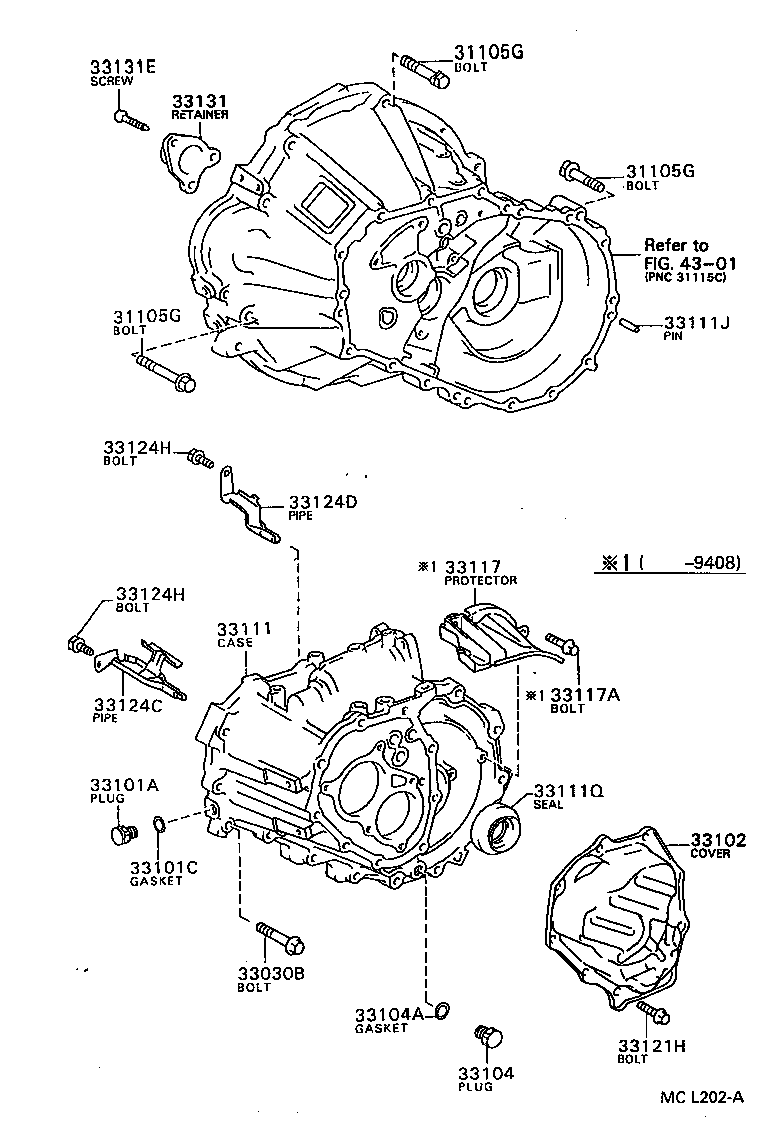

Linked diagrams
4301

NL40-AEMXX (1990)

(9009- )NL40..5F
