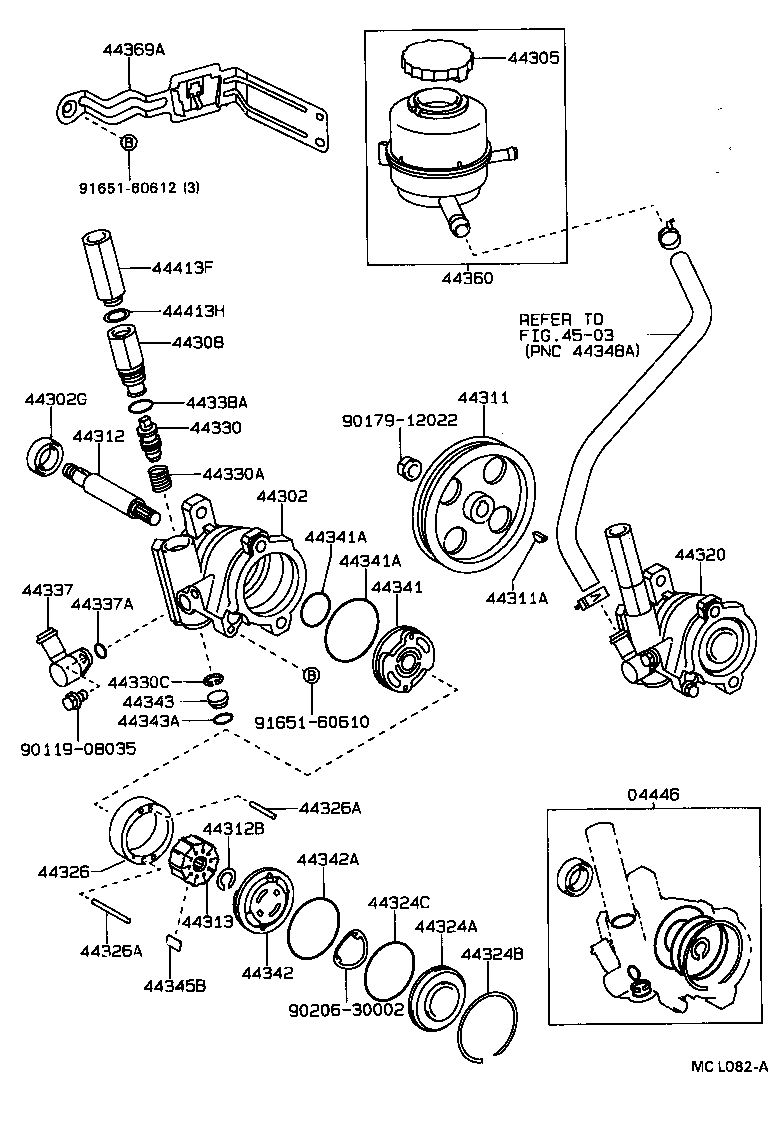

NL40-AEMDX (1990)
Toyota Corsa/Tercel
(9009- )NL40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16060 |
NL40 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-16030 |
NL40 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
EL4#,NL40 |
1 | ||
| 90311-18007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44305-22030 |
EL4#,NL40 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20050 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44308-20050 |
EL4#,NL40..DSL,EFI |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12030 |
NL40 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
EL4#,NL40 |
1 | ||
| 90280-05008 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44312-12030 |
EL4#,NL40 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 90520-10003 |
EL4#,NL40 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ無し |
1 | ||
| 44313-22050 |
EL4#,NL40 ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
EL4#,NL40 ﾏｰｸ 3 |
1 | ||
| 44313-22040 |
EL4#,NL40 ﾏｰｸ無し |
1 | ||
| 44313-22060 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 4 |
1 | ||
| 44313-22050 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 1 |
1 | ||
| 44313-22070 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 3 |
1 | ||
| 44313-22080 |
EL4#,NL40 ﾏｰｸ 4 |
1 | ||
| 44313-22060 |
EL4#,NL40 ﾏｰｸ 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-16180 |
NL40 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
EL4#,NL40 |
1 | ||
| 44324-12031 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
EL4#,NL40 |
1 | ||
| 90521-62002 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
EL4#,NL40 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12150 |
EL4#,NL40 ﾏｰｸ 4 |
1 | ||
| 44325-12110 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ無し |
1 | ||
| 44325-12110 |
EL4#,NL40 ﾏｰｸ無し |
1 | ||
| 44325-12120 |
EL4#,NL40 ﾏｰｸ 1 |
1 | ||
| 44325-12140 |
EL4#,NL40 ﾏｰｸ 3 |
1 | ||
| 44325-12130 |
EL4#,NL40 ﾏｰｸ 2 |
1 | ||
| 44325-12130 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 2 |
1 | ||
| 44325-12150 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 4 |
1 | ||
| 44325-12120 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 1 |
1 | ||
| 44325-12140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾏｰｸ 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
EL4#,NL40 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
EL4#,NL40 長さ=43,外径=4.0 |
1 | ||
| 90250-04049 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
EL4#,NL40 長さ=28,外径=4.0 |
1 | ||
| 90250-04049 |
EL4#,NL40 長さ=43,外径=4.0 |
1 | ||
| 90250-04049 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-20050 |
EL43,NL40..DSL,EFI ﾏｰｸ E |
1 | ||
| 44330-20030 |
EL43,NL40..DSL,EFI ﾏｰｸ C |
1 | ||
| 44330-20010 |
EL43,NL40..DSL,EFI ﾏｰｸ A |
1 | ||
| 44330-20060 |
EL43,NL40..DSL,EFI ﾏｰｸ F |
1 | ||
| 44330-20020 |
EL43,NL40..DSL,EFI ﾏｰｸ B |
1 | ||
| 44330-20040 |
EL43,NL40..DSL,EFI ﾏｰｸ D |
1 | ||
| 44330-20050 |
EL43,NL40 ﾏｰｸ E |
1 | ||
| 44330-20010 |
EL43,NL40 ﾏｰｸ A |
1 | ||
| 44330-20060 |
EL43,NL40 ﾏｰｸ F |
1 | ||
| 44330-20030 |
EL43,NL40 ﾏｰｸ C |
1 | ||
| 44330-20040 |
EL43,NL40 ﾏｰｸ D |
1 | ||
| 44330-20020 |
EL43,NL40 ﾏｰｸ B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
EL4#,NL40 |
1 | ||
| 90501-12103 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
NL40 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-16051 |
NL40 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-12003 |
EL4#,NL40 |
1 | ||
| 90301-12003 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19003 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 内径=19.5,外径=22.5 |
1 | ||
| 90301-19003 |
EL4#,NL40 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44341-32010 |
EL4#,NL40 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
EL4#,NL40 内側 |
1 | ||
| 90301-52001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 外側 |
3 | ||
| 90301-25001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 内側 |
1 | ||
| 90301-52001 |
EL4#,NL40 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
EL4#,NL40 内側 |
1 | ||
| 90301-52001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 外側 |
3 | ||
| 90301-25001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 内側 |
1 | ||
| 90301-52001 |
EL4#,NL40 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
EL4#,NL40 |
1 | ||
| 44342-32010 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
EL4#,NL40 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
NL40 |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
NL40 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=14.997 |
10 | ||
| 44345-12030 |
EL4#,NL40 長さ=14.993 |
10 | ||
| 44345-12020 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=14.995 |
10 | ||
| 44345-12020 |
EL4#,NL40 長さ=14.995 |
10 | ||
| 44345-12050 |
EL4#,NL40 長さ=14.989 |
10 | ||
| 44345-12010 |
EL4#,NL40 長さ=14.997 |
10 | ||
| 44345-12030 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=14.993 |
10 | ||
| 44345-12050 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=14.989 |
10 | ||
| 44345-12040 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ 長さ=14.991 |
10 | ||
| 44345-12040 |
EL4#,NL40 長さ=14.991 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-10040 |
EL4#,NL40 |
1 | ||
| 44360-10040 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-10030 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 44369-10030 |
EL4#,NL40 |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-10050 |
NL40 |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
NL40 |
1 | ||
| Common parts | ||||
| 90119-08035 | ||||
| 90179-12022 | ||||
| 90206-30002 | ||||
| 91651-60610 | ||||
| 91651-60612 | ||||
| Linked diagrams | ||||
| 4503 | ||||
