NL30-ZHPEX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

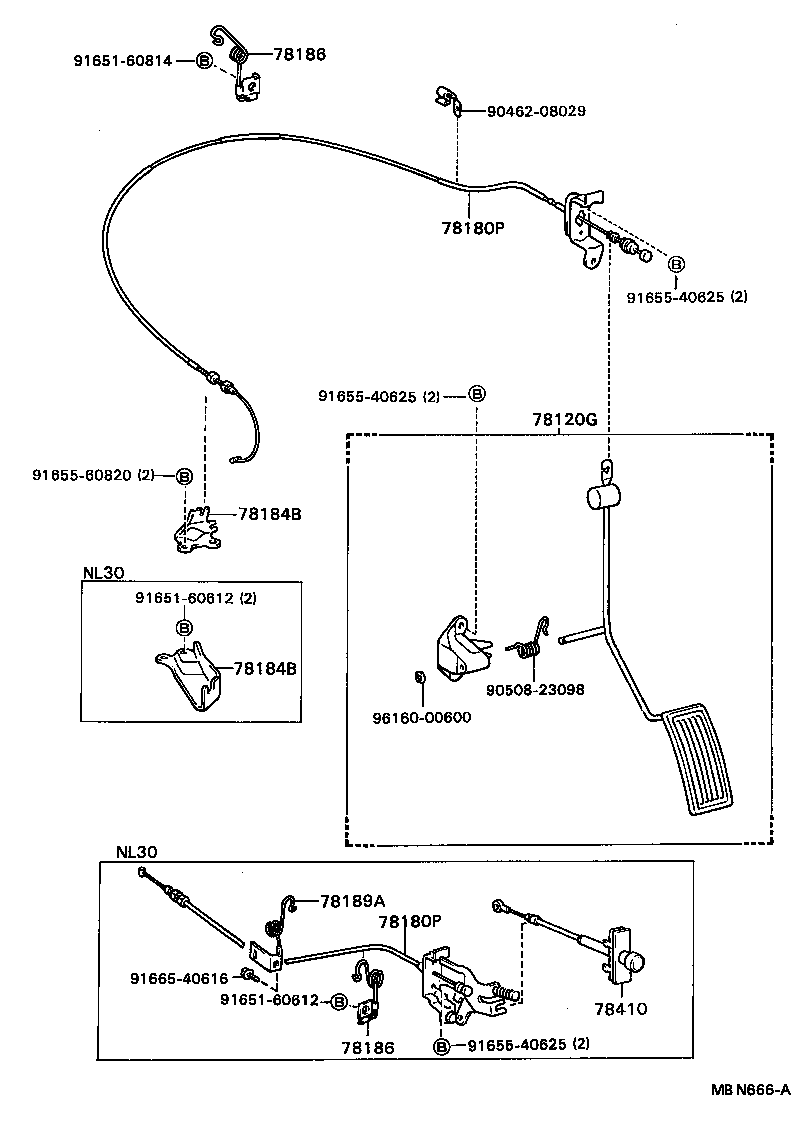

Click highlighted areas on diagram

diagram 78120G 78180P 78180P 78184B 78184B 78186 78186 78189A 78410 9046208029 9050823098 9165160612 9165160612 9165160814 9165540625 9165540625 9165540625 9165560820 9166540616 9616000600
Part # Description Qty Price
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-16060

EL3#,NL30

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-16150

NL30

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-16150

NL30

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
26662-55010

NL30

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
26662-55010

NL30

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-16060

NL30

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-16060

NL30

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78186-16070

NL30

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-1601001

NL30

NEW BLACK,TRIM2#

 1
78410-1601004

NL30

BLUE,TRIM8#

 1
Common parts
90462-08029
90508-23098
91651-60612
91651-60814
91655-40625
91655-60820
91665-40616
96160-00600
