NL30-ZHPDX (1988)
Toyota Corsa/Tercel
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )

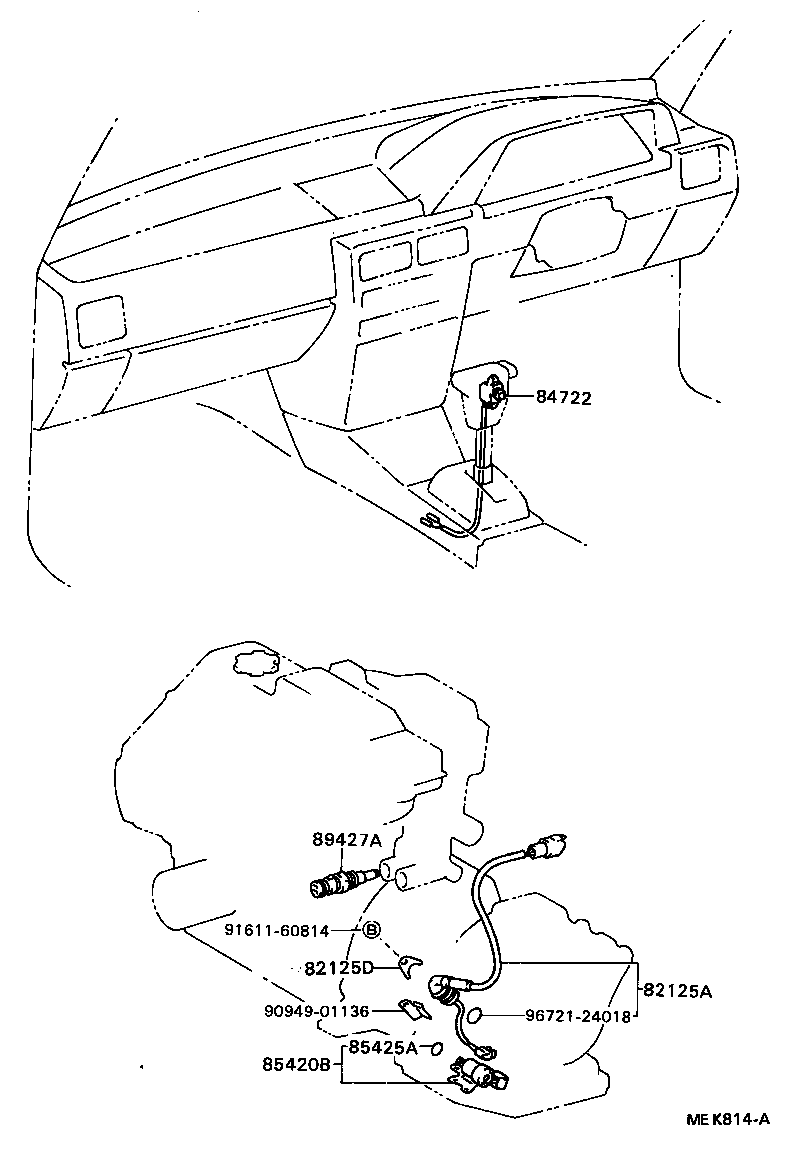

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-20100 |
EL31,NL30..4FC |
1 | ||
| 82125D - PLATE, TRANSMISSION WIRE LOCK | ||||
| 33485-30020 |
EL31,NL30..4FC |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-1605001 |
EL31,NL30..4FC NEW BLACK,TRIM2# |
1 | ||
| 84722-1605004 |
EL31,NL30..4FC BLUE,TRIM8# |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-10010 |
EL31,NL30..4FC |
1 | ||
| 85420-10011 |
EL31,NL30..4FC |
1 | ||
| 85425A - RING, O (FOR OVERDRIVE SOLENOID) | ||||
| 90301-06004 |
EL31,NL30..4FC |
1 | ||
| Common parts | ||||
| 90949-01136 | ||||
| 91611-60814 | ||||
| 96721-24018 | ||||
