Toyota Corsa/tercel NL30 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16080	EL3#,NL30	05/1986 - 05/1988	1
88510 - UNIT ASSY, COOLER
88510-16170	EL3#,NL30	05/1986 - 05/1988	1
88515 - VALVE, COOLER EXPANSION
88515-16040	EL3#,NL30	05/1986 - 05/1988	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16030	EL3#,NL30	05/1986 - 05/1988	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-16410	NL30..5F W/O PS	05/1986 - 02/1987	1
88605-16400	NL30..5F W/PS	05/1986 - 02/1987	1
88605-16560	NL30..GX,TX,VC,VL W/O PS	02/1987 - 05/1988	1
88605-16540	NL30..GX,TX,VC,VL W/PS	02/1987 - 05/1988	1
88625 - THERMISTOR, COOLER, NO.1
88625-16080	EL3#,NL30	05/1986 - 05/1988	1
88630 - RELAY ASSY, COOLER
88630-16030	NL30..5F	02/1987 - 05/1988	1
88645G - SWITCH, PRESSURE
88645-16020	EL3#,NL30	05/1986 - 05/1988	1
88648 - WIRING, COOLER, NO.1
88648-16120	EL3#,NL30	05/1986 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16240	NL30 NO.1,W/PS	05/1986 - 05/1988	1
88650-16280	NL30 NO.2	02/1987 - 12/1987	1
88650-16250	NL30..GX,TX,VC,VL NO.1,W/O PS	05/1986 - 05/1988	1
88650-16281	NL30 NO.2	12/1987 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16240	NL30 NO.1,W/PS	05/1986 - 05/1988	1
88650-16280	NL30 NO.2	02/1987 - 12/1987	1
88650-16250	NL30..GX,TX,VC,VL NO.1,W/O PS	05/1986 - 05/1988	1
88650-16281	NL30 NO.2	12/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-16290	EL3#,NL30	05/1986 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
Common parts
88569-16030
88569-16040
88569-17090
88569-22190
90099-00906
90159-60125
90179-06054
90480-24008
90480-26022
93540-14012

Part #	Description	Period	Qty
88630 - RELAY ASSY, COOLER
88630-16030	NL30..5F	02/1987 - 05/1988	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16240	NL30 NO.1,W/PS	05/1986 - 05/1988	1
88650-16280	NL30 NO.2	02/1987 - 12/1987	1
88650-16250	NL30..GX,TX,VC,VL NO.1,W/O PS	05/1986 - 05/1988	1
88650-16281	NL30 NO.2	12/1987 - 05/1988	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-16280	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88688-16270	EL3#,NL30 NO.1,W/O PS	05/1986 - 08/1987	1
88688-16260	EL3#,NL30 NO.1,W/PS	05/1986 - 05/1988	1
88688-16260	EL3#,NL30 NO.1,W/O PS	08/1987 - 05/1988	1
88891 - PACKING (FOR COOLER)
88578-16110	EL3#,NL30 NO.2	02/1987 - 05/1988	1
88578-10090	EL3#,NL30 NO.1	05/1986 - 05/1988	1
Common parts
88569-17070
88899-95A14

NL30-ZHMNX (1986)

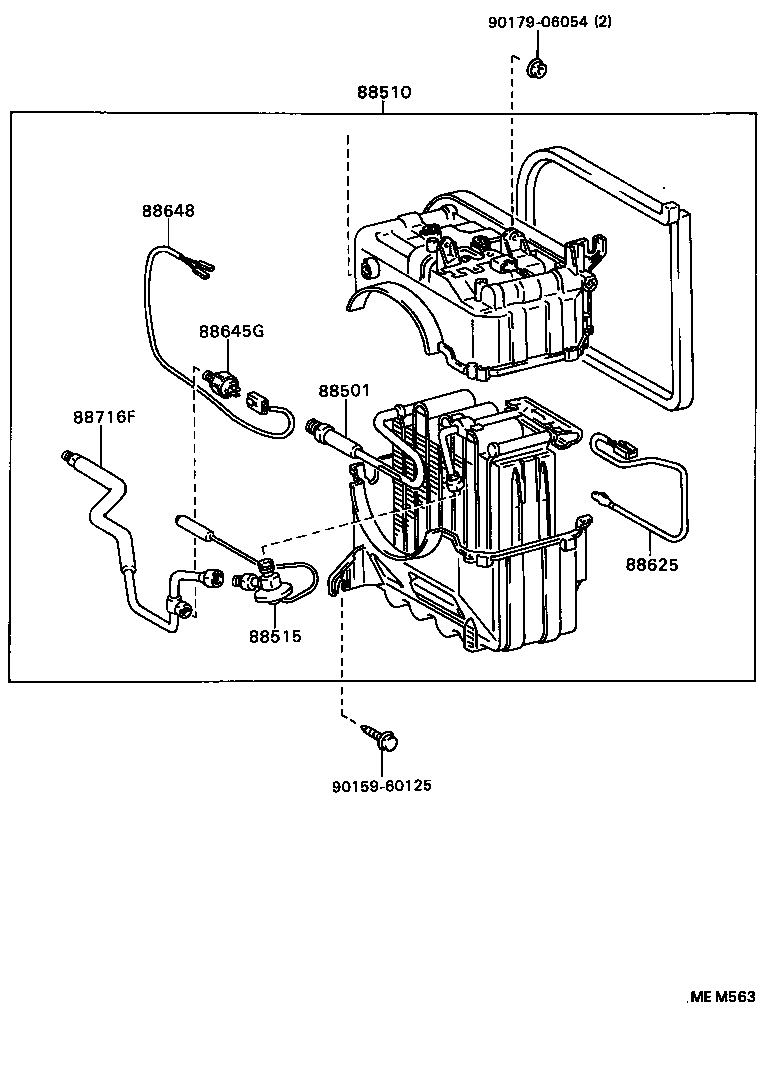

ILLUST NO. 1 OF 2(8605- )NL30

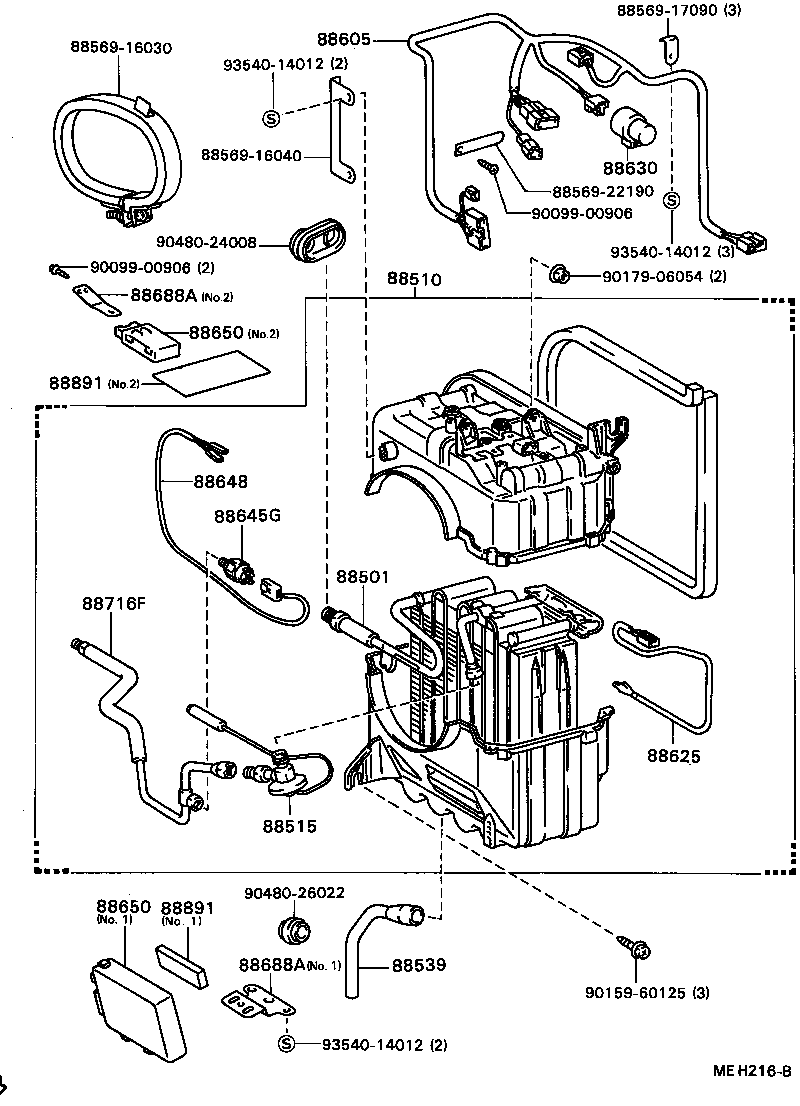

ILLUST NO. 2 OF 2(8605- )

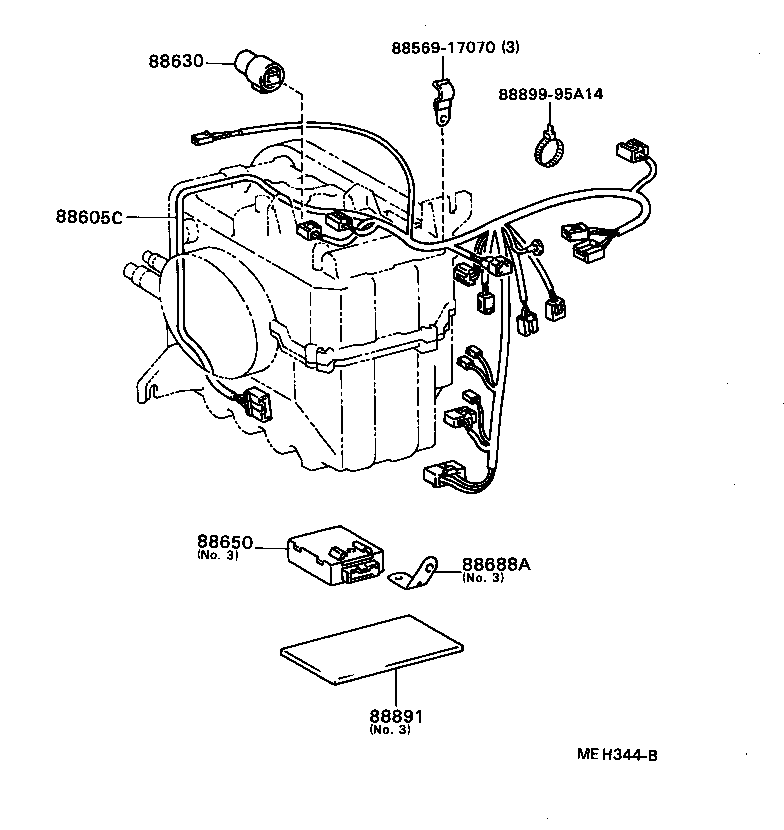

ILLUST NO. 1 OF 2(8805-8807)EL3# ; (8805- )NL30 ; (8807- )CBR,TBO
