NL30-ZHMNX (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

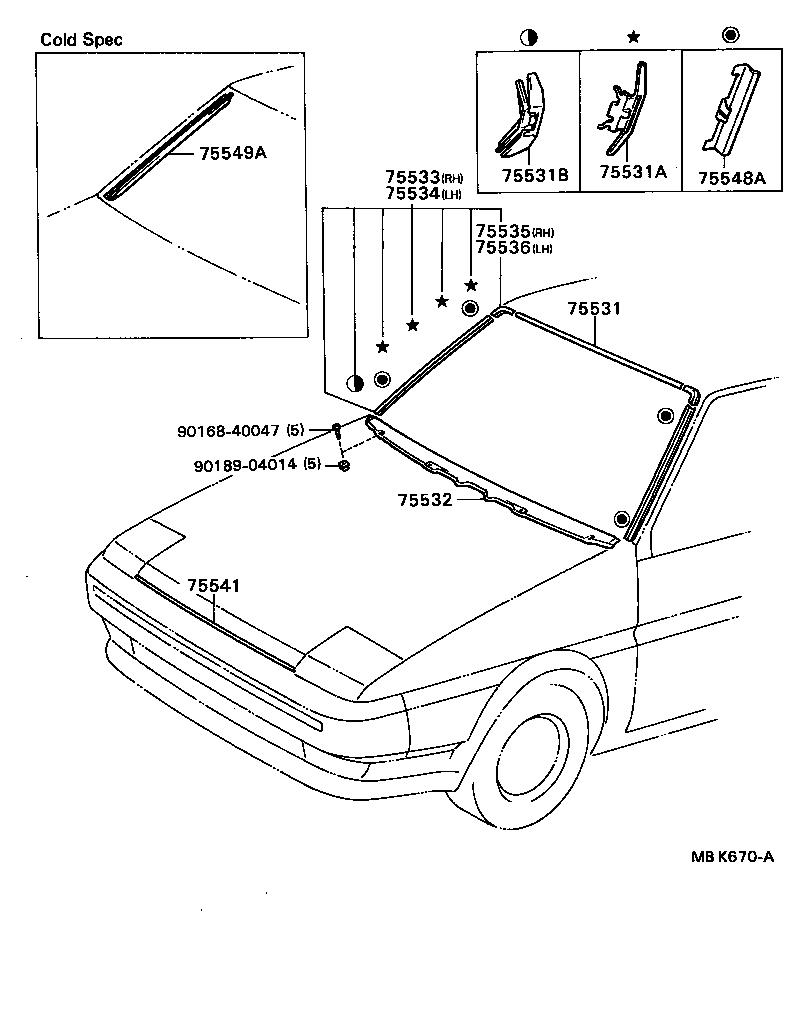

Click highlighted areas on diagram

diagram 75531 75531A 75531B 75532 75533 75534 75535 75536 75541 75548A 75549A 9016840047 9018904014
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-16060

EL3#,NL30..GP,GX,SX,TX,VC,VL,VS

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-16030

EL3#,NL30

 8
75531B - CLIP, WINDSHIELD MOULDING SET, NO.2
75547-16030

EL3#,NL30

LH

 1
75546-16030

EL3#,NL30

RH

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-16040

EL3#,NL30

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-16040

EL3#,NL30..GP,GX,SX,TX,VC,VL,VS

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-16040

EL3#,NL30..GP,GX,SX,TX,VC,VL,VS

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-16040

EL3#,NL30..GP,GX,SX,TX,VC,VL,VS

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75542-16040

EL3#,NL30..GP,GX,SX,TX,VC,VL,VS

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-20060

EL3#,NL30

 4
75548-16030

EL3#,NL30

 4
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-16020

EL3#,NL30

COLD SPEC

 1
Common parts
90168-40047
90189-04014
