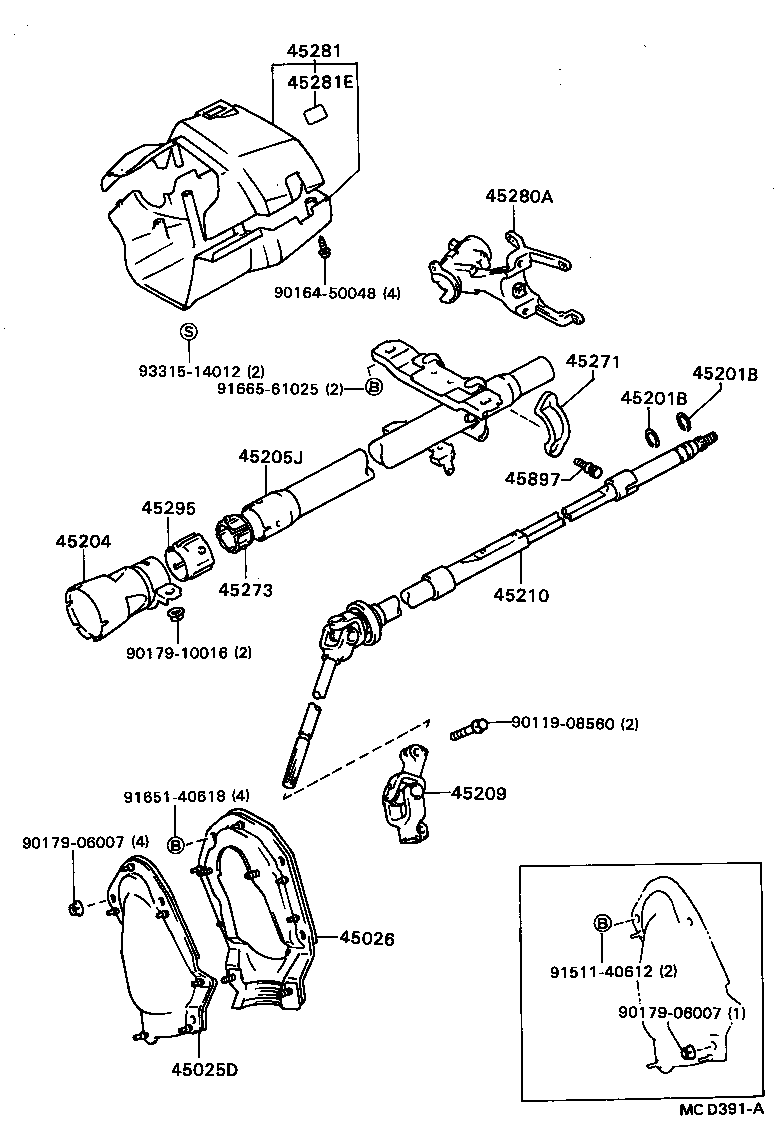

NL30-ZHMNX (1986)
Toyota Corsa/Tercel
(8605- )GP,GX,SX,TX,VC,VL,VS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16090 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45025-16091 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45025-16070 |
NL30..GX,TX,VC,VL |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16032 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45025-16010 |
NL30..GX,TX,VC,VL |
1 | ||
| 45026-16030 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
EL3#,NL30 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 90520-17042 |
EL3#,NL30 厚さ=1.20,T=1.2 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-16010 |
EL3#,NL30..GX,SX,TX,VC,VL,VS |
1 | ||
| 45204-16011 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-16050 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-10020 |
NL30..GX,TX,VC,VL |
1 | ||
| 45209-16020 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-16080 |
NL30..GX,TX,VC,VL |
1 | ||
| 45210-16100 |
EL3#,NL30 W/POWER STEERING |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL3#,NL30 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
EL3#,NL30 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16040 |
EL3#,NL30 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1690505 |
EL3#,NL30..GX,TX,VC,VL BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 45286-1690504 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1690501 |
EL3#,NL30..GP,GX,SX,TX,VC,VL,VS BLACK,NEW BLACK,TRIM2# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
EL3#,NL30 |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-16010 |
EL3#,NL30 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
EL3#,NL30 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06007 | ||||
| 90179-10016 | ||||
| 91511-40612 | ||||
| 91651-40618 | ||||
| 91665-61025 | ||||
| 93315-14012 | ||||
