NL30-ZHMNX (1986)
Toyota Corsa/Tercel
Production
May 1986
-
May 1988
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )1NT

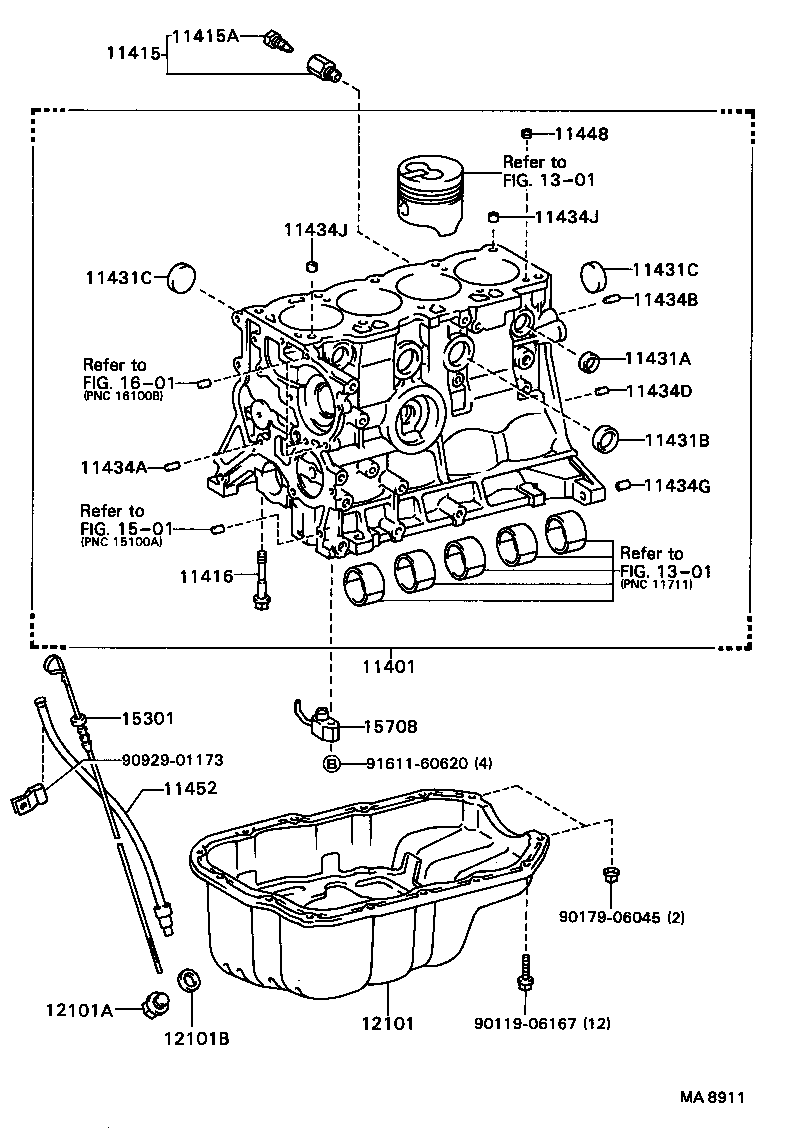

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59326 |
1NT..NL30 |
1 | ||
| 11401-59325 |
1NT..NL30 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09088 |
1NT..NL30 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1NT..NL30 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90105-10153 |
1NT..NL30 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42000 |
1NT..NL30 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43000 |
1NT..NL30 OD=30 |
6 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1NT..NL30 OD=35 |
5 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1NT..NL30 OD=35 |
5 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-06003 |
1NT..NL30 長さ=14,外径=6 |
1 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10052 |
1NT..NL30 長さ=20,外径=10,L=20,OD=10 |
1 | ||
| 90250-10071 |
1NT..NL30 L=20,OD=8 |
1 | ||
| 90250-10052 |
1NT..NL30 長さ=20,外径=10,L=20,OD=10 |
1 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-10005 |
1NT..NL30 長さ=10,外径=10 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90253-15016 |
1NT..NL30 |
1 | ||
| 90253-15001 |
1NT..NL30 |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-14001 |
1NT..NL30 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-14001 |
1NT..NL30 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-55010 |
1NT..NL30 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-55010 |
1NT..NL30 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-55010 |
1NT..NL30 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1NT..NL30 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12019 |
1NT..NL30 |
1 | ||
| 90430-12011 |
1NT..NL30 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-55010 |
1NT..NL30 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15790-55010 |
1NT..NL30 |
4 | ||
| Common parts | ||||
| 90119-06167 | ||||
| 90179-06045 | ||||
| 90929-01173 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1501 | ||||
| 1601 | ||||
