NL30-ZHMEX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )TER

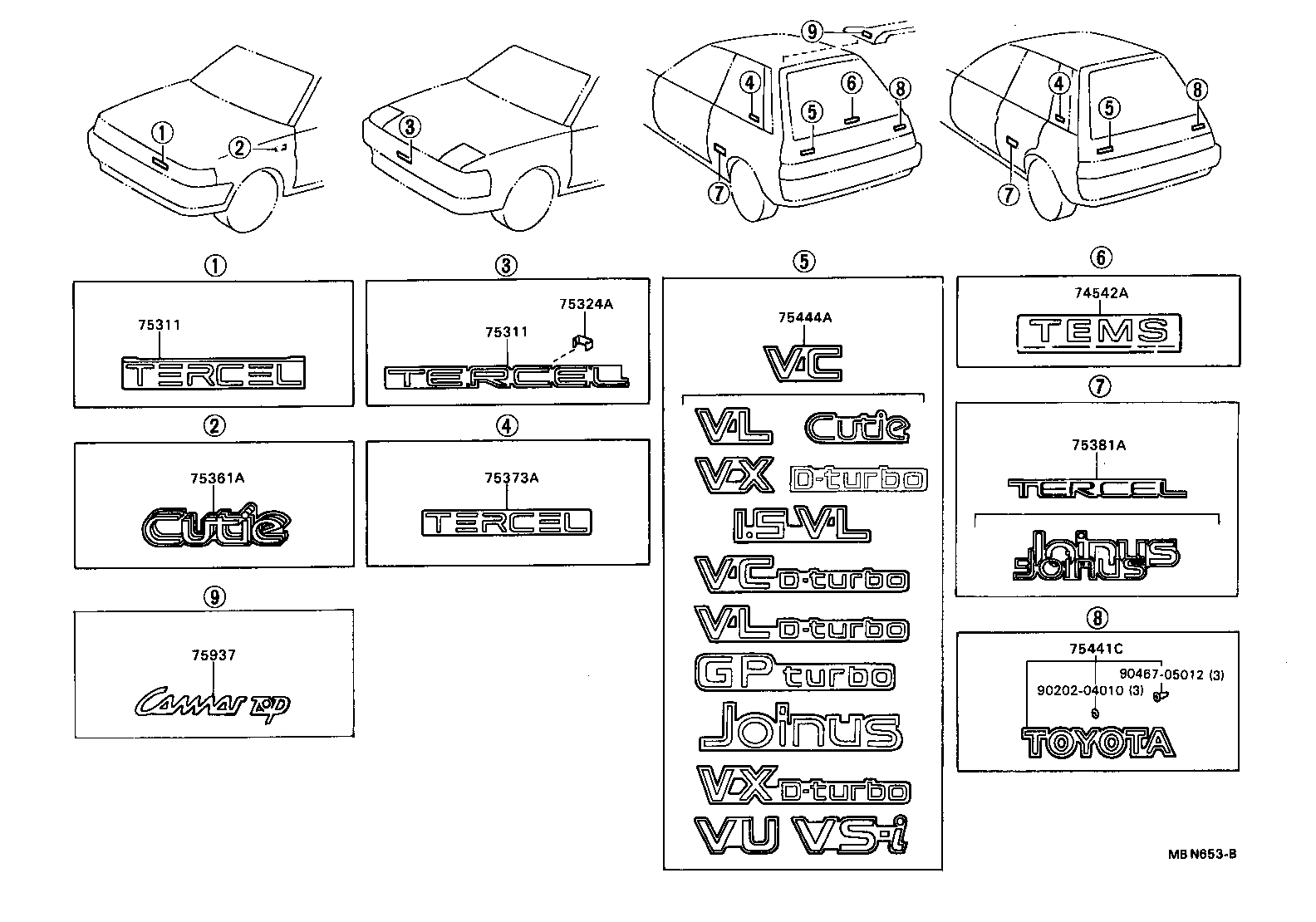

Click highlighted areas on diagram

diagram 74542A 75311 75311 75324A 75361A 75373A 75381A 75441C 75444A 75937 9020204010 9046705012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16380

EL3#,NL30..EX,GX,SOP,TX

 1
75311-16370

EL3#,NL30..CUT,VC,VL,VX

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16380

EL3#,NL30..EX,GX,SOP,TX

 1
75311-16370

EL3#,NL30..CUT,VC,VL,VX

 1
75373A - PLATE, QUARTER WINDOW MARK
75373-16060

EL3#,NL30..TER..(CBR,EFI,TD)

TERCEL

 2
75441C - PLATE, BACK DOOR NAME
75441-16230

EL3#,NL30

TOYOTA

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-16050

EL31,NL30..EX

EX

 1
75444-16290

NL30..VX

VX D−TURBO

 1
75444-16300

NL30..EX

D−TURBO

 1
Common parts
90202-04010
90467-05012
