NL30-ZGPDX (1988)
Toyota Corsa/Tercel

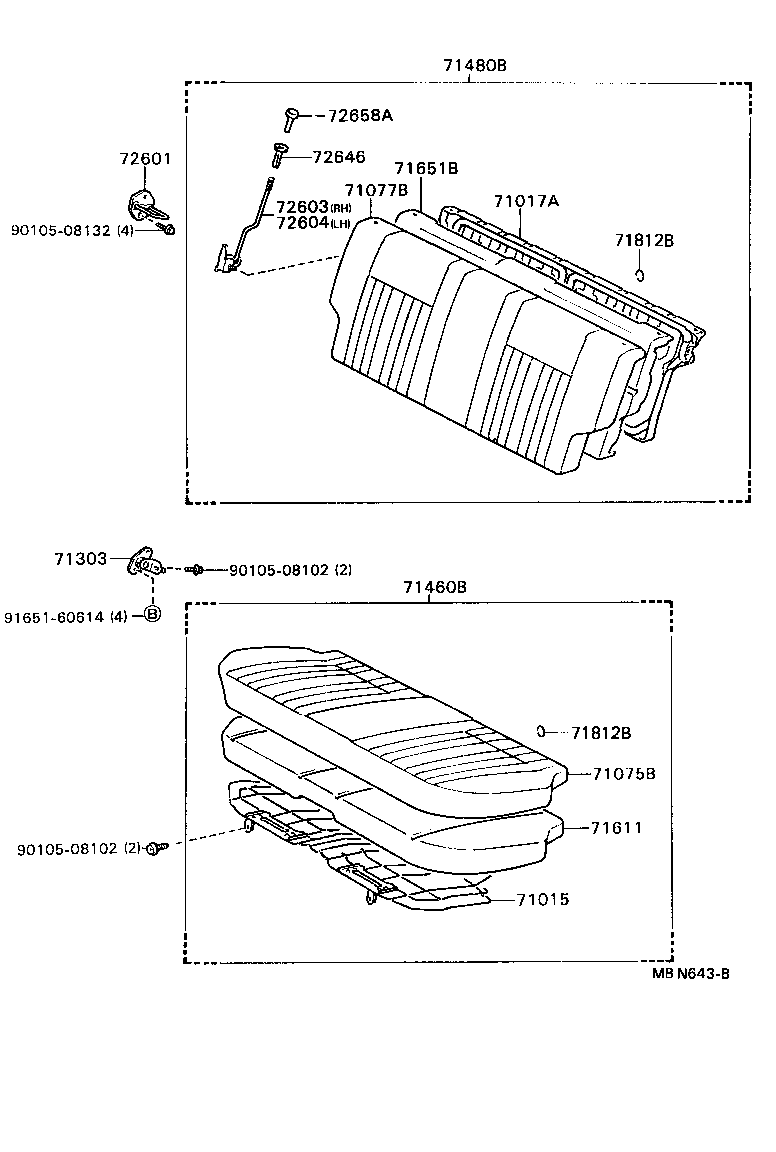

(8805- )SOP,SXI,VC,VSI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16070 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
1 | ||
| 71015-16070 |
NL30..TX,VC |
1 | ||
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16110 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
1 | ||
| 71017-16110 |
NL30..TX,VC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1658003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71065-1658003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71065-1658004 |
NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71065-1658004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71065-1658004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71065-1658003 |
NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1G40004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71077-1G40003 |
NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71077-1G40004 |
NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71077-1G40003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71077-1G40003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71077-1G40004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16040 |
EL3#,NL30 |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1664003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71560-1664004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71560-1664003 |
NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71560-1664004 |
NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71560-1664004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71560-1664003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1G42003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71480-1G42003 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,GRAY,TRIM2# |
1 | ||
| 71480-1G42003 |
NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71480-1G42004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71480-1G42004 |
NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71480-1G42004 |
EL30,NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16170 |
NL30..TX,VC |
1 | ||
| 71611-16170 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16220 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
1 | ||
| 71651-16220 |
NL30..TX,VC |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16070 |
EL3#,NL30 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16140 |
EL3#,NL30 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16100 |
EL3#,NL30 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1601001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72646-1601001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72646-1601004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72646-1601001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-2301004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-2301001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-1602001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-2301004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-1602004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 91651-60614 | ||||

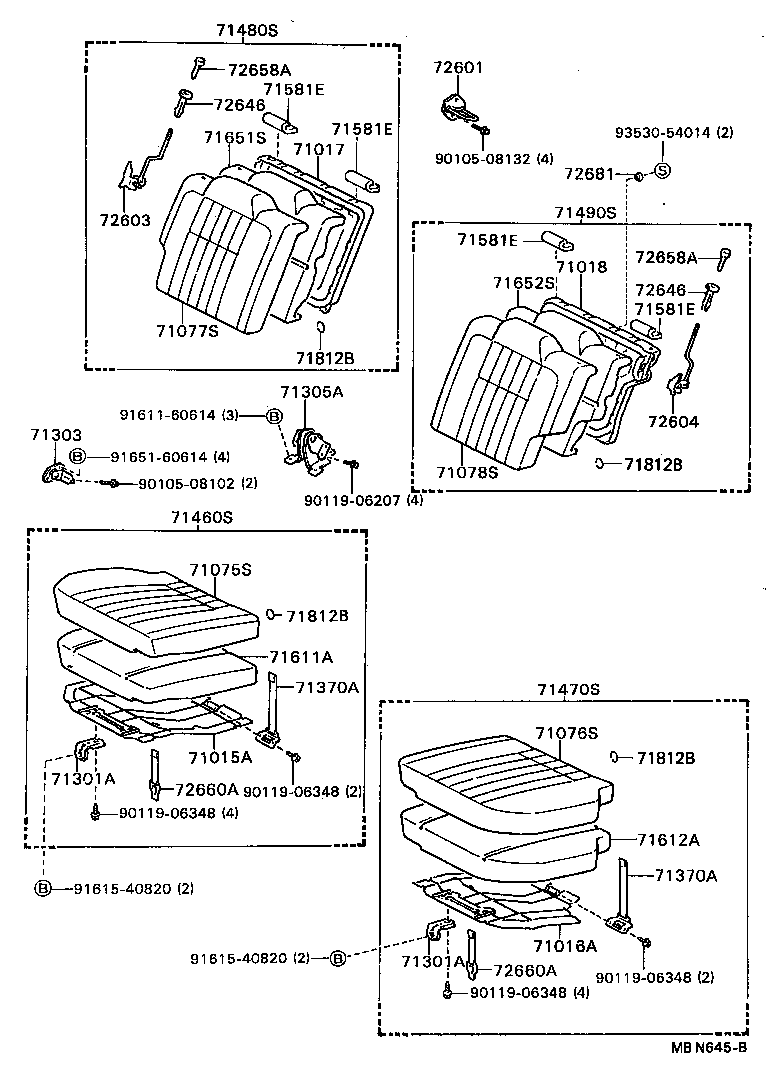

(8805- )EX,GP,SXI,UX,VSI,VU,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-16080 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-16010 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16130 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16090 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-1657004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71065-1657003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-1610004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71076-1610003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1G39004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71077-1G39003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1682003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71078-1682004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1602001 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLACK,TRIM2#,内側 |
2 | ||
| 71301-1602004 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLUE,TRIM8#,内側 |
2 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1602001 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLACK,TRIM2#,内側 |
2 | ||
| 71301-1602004 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLUE,TRIM8#,内側 |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16040 |
EL3#,NL30 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16050 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1602004 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLUE,TRIM8# |
2 | ||
| 71370-1602001 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLACK,TRIM2# |
2 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1602004 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLUE,TRIM8# |
2 | ||
| 71370-1602001 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLACK,TRIM2# |
2 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71560-1663004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71560-1663003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-1610004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71470-1610003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1G28004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71480-1G28003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1687003 |
EL30,NL30..TX,VC GRAY,TRIM2# |
1 | ||
| 71490-1687004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-16180 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-16030 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16240 |
EL31,NL30..EX,GP,SXI,VSI,VX |
1 | ||
| 71651-16260 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16130 |
EL31,NL30..EX,GP,SXI,VSI,VX |
1 | ||
| 71652-16110 |
EL3#,NL30..GX,TX,UX,VC,VL,VU |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX |
90 | ||
| 90468-18071 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ |
45 | ||
| 90468-18071 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ |
45 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16070 |
EL3#,NL30 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16140 |
EL3#,NL30 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16100 |
EL3#,NL30 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1601001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72646-1601001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72646-1601004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72646-1601001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1601001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72646-1601001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72646-1601004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72646-1601004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72646-1601001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-2301004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-2301001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-1602001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-2301004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-1602004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301001 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-2301004 |
NL30..TX,VC;EL30..5DS..(TX,VC) MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-2301001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-1602001 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 72658-2301004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72658-2301001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602001 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLACK,TRIM2# |
2 | ||
| 72658-1602004 |
EL3#,NL30..EX,GP,GX,SXI,TX,UX,VC,VL,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| 72658-1602004 |
NL30..TX,VC MOA,JOINUS ｼﾖｳ,BLUE,TRIM8# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601014 |
EL31,NL30..EX,GP,SXI,VSI,VX BLUE,TRIM8# |
2 | ||
| 72660-1603001 |
EL30,NL30..TX,VC BLACK,TRIM2# |
2 | ||
| 72660-1601001 |
EL31,NL30..EX,GP,SXI,VSI,VX BLACK,TRIM2# |
2 | ||
| 72660-1603004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601014 |
EL31,NL30..EX,GP,SXI,VSI,VX BLUE,TRIM8# |
2 | ||
| 72660-1603001 |
EL30,NL30..TX,VC BLACK,TRIM2# |
2 | ||
| 72660-1601001 |
EL31,NL30..EX,GP,SXI,VSI,VX BLACK,TRIM2# |
2 | ||
| 72660-1603004 |
EL30,NL30..TX,VC BLUE,TRIM8# |
2 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601001 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLACK,TRIM2# |
2 | ||
| 72681-1601024 |
EL3#,NL30..EX,GP,SXI,TX,VC,VSI,VX BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90119-06207 | ||||
| 90119-06348 | ||||
| 91611-60614 | ||||
| 91615-40820 | ||||
| 91651-60614 | ||||
| 93530-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
