NL30-ZGMNX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

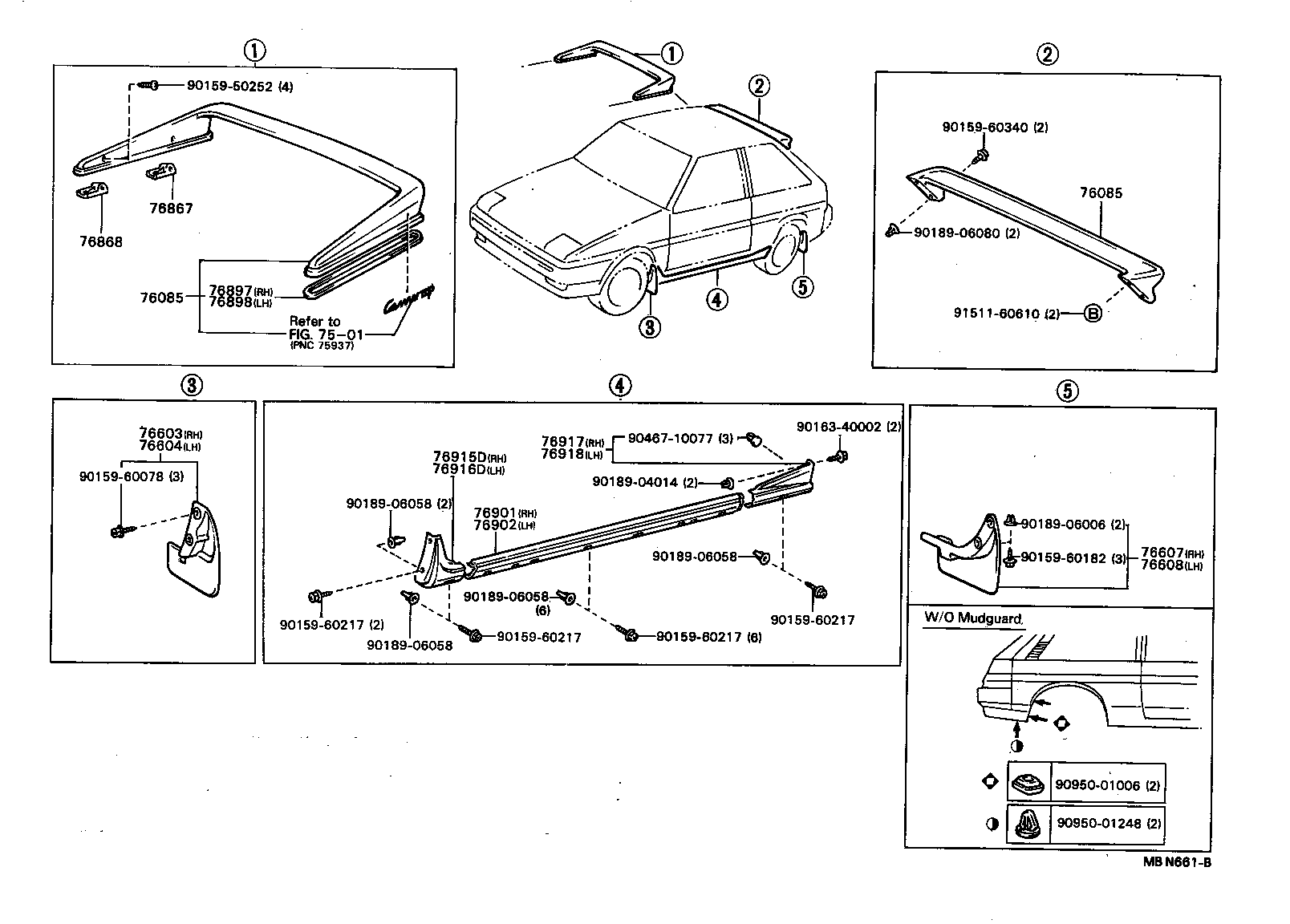

Click highlighted areas on diagram

diagram 7501 76085 76085 76603 76604 76607 76608 76867 76868 76897 76898 76901 76902 76915D 76916D 76917 76918 9015950252 9015960078 9015960182 9015960217 9015960217 9015960217 9015960217 9015960340 9016340002 9018904014 9018906006 9018906058 9018906058 9018906058 9018906058 9018906080 9046710077 9095001006 9095001248 9151160610
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19095

EL3#,NL30..GX,SXI,UX,VL,VSI,VU

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19095

EL3#,NL30..GX,SXI,UX,VL,VSI,VU

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19135

EL3#,NL30..GX,SXI,TX,UX,VC,VL,VSI,VU

 1
76625-19135

NL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19145

EL3#,NL30..GX,SXI,TX,UX,VC,VL,VSI,VU

 1
76626-19145

NL30..GX,TX,VC,VL;EL3#..GX,SXI,UX,VL,VSI,VU

 1
Common parts
90159-50252
90159-60078
90159-60182
90159-60217
90159-60340
90163-40002
90189-04014
90189-06006
90189-06058
90189-06080
90467-10077
90950-01006
90950-01248
91511-60610
Linked diagrams
7501
