NL30-ZGMNX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )1NT

Click highlighted areas on diagram

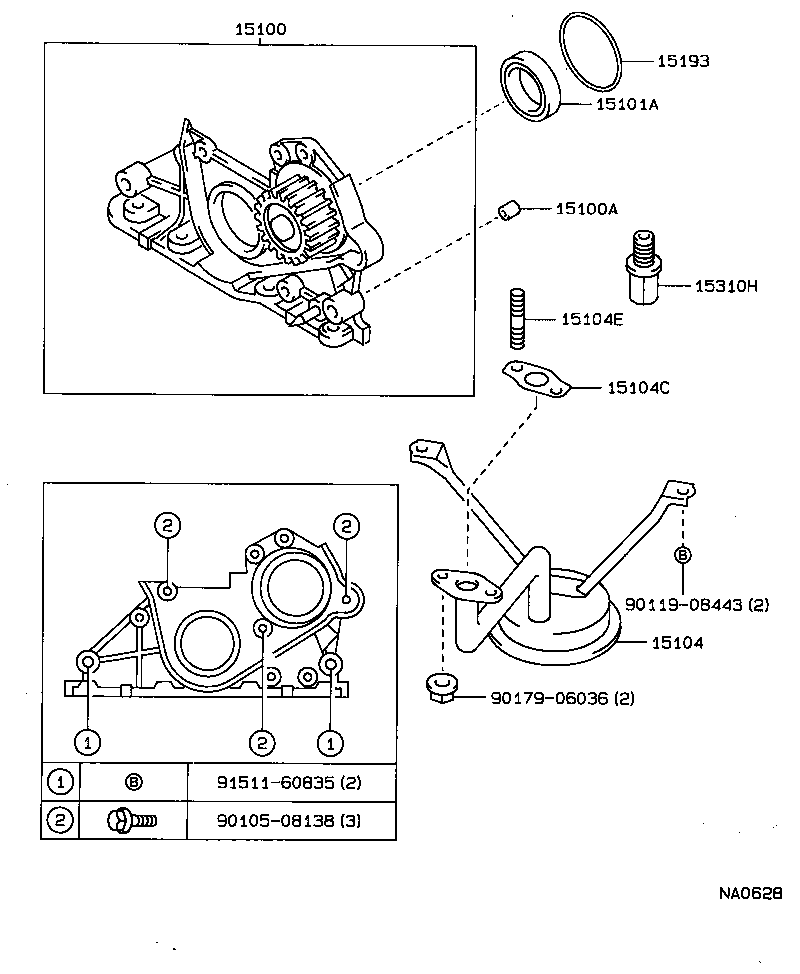

diagram 15100 15100A 15101A 15104 15104C 15104E 15193 15310H 9010508138 9011908443 9017906036 9151160835
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-55010

1NT..NL30

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1NT..NL30

 2
15101A - SEAL(FOR CRANKSHAFT)
90311-35017

1NT..NL30

 1
90311-35017

1NT..NL30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-55010

1NT..NL30

 1
15104C - GASKET(FOR OIL STRAINER)
15149-55010

1NT..NL30

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06032

1NT..NL30

 2
15193 - GASKET, OIL PUMP
96721-24067

1NT..NL30

 1
15310H - REGULATOR ASSY, OIL
15310-55010

1NT..NL30

 1
Common parts
90105-08138
90119-08443
90179-06036
91511-60835
