NL30-ZGMNX (1988)
Toyota Corsa/Tercel
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )1NT..5F

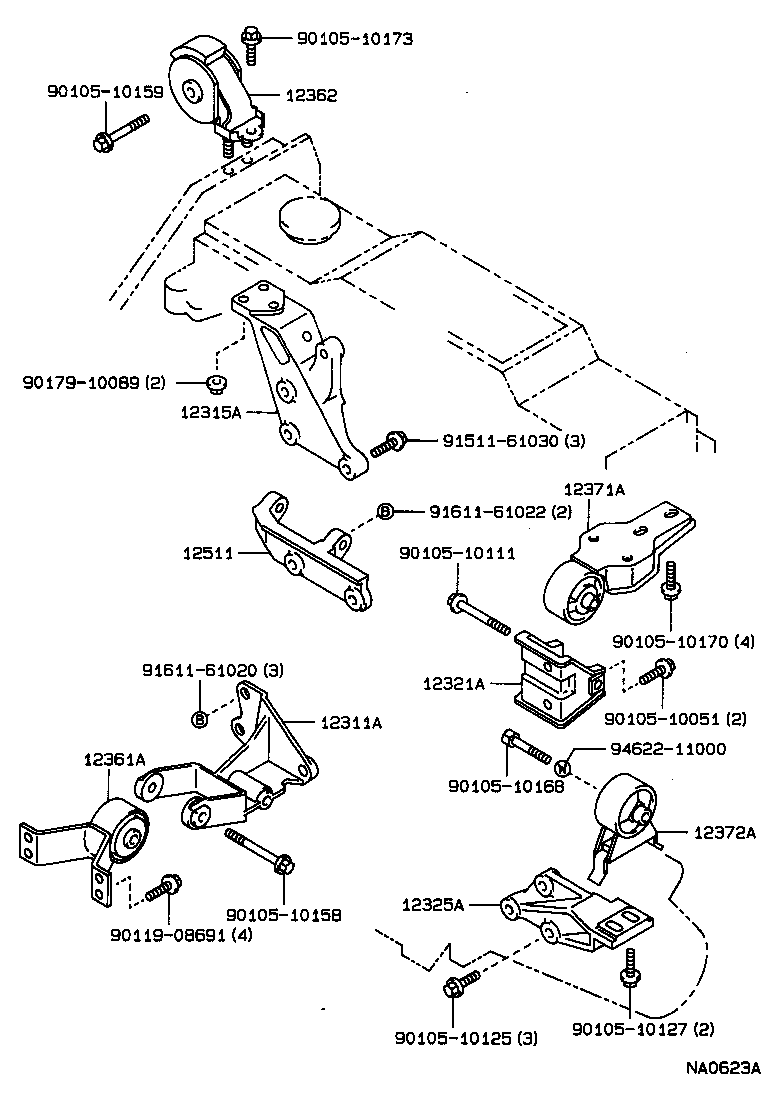

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-55010 |
1NT..NL30 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-55010 |
1NT..NL30 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-55010 |
1NT..NL30..5F |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-55010 |
1NT..NL30..5F |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-55030 |
1NT..NL30..5F |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-55010 |
1NT..NL30 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-55020 |
1NT..NL30..5F |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-55011 |
1NT..NL30..5F |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-55010 |
1NT..NL30 |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-10111 | ||||
| 90105-10125 | ||||
| 90105-10127 | ||||
| 90105-10158 | ||||
| 90105-10159 | ||||
| 90105-10168 | ||||
| 90105-10170 | ||||
| 90105-10173 | ||||
| 90119-08691 | ||||
| 90179-10089 | ||||
| 91511-61030 | ||||
| 91611-61020 | ||||
| 91611-61022 | ||||
| 94622-11000 | ||||
