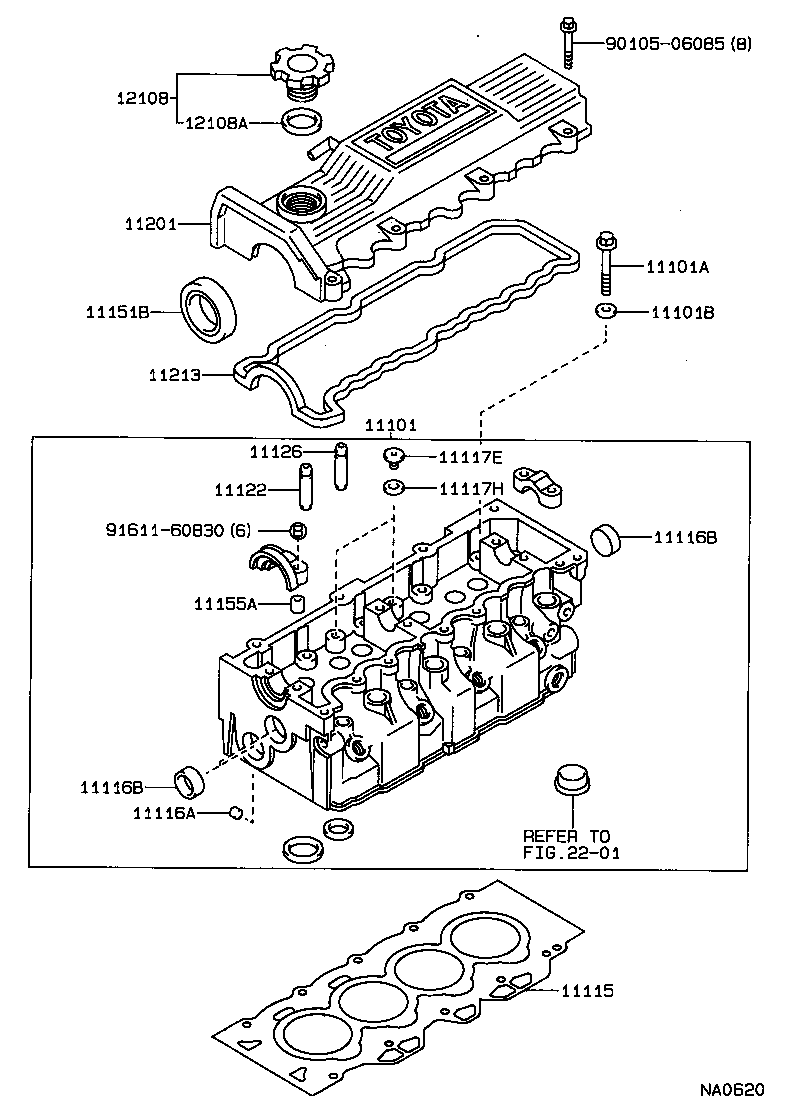

Toyota Corsa/tercel NL30 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-55010	1NT..NL30	05/1988 - 03/1990	1
11101-55040	1NT..NL30	03/1990 - 09/1990	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-11022	1NT..NL30	05/1988 - 09/1990	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11016	1NT..NL30	05/1988 - 09/1990	10
11115 - GASKET, CYLINDER HEAD
11115-5502001	1NT..NL30 MARK 1,MARK 1	05/1988 - 09/1990	1
11115-5502002	1NT..NL30 MARK 2,MARK 2	05/1988 - 09/1990	1
11115-5502003	1NT..NL30 MARK 3,MARK 3	05/1988 - 09/1990	1
11116A - PLUG, TIGHT, NO.1
90331-08004	1NT..NL30	05/1988 - 09/1990	4
11116B - PLUG, TIGHT, NO.2
96411-12800	1NT..NL30	05/1988 - 09/1990	3
11116B - PLUG, TIGHT, NO.2
96411-12800	1NT..NL30	05/1988 - 09/1990	3
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-18023	1NT..NL30	05/1988 - 09/1990	2
11117H - GASKET(FOR WATER HOLE)
90430-18008	1NT..NL30	05/1988 - 09/1990	2
11122 - BUSH, INTAKE VALVE GUIDE
11123-16020	1NT..NL30 O/S 0.05	05/1988 - 09/1990	4
11122-16020	1NT..NL30 STD	05/1988 - 09/1990	4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-16020	1NT..NL30 STD	05/1988 - 09/1990	4
11123-16020	1NT..NL30 O/S 0.05	05/1988 - 09/1990	4
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-38025	1NT..NL30	05/1988 - 08/1990	1
90311-38041	1NT..NL30	08/1990 - 09/1990	1
11155A - PIN, RING W/HEAD
90253-11021	1NT..NL30	05/1988 - 09/1990	2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-55010	1NT..NL30	05/1988 - 09/1990	1
11213 - GASKET, CYLINDER HEAD COVER
11213-55010	1NT..NL30	05/1988 - 09/1990	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010	1NT..NL30	05/1988 - 09/1990	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004	1NT..NL30	05/1988 - 09/1990	1
Common parts
90105-06085
91611-60830
Linked diagrams
2201

NL30-ZGMNX (1988)

(8805- )1NT
