NL30-LHPNX (1988)
Toyota Corsa/Tercel
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )1NT

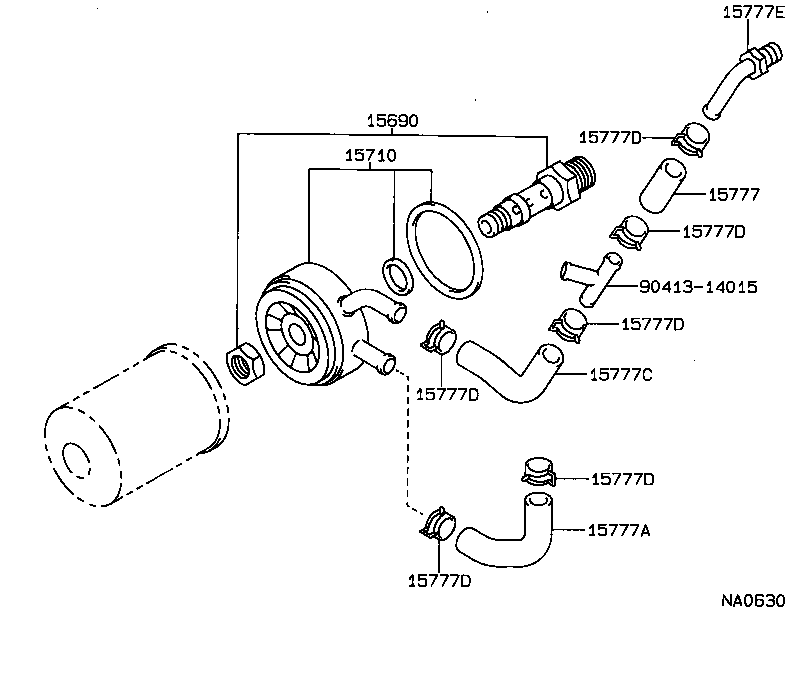

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-55010 |
1NT..NL30 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-55010 |
1NT..NL30 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15777-55020 |
1NT..NL30 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15778-55010 |
1NT..NL30 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15779-55010 |
1NT..NL30 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90467-20005 |
1NT..NL30 |
6 | ||
| 15777E - UNION | ||||
| 90404-53062 |
1NT..NL30 |
1 | ||
| Common parts | ||||
| 90413-14015 | ||||
