Toyota Corsa/tercel NL30 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-16220	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88596B - PLATE, CAUTION, NO.1
88596-24010	NL30..5F..(GX,TX,VC,VL)	05/1988 - 09/1990	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12040	EL31,NL30..GX,TX,VC,VL	10/1989 - 09/1990	1
88891A - PACKING A (FOR COOLER)
88578-16150	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88891B - PACKING B (FOR COOLER)
88578-16150	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88891D - PACKING D (FOR COOLER)
88578-16160	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	2
88891D - PACKING D (FOR COOLER)
88578-16160	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	2
Common parts
88467-14070
88467-16070
88578-16140
90099-04405
90099-05164
90099-32119
90099-32135
90119-06336
93315-54010
93385-56025
Linked diagrams
1603

Part #	Description	Period	Qty
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16100	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	EL31,NL30..GX,TX,VC,VL 400G	05/1988 - 10/1989	1
90986-02004	EL31,NL30..GX,TX,VC,VL 250G	10/1989 - 09/1990	1
90986-02002	EL31,NL30..GX,TX,VC,VL 300G	11/1988 - 10/1989	1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1G130	NL30..5F..(GX,TX,VC,VL)	05/1988 - 09/1990	1
88605-1G110	NL30..5F..(GX,TX,VC,VL) ｱﾘ(ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ)	05/1988 - 09/1990	1
88645H - SWITCH, PRESSURE NO.1
88645-16030	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16110	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16140	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-16020	EL31,NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16460	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16440	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16450	NL30..GX,TX,VC,VL	05/1988 - 09/1990	1
Common parts
82711-12200
88467-14040
88467-22060
88688-16190
88688-16200
88688-16230
88688-16500
88714-16040
88714-95J06
88718-10300
88718-16270
88718-16320
88718-16330
88718-16340
88718-16350
88718-24030
90091-20613
90091-20619
90091-20809
90119-06126
90119-06157
90119-06336
90179-06032
90464-00422
91651-60816
91651-60835
93385-56025

NL30-LHMNX (1988)

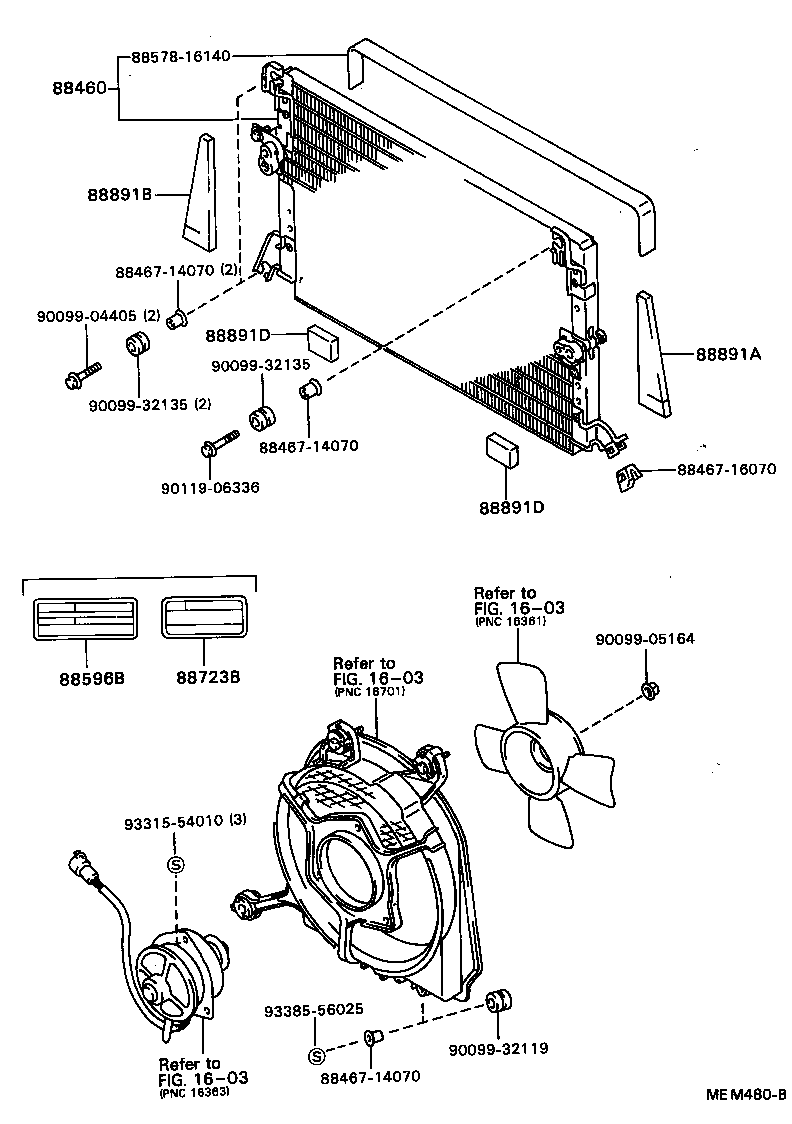

ILLUST NO. 1 OF 2(8805- )NL30

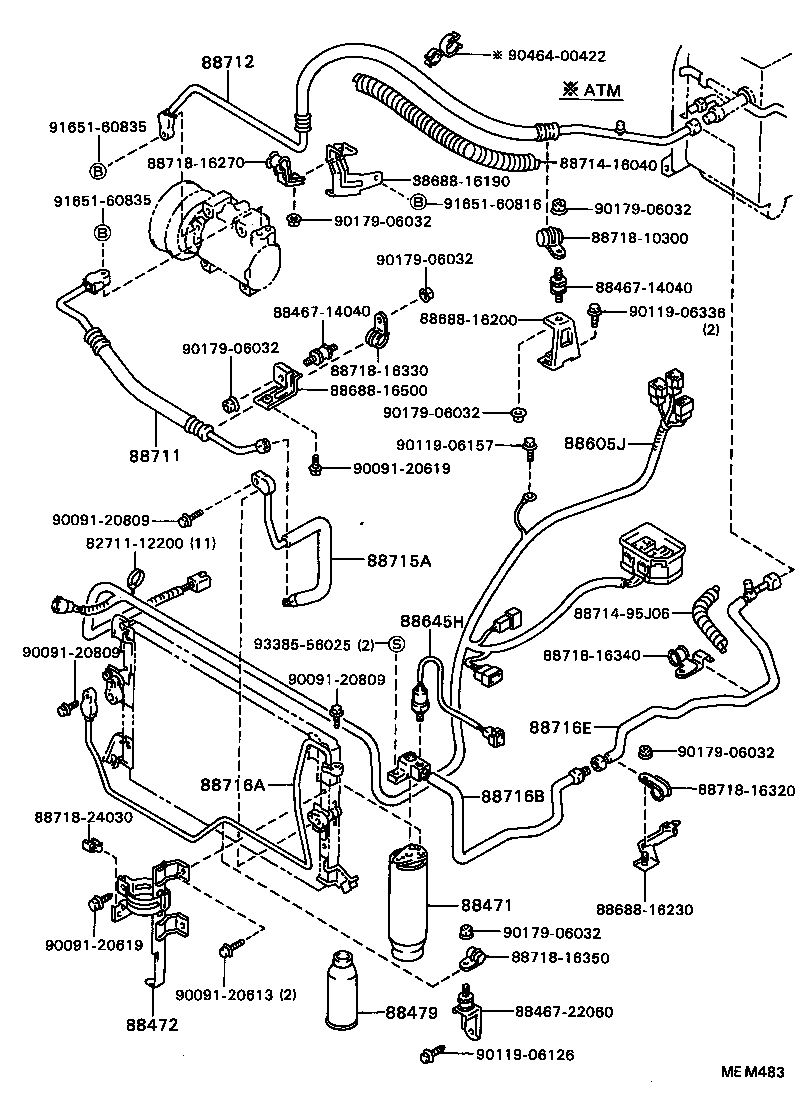

ILLUST NO. 2 OF 2(8805- )NL30
