NL30-LHMNX (1986)
Toyota Corsa/Tercel

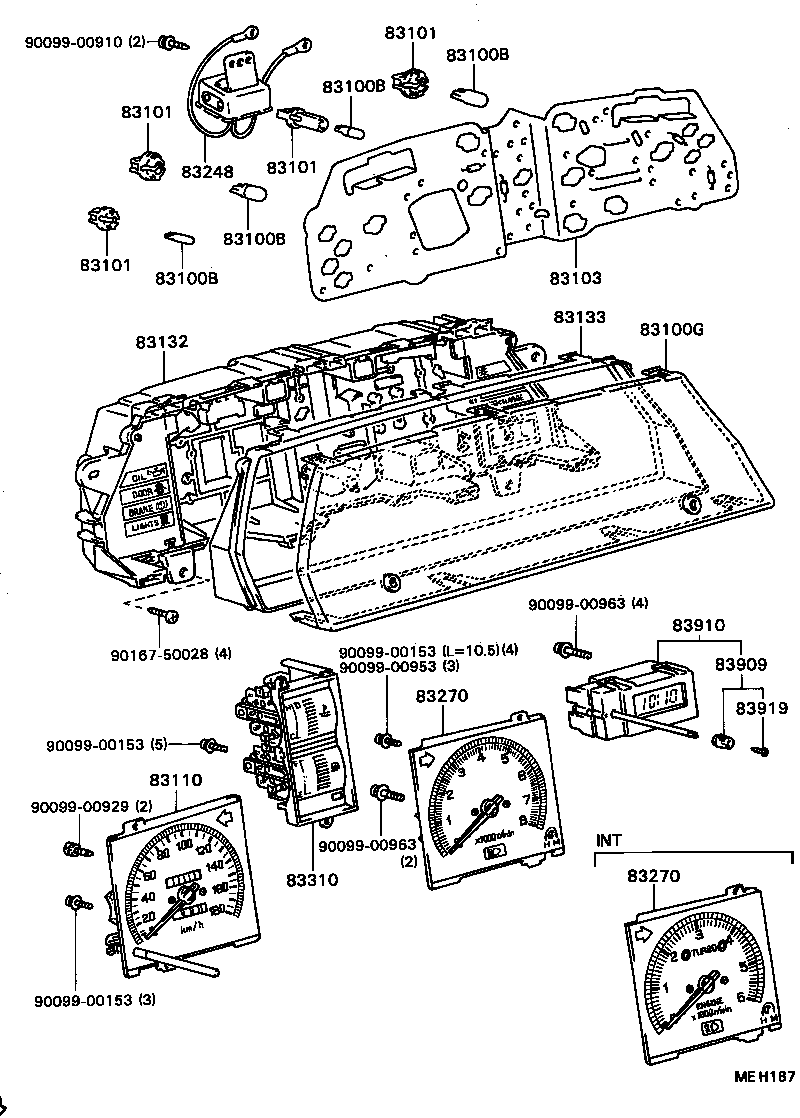

ILLUST NO. 1 OF 3(8605- )4FC,5F..EX,GX,TX,VC,VL,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EL3#,NL30 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
NL30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EL3#,NL30 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
NL30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EL3#,NL30 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
NL30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
7 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
EL3#,NL30 12V 3.4W,12V 3.4W |
11 | ||
| 90981-11018 |
NL30 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
7 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16430 |
NL30 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BULB,12V 3.4W |
12 | ||
| 83101-14040 |
NL30 BULB,12V 1.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BULB,12V 3.4W |
12 | ||
| 83101-14040 |
NL30 BULB,12V 1.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BULB,12V 3.4W |
12 | ||
| 83101-14040 |
NL30 BULB,12V 1.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX BULB,12V 3.4W |
12 | ||
| 83101-14040 |
NL30 BULB,12V 1.4W |
7 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1G510 |
NL30..5F |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G140 |
NL30 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-16870 |
NL30 |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-16890 |
NL30 |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-16050 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16570 |
NL30 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16570 |
NL30 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16590 |
NL30 |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
NL30 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16140 |
NL30 |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
NL30 |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 90167-50028 | ||||
ILLUST NO. 2 OF 3(8605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16220 |
NL30..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16220 |
NL30..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16220 |
NL30..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16220 |
NL30..5F |
1 | ||
| Common parts | ||||
| 83791-16060 | ||||
| 83791-16080 | ||||
| 83791-30060 | ||||
| 91651-40614 | ||||

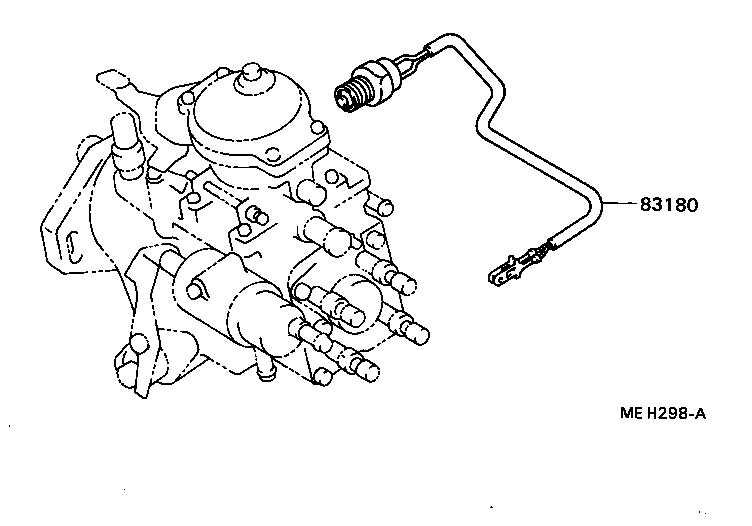

ILLUST NO. 3 OF 3(8605- )NL30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-16010 |
NL30 |
1 | ||
