NL30-LHMNX (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

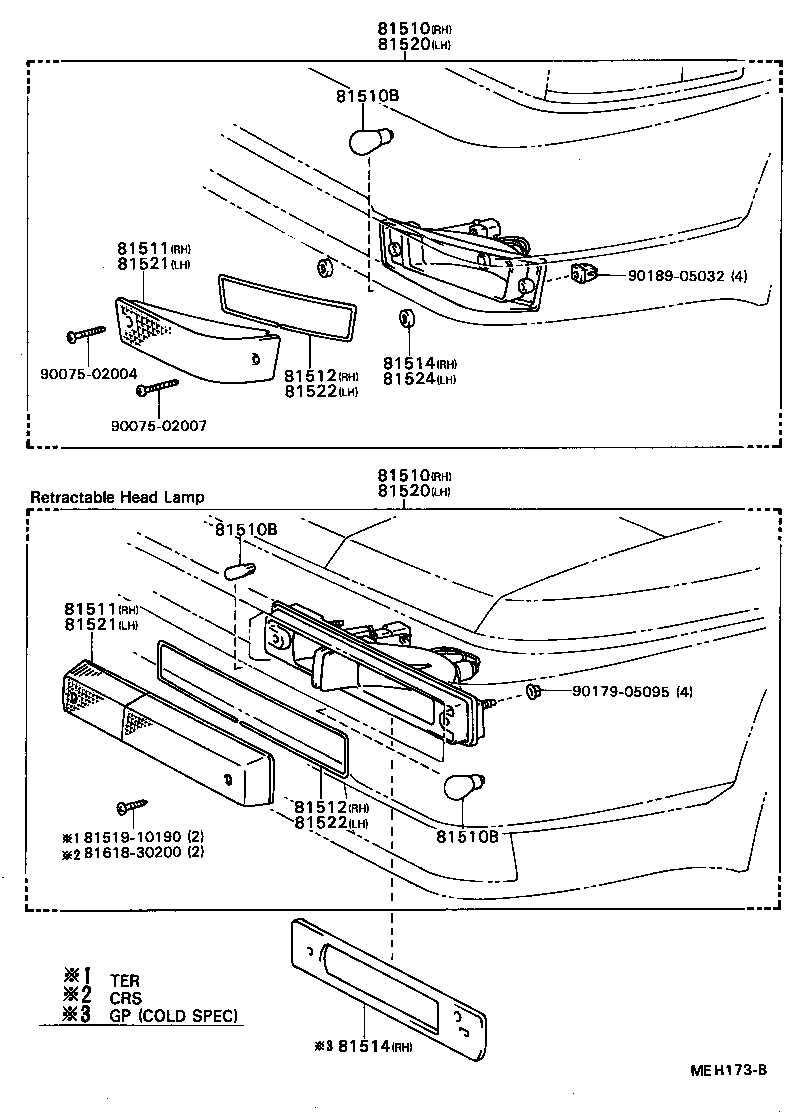

Click highlighted areas on diagram

diagram 81510 81510 81510B 81510B 81510B 81511 81511 81512 81512 81514 81514 8151910190 81520 81520 81521 81521 81522 81522 81524 8161830200 9007502004 9007502007 9017905095 9018905032
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80039

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-80039

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

EL3#,NL30

12V 23W,12V 23W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

EL3#,NL30

12V 23W,12V 23W(TURN)

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

EL3#,NL30

12V 23W,12V 23W(TURN)

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81514-20330

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81514-20330

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80039

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-80039

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-16060

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81514-20330

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 2
Common parts
81519-10190
81618-30200
90075-02004
90075-02007
90179-05095
90189-05032
