NL30-LHMDX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )NL30..5F

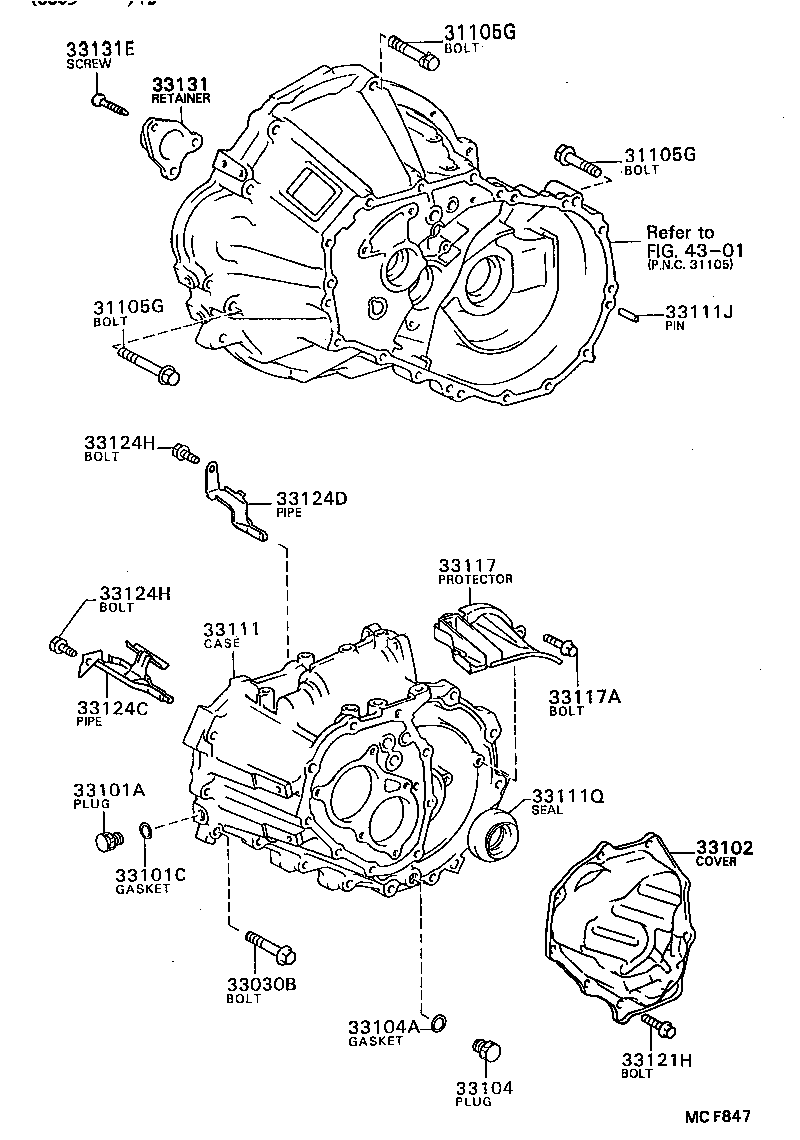

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33102 33104 33104A 33111 33111J 33111Q 33117 33117A 33121H 33124C 33124D 33124H 33124H 33131 33131E 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12042

NL30..5F

*12−1.25PX75−30

 1
91611-61025

NL30..5F

*10−1.25PX25−25

 2
90119-12168

NL30..5F

*12−1.25PX55−30

 2
90105-10077

NL30..5F

*10−1.25PX43−26

 1
91621-60614

NL30..5F

*6−1.00PX14−14

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12042

NL30..5F

*12−1.25PX75−30

 1
91611-61025

NL30..5F

*10−1.25PX25−25

 2
90119-12168

NL30..5F

*12−1.25PX55−30

 2
90105-10077

NL30..5F

*10−1.25PX43−26

 1
91621-60614

NL30..5F

*6−1.00PX14−14

 1
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12042

NL30..5F

*12−1.25PX75−30

 1
91611-61025

NL30..5F

*10−1.25PX25−25

 2
90119-12168

NL30..5F

*12−1.25PX55−30

 2
90105-10077

NL30..5F

*10−1.25PX43−26

 1
91621-60614

NL30..5F

*6−1.00PX14−14

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08086

EL3#,NL30..MTM..(CBR,EFI,TD)

*8−1.25PX45−27.5

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

EL3#,NL30..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

EL3#,NL30..MTM

 1
33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33102-10020

EL31,NL30..5F..(CBR,EFI,TD)

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

EL3#,NL30..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

EL3#,NL30..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-10071

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

EL3#,NL30..MTM

長さ=23,外径=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

EL3#,NL30..MTM

 1
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-17010

EL3#,NL30..MTM

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

EL3#,NL30..MTM

 2
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
90119-08494

EL3#,NL30..MTM..(CBR,EFI,TD)

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-10010

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-10020

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

EL3#,NL30..MTM

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

EL3#,NL30..MTM

 2
33131 - RETAINER, BEARING, FRONT(MTM)
33131-12071

NL30..5F

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

NL30..5F

 3
