NL30-LHMDX (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )NL30

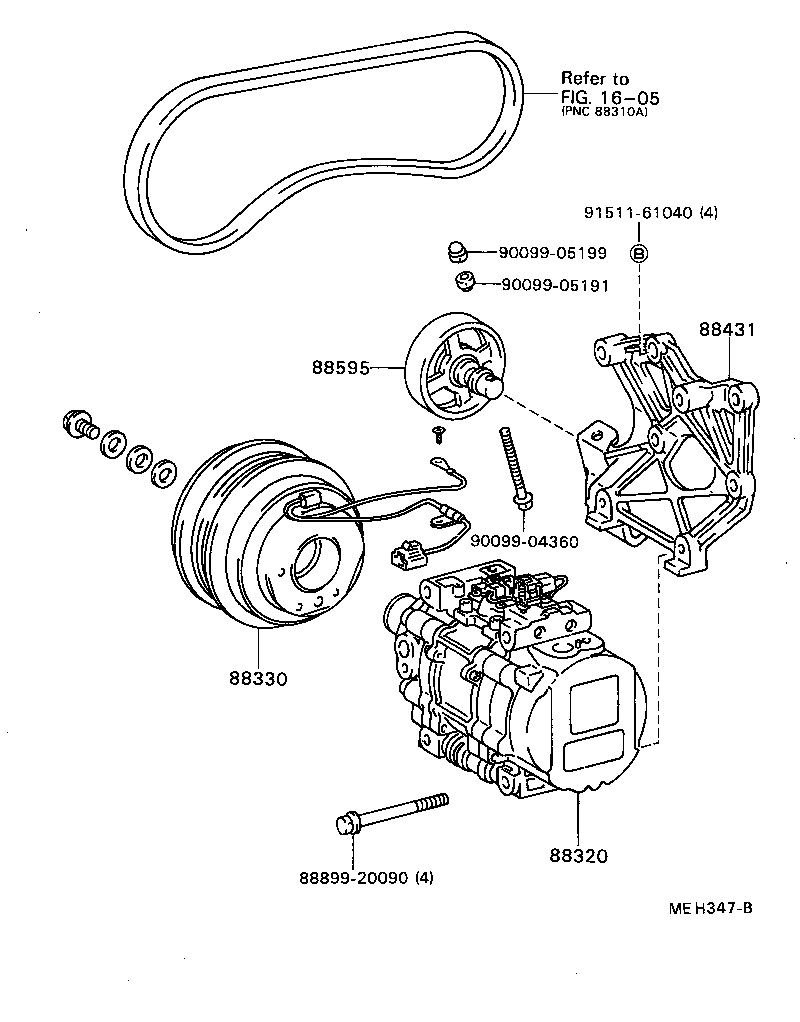

Click highlighted areas on diagram

diagram 1605 88320 88330 88431 88595 8889920090 9009904360 9009905191 9009905199 9151161040
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-16080

EL3#,NL30

W/PS & COOLER SW.=2-BUTTON

 1
88320-16070

EL3#,NL30

W/O PS & COOLER SW.=2-BUTTON

 1
88320-16071

EL3#,NL30

W/O PS & COOLER SW.=2-BUTTON

 1
88320-16071

NL30..GX,TX,VC,VL

W/O PS

 1
88320-16081

EL3#,NL30

W/PS & COOLER SW.=2-BUTTON

 1
88330 - CLUTCH ASSY, MAGNET
88410-16030

NL30

 1
88410-16031

NL30

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16050

NL30

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16040

NL30

 1
Common parts
88899-20090
90099-04360
90099-05191
90099-05199
91511-61040
Linked diagrams
1605
