NL30-LHMDX (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

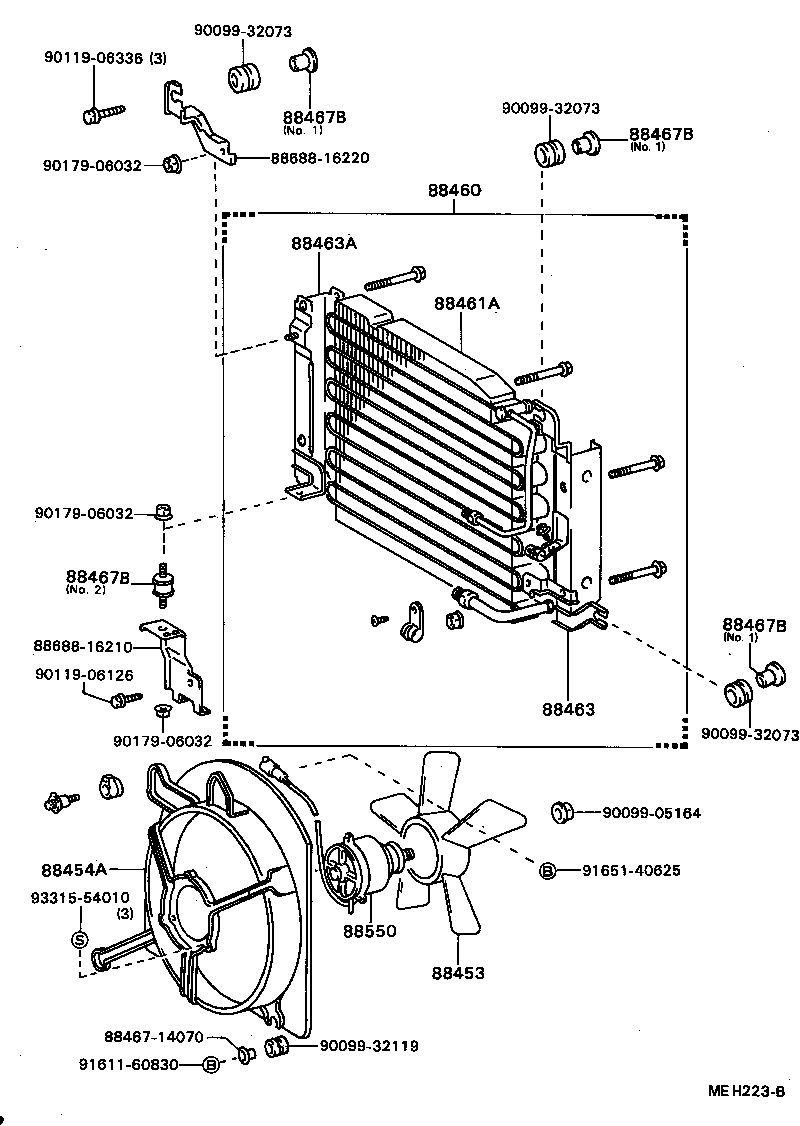

ILLUST NO. 1 OF 2(8605- )NL30..5F

Click highlighted areas on diagram

diagram 88453 88454A 88460 88461A 88463 88463A 8846714070 88467B 88467B 88467B 88467B 88550 8868816210 8868816220 9009905164 9009932073 9009932073 9009932073 9009932119 9011906126 9011906336 9017906032 9017906032 9017906032 9161160830 9165140625 9331554010
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
16361-55020

NL30..5F

 1
88454A - SHROUD, FAN
16711-55020

NL30..5F

 1
88460 - CONDENSER ASSY, COOLER
88460-16160

NL30

 1
88461A - CORE, COOLER CONDENSER
88461-16070

NL30

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-16150

NL30

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-16160

NL30

 1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-15080

NL30..5F

 1
Common parts
88467-14070
88688-16210
88688-16220
90099-05164
90099-32073
90099-32119
90119-06126
90119-06336
90179-06032
91611-60830
91651-40625
93315-54010

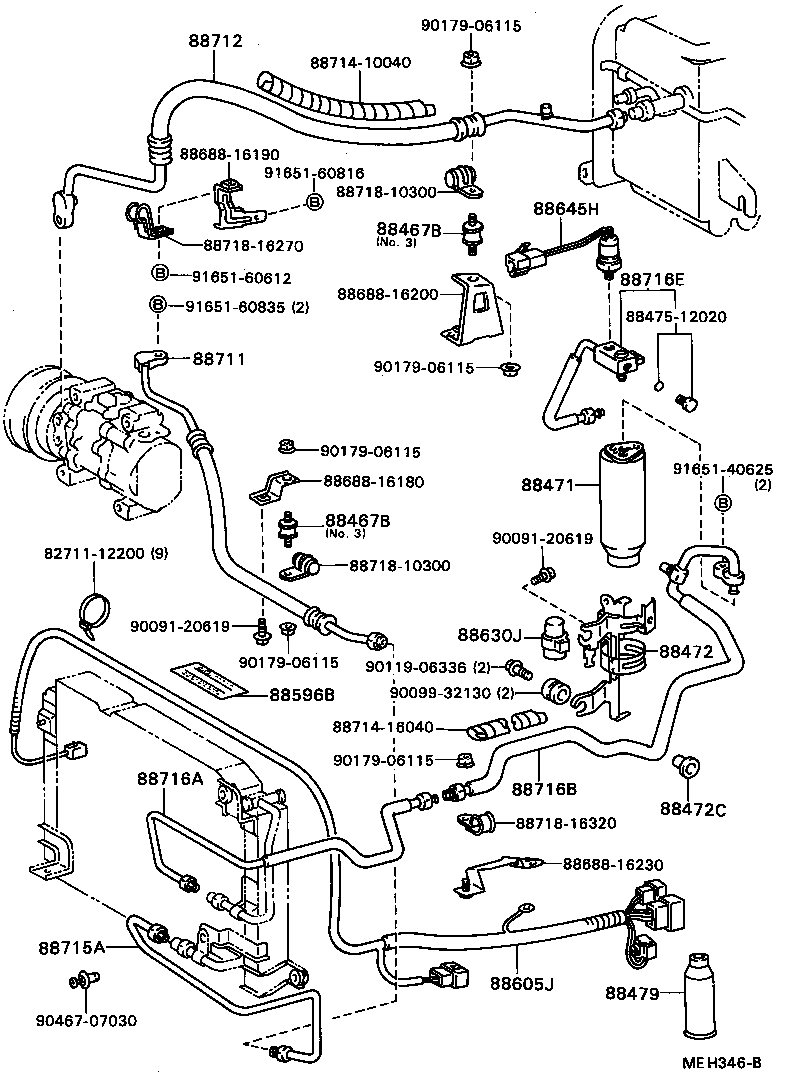

ILLUST NO. 2 OF 2(8605- )NL30

Click highlighted areas on diagram

diagram 8271112200 88467B 88467B 88471 88472 88472C 8847512020 88479 88596B 88605J 88630J 88645H 8868816180 8868816190 8868816200 8868816230 88711 88712 8871410040 8871416040 88715A 88716A 88716B 88716E 8871810300 8871810300 8871816270 8871816320 9009120619 9009120619 9009932130 9011906336 9017906115 9017906115 9017906115 9017906115 9017906115 9046707030 9165140625 9165160612 9165160816 9165160835
Part # Description Qty Price
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-14040

NL30

NO.3

 2
88467-16040

NL30

NO.2

 1
88469-16040

NL30

NO.1

 3
88471 - TANK, RECEIVER AIR CONDITIONER
88471-10030

EL3#,NL30

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16070

EL3#,NL30

 1
88472-16070

EL3#,NL30..CBR,TD

 1
88472C - INSULATOR, RECEIVER BRACKET
88467-14070

EL3#,NL30

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

EL3#,NL30

400G

 2
88596B - PLATE, CAUTION, NO.1
88596-24010

NL30..5F

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-16510

NL30..5F

W/O PS

 1
88605-16500

NL30..5F

W/PS

 1
88605-16730

NL30..5F

W/PS

 1
88605-16750

NL30..5F..(GX,TX,VC,VL)

W/O PS

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-14030

NL30..5F

 1
88645H - SWITCH, PRESSURE NO.1
88645-16010

EL3#,NL30

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16090

NL30

 1
88711-16070

NL30

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16110

NL30

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-16010

NL30

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16330

NL30

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16340

NL30..5F

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16310

EL3#,NL30

 1
Common parts
82711-12200
88475-12020
88688-16180
88688-16190
88688-16200
88688-16230
88714-10040
88714-16040
88718-10300
88718-16270
88718-16320
90091-20619
90099-32130
90119-06336
90179-06115
90467-07030
91651-40625
91651-60612
91651-60816
91651-60835
