NL30-LHMDX (1986)

Toyota Corsa/Tercel

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(8605- )5DS

Click highlighted areas on diagram

diagram 82151 82151A 82152 82152A 82153 82154 82161 82162 82163 82171 82184 82185 82187 82817A 82817B 8281916110 9011906067 9011906067 9011906067 9011906067
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-16290

EL30,NL30..5DS

 1
82171 - WIRE, ROOF, NO.1
82171-16060

EL3#,NL30

 1
82184 - WIRE, BACK DOOR, NO.1
82184-16130

EL3#,NL30..5DS

 1
82185 - WIRE, BACK DOOR, NO.2
82185-16140

EL3#,NL30..5DS

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-16050

EL3#,NL30..5DS

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100

EL3#,NL30

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16200

EL3#,NL30..5DS

 1
Common parts
82819-16110
90119-06067

ILLUST NO. 3 OF 3(8605- )

Click highlighted areas on diagram

diagram 8271110190 8271110210 8271110250 8271110290 8271112200 8271112590 8271114110 8271114640 8271116120 8271116370 8271116420 8271116430 8271116450 8271116460 8271116480 8271116490 8271120490 8271122300 8271122540 8271124010 8271124070 8271130550 8271130660 9048026043
Part # Description Qty Price
Common parts
82711-10190
82711-10210
82711-10250
82711-10290
82711-12200
82711-12590
82711-14110
82711-14640
82711-16120
82711-16370
82711-16420
82711-16430
82711-16450
82711-16460
82711-16480
82711-16490
82711-20490
82711-22300
82711-22540
82711-24010
82711-24070
82711-30550
82711-30660
90480-26043

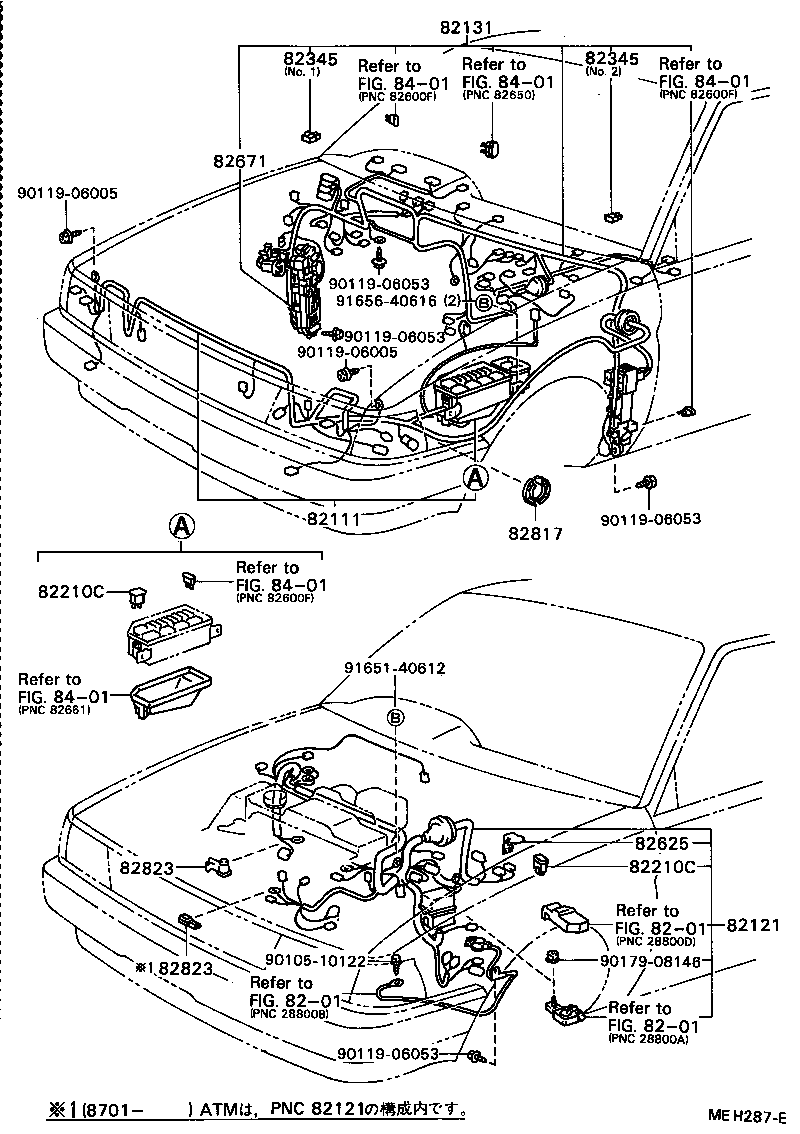

ILLUST NO. 1 OF 3(8605- )NL30

Click highlighted areas on diagram

diagram 8201 8201 8201 82111 82121 82131 82210C 82210C 82345 82345 82625 82671 82817 82823 82823 8401 8401 8401 8401 8401 9010510122 9011906005 9011906005 9011906053 9011906053 9011906053 9011906053 9017908146 9165140612 9165640616
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-16450

NL30..5F

 1
82121 - WIRE, ENGINE
82121-16250

NL30

 1
82121-16251

NL30..5F

 1
82131 - WIRE, COWL
82131-16720

NL30..5F

 1
82131-16721

NL30..5F..(GX,TX,VC,VL)

 1
82210C - FUSIBLE LINK
90982-08203

NL30

80A,ｵｽ端子,黒,80A

 2
90982-08188

EL3#,NL30

30A,ﾒｽ端子,ﾋﾟﾝｸ,30A

 4
82210C - FUSIBLE LINK
90982-08203

NL30

80A,ｵｽ端子,黒,80A

 2
90982-08188

EL3#,NL30

30A,ﾒｽ端子,ﾋﾟﾝｸ,30A

 4
82625 - TERMINAL, FUSIBLE LINK
82625-12020

NL30..5F

 1
82671 - BLOCK, JUNCTION
82671-16050

EL3#,NL30

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22280

EL3#,NL30

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

EL3#,NL30

ALTERNATOR

 1
82823-20030

EL3#,NL30

STARTER

 1
82823-20040

EL3#,NL30

ALTERNATOR

 1
82823-20030

NL30..5F

STARTER

 1
82823 - CAP, TERMINAL, NO.1
82823-22050

EL3#,NL30

ALTERNATOR

 1
82823-20030

EL3#,NL30

STARTER

 1
82823-20040

EL3#,NL30

ALTERNATOR

 1
82823-20030

NL30..5F

STARTER

 1
Common parts
90105-10122
90119-06005
90119-06053
90179-08146
91651-40612
91656-40616
Linked diagrams
8201
8401
