NL30-LGPDX (1988)
Toyota Corsa/Tercel

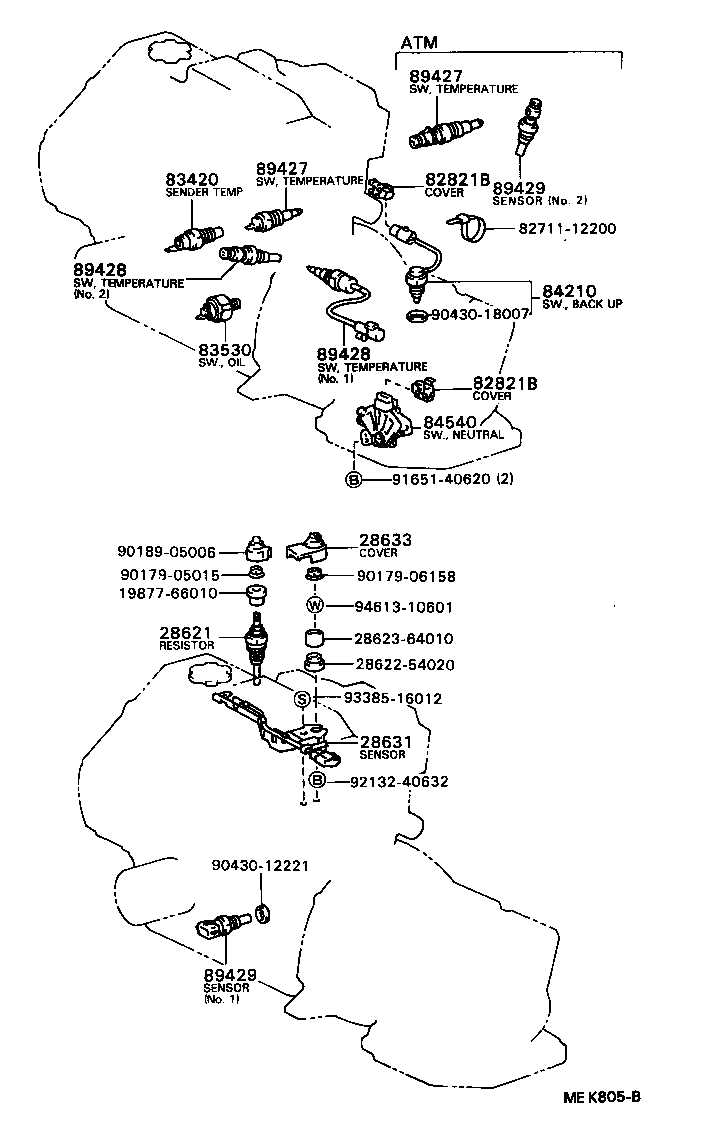

ILLUST NO. 1 OF 6(8805- )NL30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-64020 |
1NT..NL30 |
1 | ||
| 28631 - SENSOR, GLOW PLUG CURRENT | ||||
| 28631-55010 |
1NT..NL30 |
1 | ||
| 28633 - COVER, CURRENT SENSOR | ||||
| 28633-55010 |
1NT..NL30 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-16030 |
EL3#,NL30..ATM NEUTRAL START SW. |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-16030 |
EL3#,NL30..ATM NEUTRAL START SW. |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EL3#,NL30 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
NL30 |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-16030 |
EL3#,NL30..ATM |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16030 |
NL30..4FC |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16030 |
NL30..4FC |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-16010 |
NL30..4FC NO.2 |
1 | ||
| 89422-30020 |
NL30 NO.1 |
1 | ||
| 89429 - SENSOR, OIL TEMPERATURE | ||||
| 89429-16010 |
NL30..4FC NO.2 |
1 | ||
| 89422-30020 |
NL30 NO.1 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-64010 | ||||
| 82711-12200 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 91651-40620 | ||||
| 92132-40632 | ||||
| 93385-16012 | ||||
| 94613-10601 | ||||

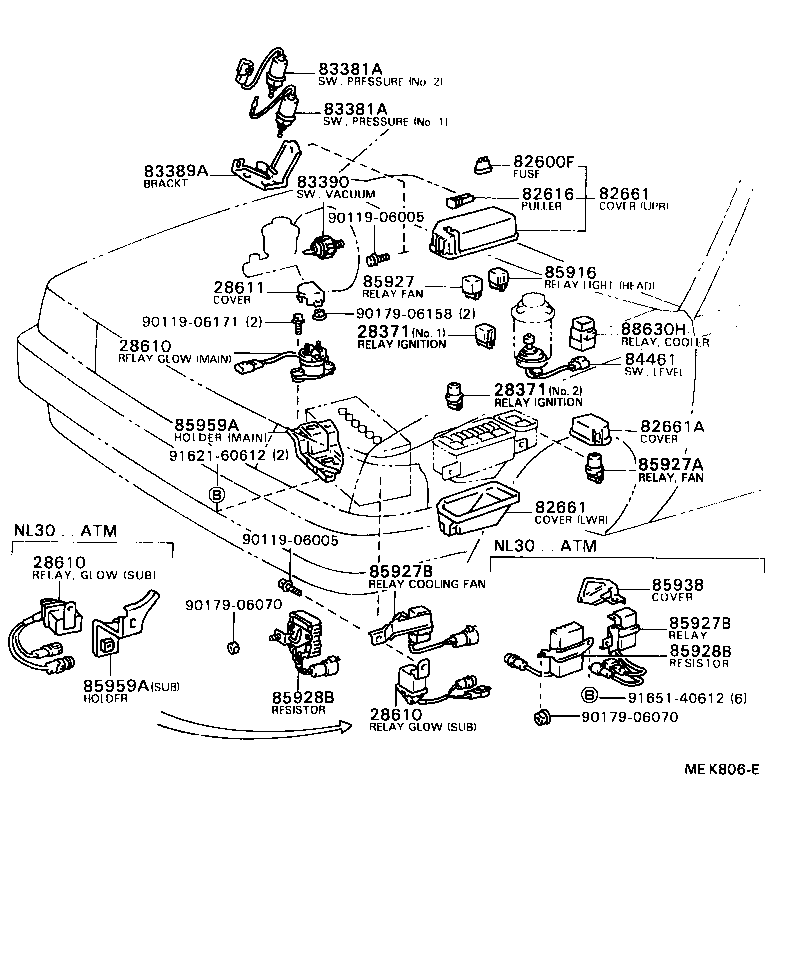

ILLUST NO. 2 OF 6(8805- )NL30
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-55030 |
1NT..NL30..4FC SUB |
1 | ||
| 28610-55010 |
1NT..NL30 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-55030 |
1NT..NL30..4FC SUB |
1 | ||
| 28610-55010 |
1NT..NL30 MAIN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-55030 |
1NT..NL30..4FC SUB |
1 | ||
| 28610-55010 |
1NT..NL30 MAIN |
1 | ||
| 28611 - COVER, GLOW PLUG RELAY | ||||
| 28611-55010 |
1NT..NL30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
EL3#,NL30 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16200 |
EL3#,NL30 下側 |
1 | ||
| 82661-16210 |
NL30..4FC 上側 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16200 |
EL3#,NL30 下側 |
1 | ||
| 82661-16210 |
NL30..4FC 上側 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-16190 |
EL31,NL30..(3FC,4F,5F)..(GX,TX,VC,VL) ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82661-16180 |
NL30 |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-16050 |
NL30 NO.1 |
1 | ||
| 83381-16060 |
NL30 NO.2 |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-16050 |
NL30 NO.1 |
1 | ||
| 83381-16060 |
NL30 NO.2 |
1 | ||
| 83389A - BRACKET, PRESSURE SWITCH | ||||
| 83389-16030 |
NL30 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-30020 |
NL30 |
1 | ||
| 83390-27120 |
NL30 |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
NL30 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL3#,NL30 TAIL LAMP |
1 | ||
| 90987-02006 |
EL3#,NL30 HEAD LAMP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-04002 |
NL30..4FC |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02004 |
NL30..4FC |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 85925-16020 |
NL30..4FC |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 85925-16020 |
NL30..4FC |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-16020 |
NL30..4FC |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-16020 |
NL30..4FC |
1 | ||
| 85938 - COVER, COOLING FAN RESISTOR | ||||
| 85938-16010 |
NL30..4FC |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-16020 |
NL30..4FC SUB |
1 | ||
| 85959-16010 |
NL30..4FC MAIN |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-16020 |
NL30..4FC SUB |
1 | ||
| 85959-16010 |
NL30..4FC MAIN |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 88630-16090 |
EL31,NL30..(3FC,4F,5F)..(GX,TX,VC,VL) |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06171 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 91621-60612 | ||||
| 91651-40612 | ||||

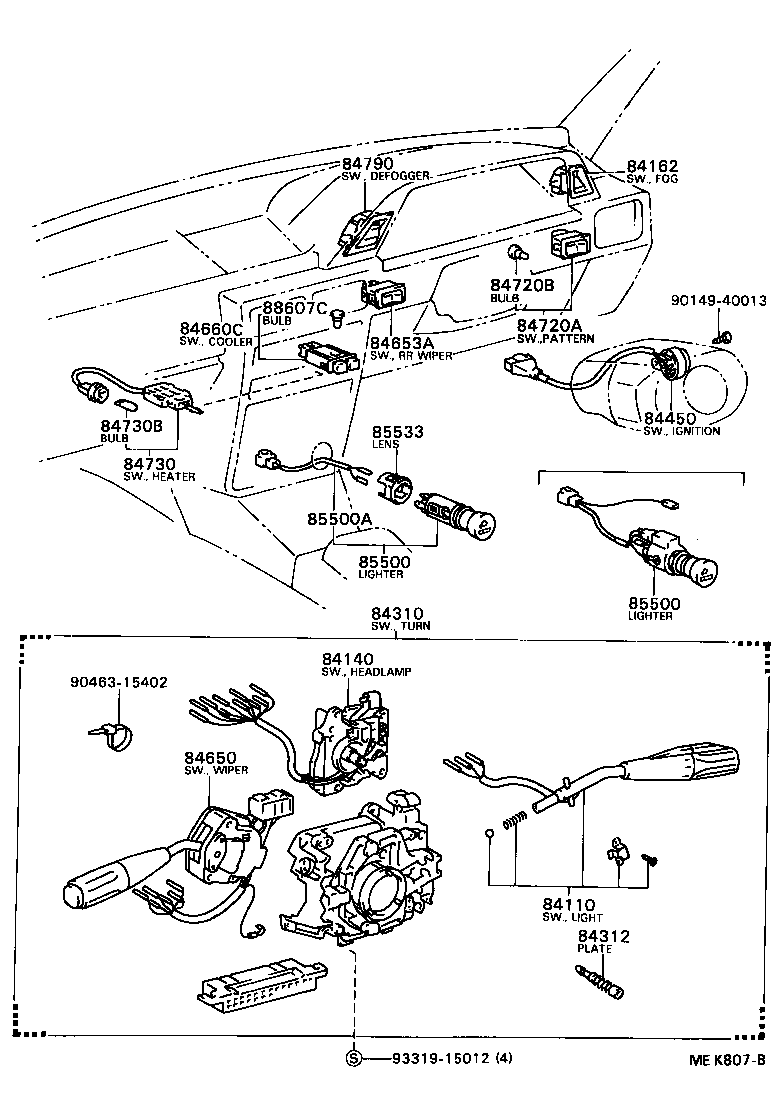

ILLUST NO. 3 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19815 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX MATSUSHITA |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-16070 |
EL3#,NL30 東海理化 |
1 | ||
| 84140-16090 |
EL3#,NL30 MATSUSHITA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16380 |
EL31,NL30..GX,TX,VC,VL |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
EL3#,NL30 MATSUSHITA |
1 | ||
| 84312-32010 |
EL3#,NL30 東海理化 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
EL3#,NL30 |
1 | ||
| 84450-16060 |
EL3#,NL30 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-16330 |
EL31,NL30..GX,TX,VC,VL MATSUSHITA |
1 | ||
| 84652-16380 |
EL31,NL30..GX,TX,VC,VL 東海理化 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12120 |
EL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX |
1 | ||
| 84653-12120 |
EL30,NL30..TX,VC |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16051 |
EL31,NL30..EX,GP,SXI,UX,VSI,VU,VX |
1 | ||
| 84660-16051 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16070 |
EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX |
1 | ||
| 84732-16100 |
EL31,NL30..EX,GP,SXI,UX,VSI,VU,VX ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 81850-16230 |
EL31,NL30..EX,GP,SXI,UX,VSI,VU,VX 12V 1.4W,ｸﾞﾘｰﾝ |
1 | ||
| 90981-11014 |
EL3#,NL30 14V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16050 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16100 |
EL3#,NL30..GX,TX,VC,VL |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16100 |
EL3#,NL30..GX,TX,VC,VL |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-20060 |
EL31,NL30..GX,TX,VC,VL 14V 0.08A |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90463-15402 | ||||
| 93319-15012 | ||||

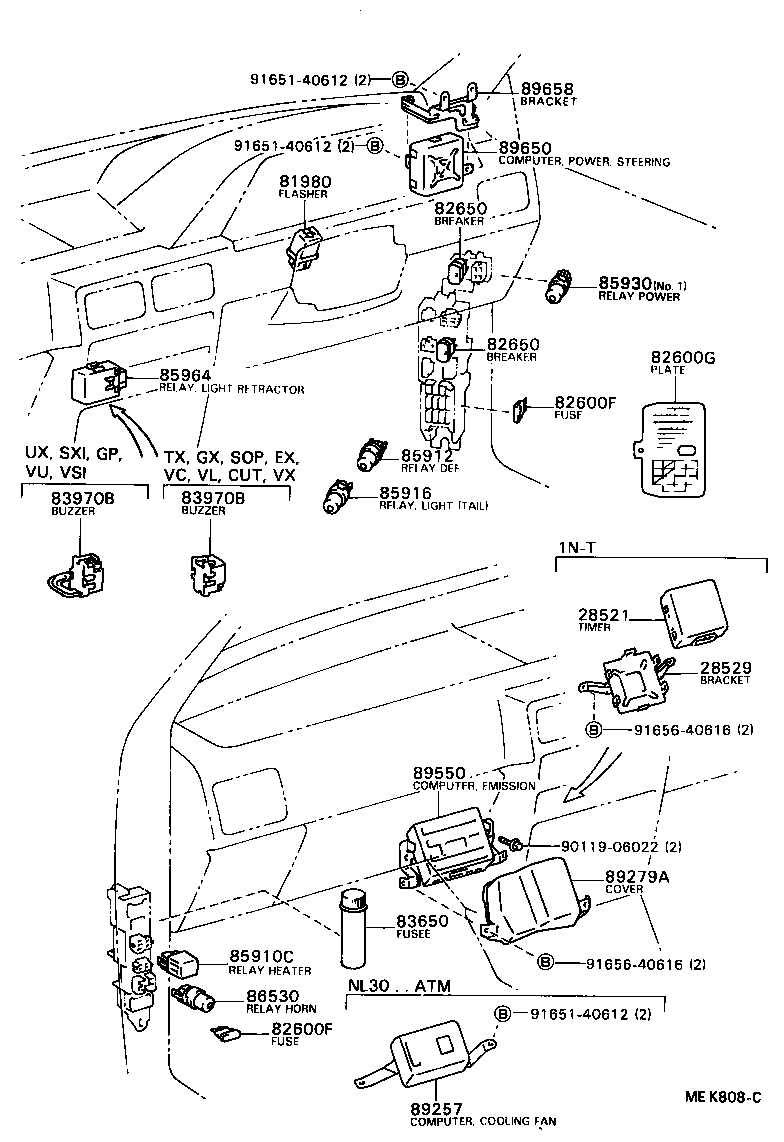

ILLUST NO. 4 OF 6(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-55010 |
1NT..NL30 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-55010 |
1NT..NL30 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
EL3#,NL30 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09005 |
EL3#,NL30 7.5A |
4 | ||
| 90982-09005 |
EL3#;NL30..4FC 7.5A |
2 | ||
| 90982-09003 |
EL3#,NL30 15A |
1 | ||
| 90982-09002 |
EL3#,NL30 10A |
1 | ||
| 90982-09004 |
EL3#,NL30 20A,黄 |
1 | ||
| 90982-09005 |
EL3#,NL30 7.5A |
1 | ||
| 90982-09003 |
EL3#,NL30 15A |
4 | ||
| 90982-07011 |
EL3#,NL30 30A,緑 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-16010 |
EL3#,NL30 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EL3#,NL30 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EL3#,NL30 30A |
2 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
EL3#,NL30 |
1 | ||
| 83970B - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-16010 |
EL3#,NL30..ATM..(CUT,EX,GX,SOP,TX,VC,VL,VX) |
1 | ||
| 83970B - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-16010 |
EL3#,NL30..ATM..(CUT,EX,GX,SOP,TX,VC,VL,VX) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
EL3#,NL30 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX MARUKO |
1 | ||
| 90987-02004 |
NL30;EL3#..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
EL3#,NL30 TAIL LAMP |
1 | ||
| 90987-02006 |
EL3#,NL30 HEAD LAMP |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
EL3#,NL30 MARUKO |
1 | ||
| 90987-02004 |
EL3#,NL30 NIPPONDENSO |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-16020 |
NL30..4FC |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

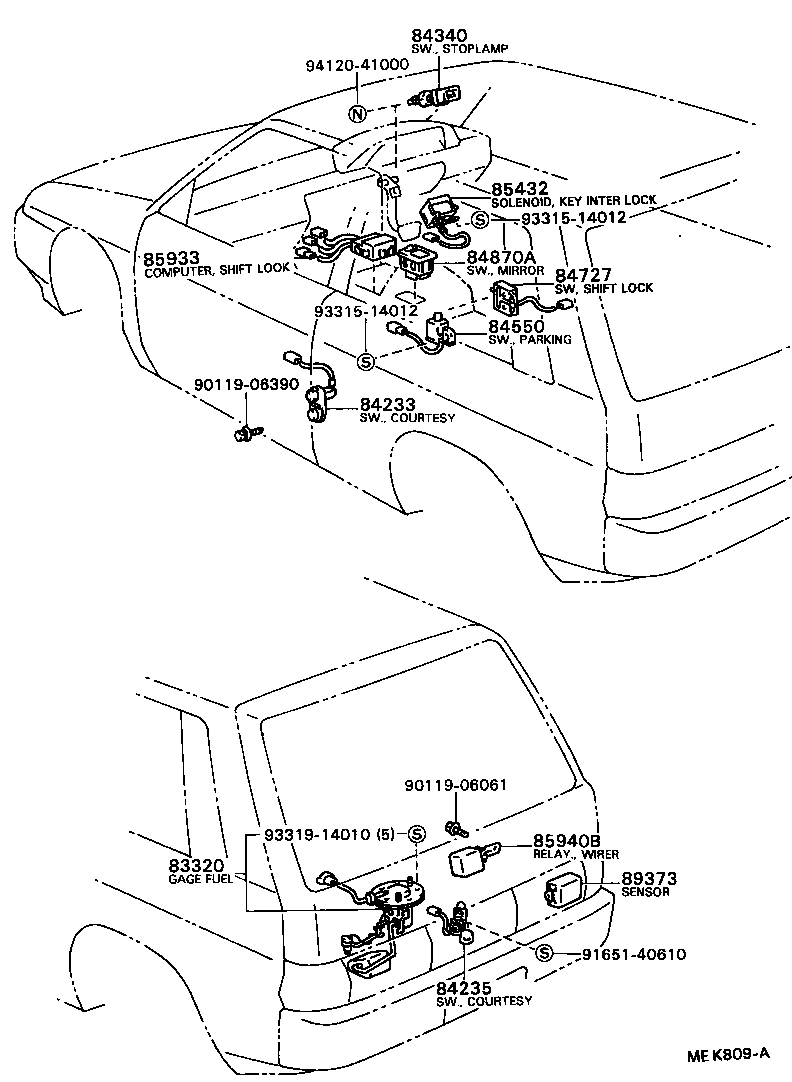

ILLUST NO. 5 OF 6(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80056 |
EL3#,NL30..CUT,GX,SOP,TX,VC,VL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-24010 |
EL3#,NL30..3DS |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16040 |
EL3#,NL30 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
EL3#,NL30 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16030 |
EL3#,NL30 |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-16010 |
EL3#,NL30..ATM |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30050 |
EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-16010 |
EL3#,NL30..ATM |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-16010 |
EL3#,NL30..ATM |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-16060 |
EL31,NL30..EX,GP,SXI,UX,VSI,VU,VX |
1 | ||
| 89373-20170 |
EL31,NL30..EX,GP,SXI,UX,VSI,VU,VX |
1 | ||
| Common parts | ||||
| 90119-06061 | ||||
| 90119-06390 | ||||
| 91651-40610 | ||||
| 93315-14012 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

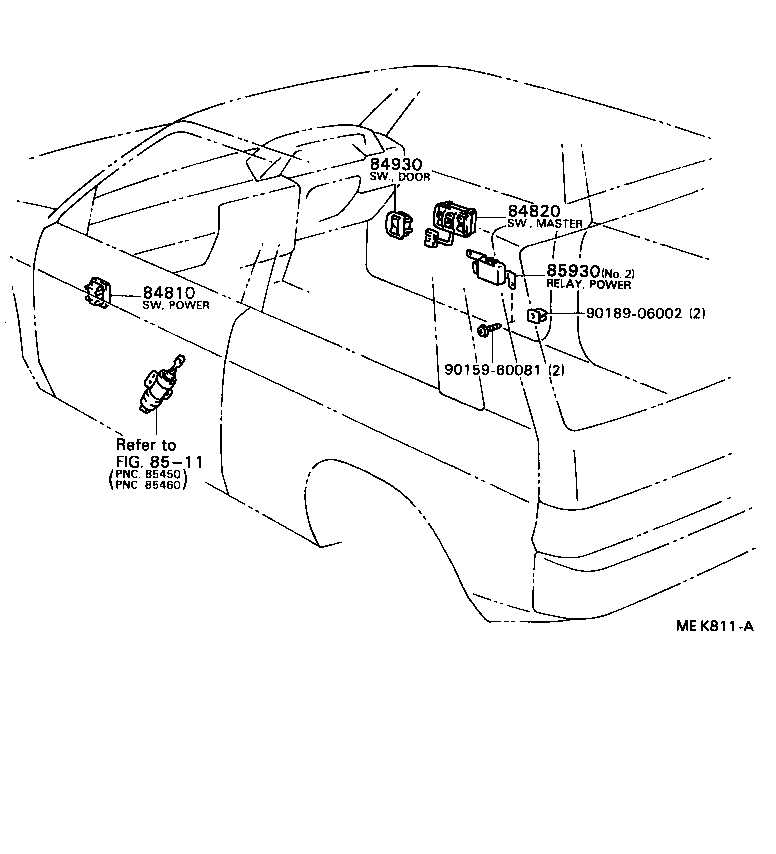

ILLUST NO. 6 OF 6(8805- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1601001 |
EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX BLACK,TRIM2# |
1 | ||
| 84930-1601004 |
EL3#,NL30..CUT,EX,GP,SOP,SXI,UX,VSI,VU,VX BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06002 | ||||
| Linked diagrams | ||||
| 8511 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
