NL30-LGPDX (1988)

Toyota Corsa/Tercel

Production May 1988 - Sep 1990
Engine 1NT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

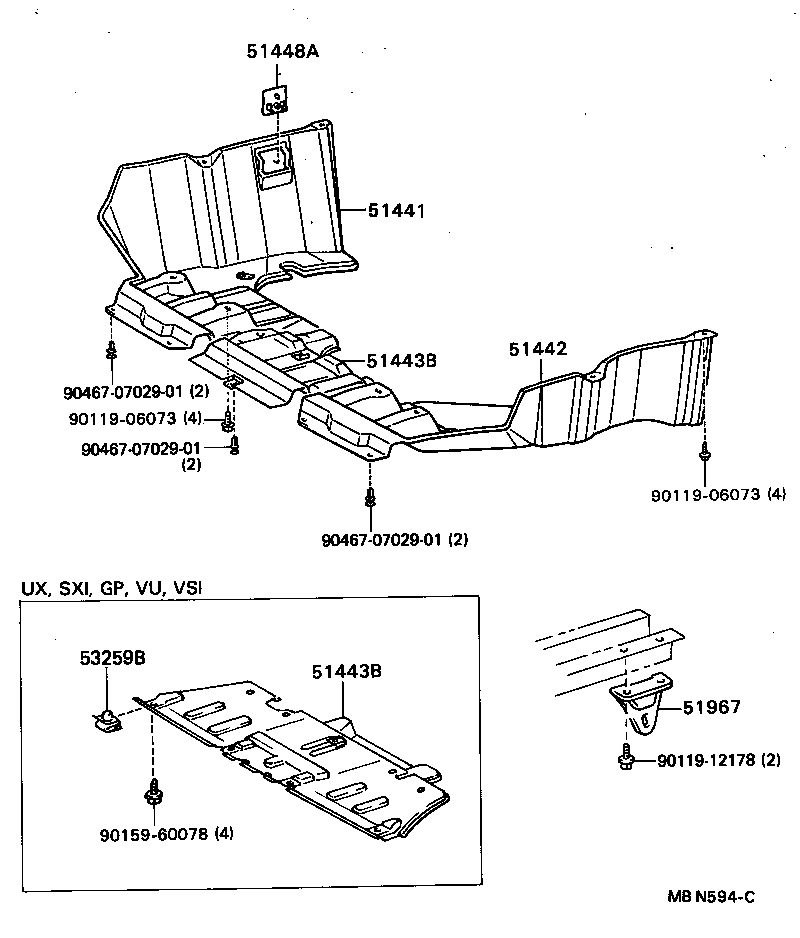

Click highlighted areas on diagram

diagram 51441 51442 51443B 51443B 51448A 51967 53259B 9011906073 9011906073 9011912178 9015960078 904670702901 904670702901 904670702901
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-16030

EL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-16030

EL3#,NL30..ATM..(CUT,EX,GX,SOP,TX,VC,VL,VX)

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-16020

EL31,NL30..GX,TX,VC,VL

 1
51443B - COVER, ENGINE UNDER, NO.3
51443-16020

EL31,NL30..GX,TX,VC,VL

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

EL3#,NL30

 1
51967 - HOOK, TRANSPORT, REAR
51968-16080

EL3#,NL30..CBR,EFI,TD

 1
Common parts
90119-06073
90119-12178
90159-60078
90467-0702901
