NL30-LGMNX (1988)
Toyota Corsa/Tercel
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

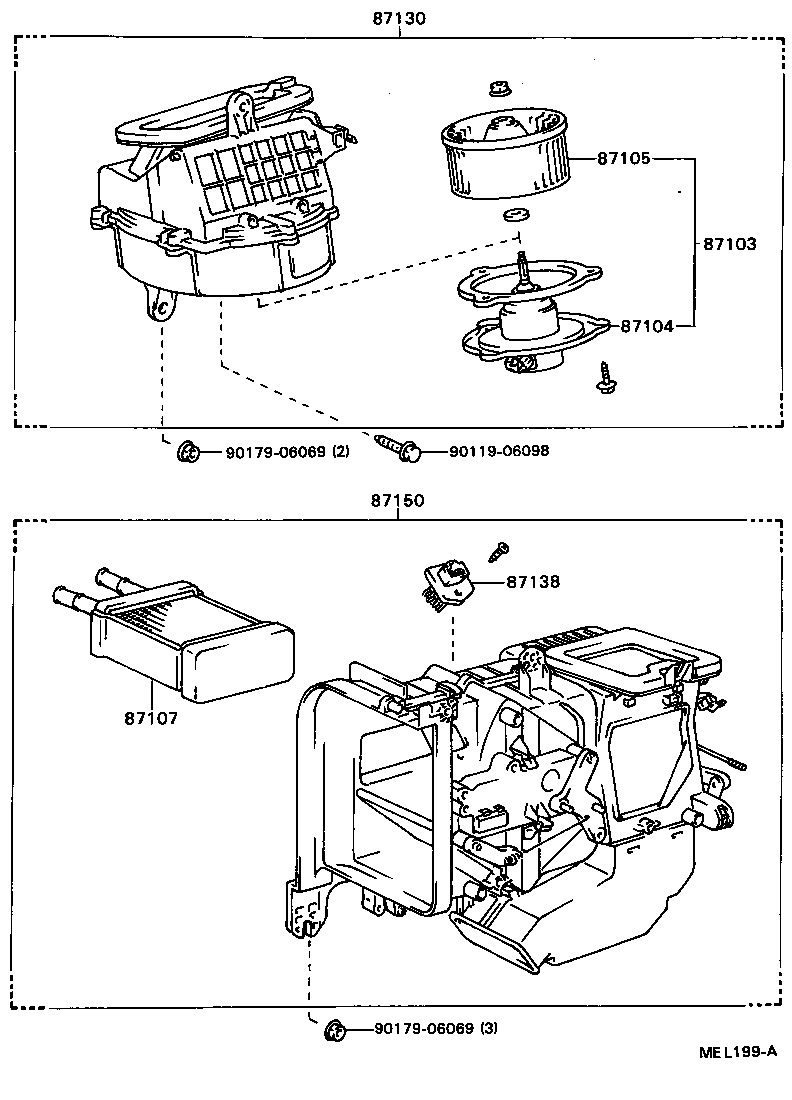

ILLUST NO. 1 OF 2(8805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-16010 |
EL3#,NL30 |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-89110 |
NL30 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14030 |
NL30 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87105-32010 |
EL3#,NL30 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-16130 |
NL30 |
1 | ||
| 87107-16140 |
EL30..5DS..(TX,VC);EL30..CUT,GX,SOP,VL;EL31,NL30..CBR,TBO,TD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-16130 |
EL3#,NL30 |
1 | ||
| 87130-16100 |
NL30 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-16120 |
EL3#,NL30 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-16200 |
EL30..5DS..(TX,VC);EL30..CUT,GX,SOP,VL;EL31,NL30..CBR,TBO,TD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-16190 |
NL30 |
1 | ||
| 87150-16202 |
EL30..5DS..(TX,VC);EL30..CUT,GX,SOP,VL;EL31,NL30..CBR,TBO,TD ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87150-16191 |
NL30 |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-06069 | ||||

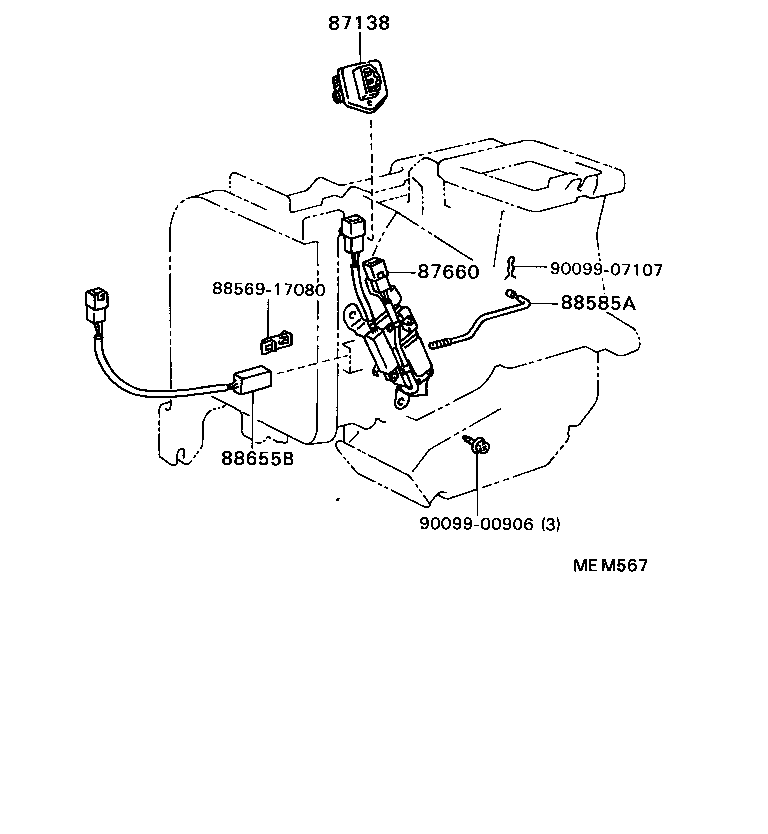

ILLUST NO. 2 OF 2(8805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-16120 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 88569-17080 | ||||
| 90099-00906 | ||||
| 90099-07107 | ||||
