EL55-BGMDK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )EL55

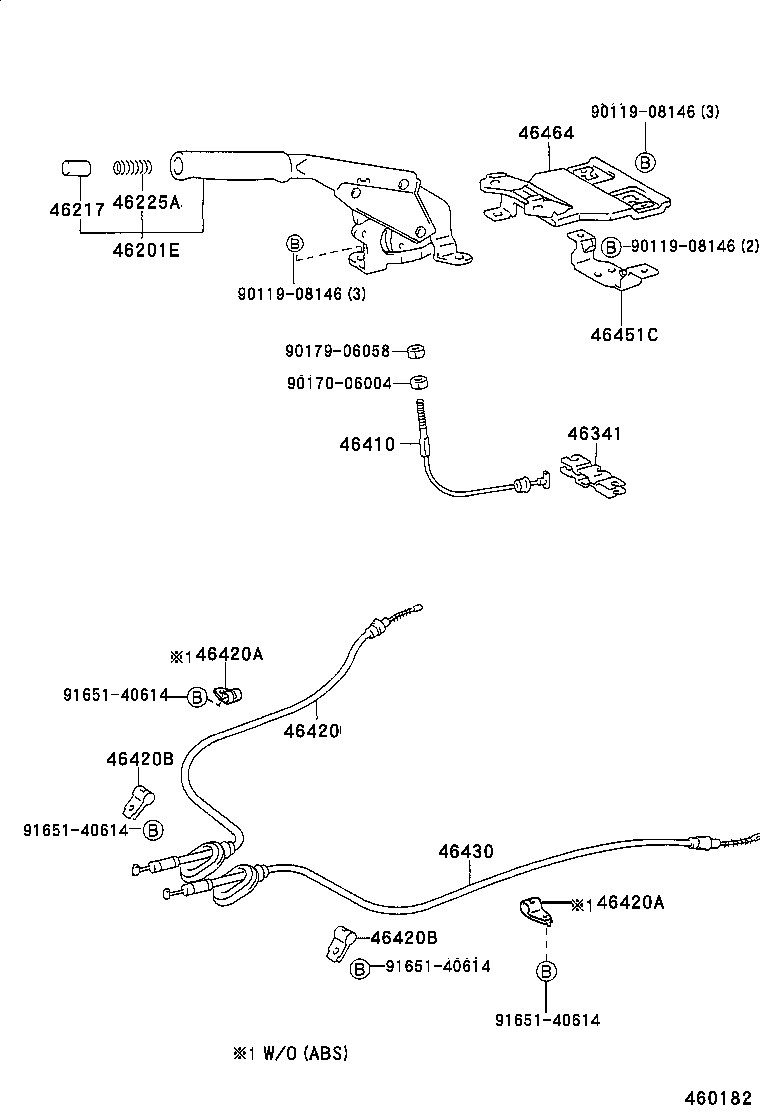

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-16080B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 46201-16080B0 |
EL55 BLUISH GRAY,TRIM1# |
1 | ||
| 46201-16100E1 |
EL55 SANDAL WOOD,TRIM4# |
1 | ||
| 46201-16100B0 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-16030E1 |
EL5#,NL50 SANDAL WOOD,TRIM4# |
1 | ||
| 46217-12020B3 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 46217-12020B2 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 46217-16030B0 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10069 |
EL5#,NL50 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-33010 |
EL55 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-16040 |
EL55 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-16190 |
EL55 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL5#,NL50 |
2 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90461-10641 |
EL5#,NL50 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL5#,NL50 |
2 | ||
| 90949-01585 |
EL5# |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01585 |
EL5#,NL50 |
2 | ||
| 90949-01585 |
EL5# |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-16190 |
EL55 |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-10020 |
EL55 |
1 | ||
| 46464 - PLATE, CABLE CLAMP SUPPORT | ||||
| 46464-16030 |
EL55 |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 91651-40614 | ||||
