Toyota Corsa/tercel EL55 CLUTCH PEDAL & FLEXIBLE HOSE

EL55-BGMDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

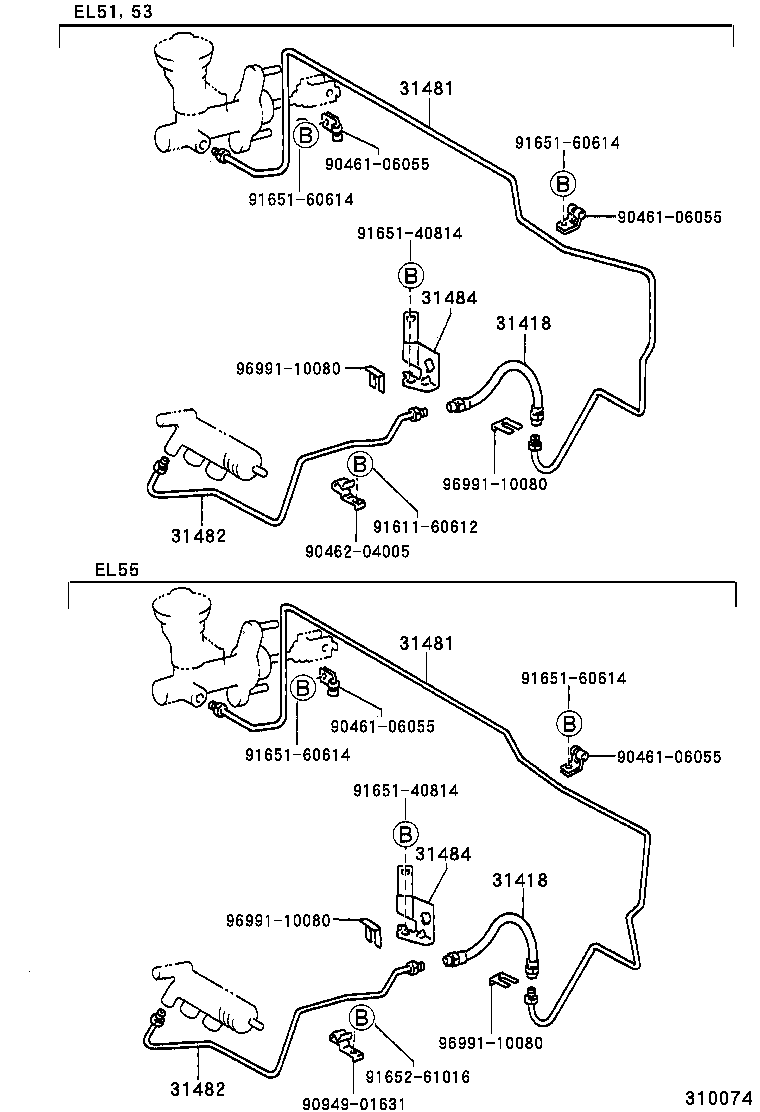

Click highlighted areas on diagram

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90931-01073	EL5#,NL50..MTM	12/1997 - 12/2999	1
90931-01105	EL5#,NL50..MTM	08/1996 - 12/1997	1
90931-01073	EL5#,NL50..MTM	09/1994 - 08/1996	1
31418 - HOSE, CLUTCH
90931-01073	EL5#,NL50..MTM	12/1997 - 12/2999	1
90931-01105	EL5#,NL50..MTM	08/1996 - 12/1997	1
90931-01073	EL5#,NL50..MTM	09/1994 - 08/1996	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16050	EL5#,NL50..MTM ｱﾘ(ABS)	09/1994 - 09/1996	1
31481-16051	EL5#,NL50..MTM ｱﾘ(ABS)	09/1996 - 12/2999	1
31481-16060	EL5#,NL50..MTM	09/1994 - 08/1996	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16050	EL5#,NL50..MTM ｱﾘ(ABS)	09/1994 - 09/1996	1
31481-16051	EL5#,NL50..MTM ｱﾘ(ABS)	09/1996 - 12/2999	1
31481-16060	EL5#,NL50..MTM	09/1994 - 08/1996	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10030	EL55..5F	09/1994 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10030	EL55..5F	09/1994 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10040	EL5#,NL50..MTM	09/1994 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10040	EL5#,NL50..MTM	09/1994 - 12/2999	1
Common parts
90461-06055
90462-04005
90949-01631
91611-60612
91651-40814
91651-60614
91652-61016
96991-10080

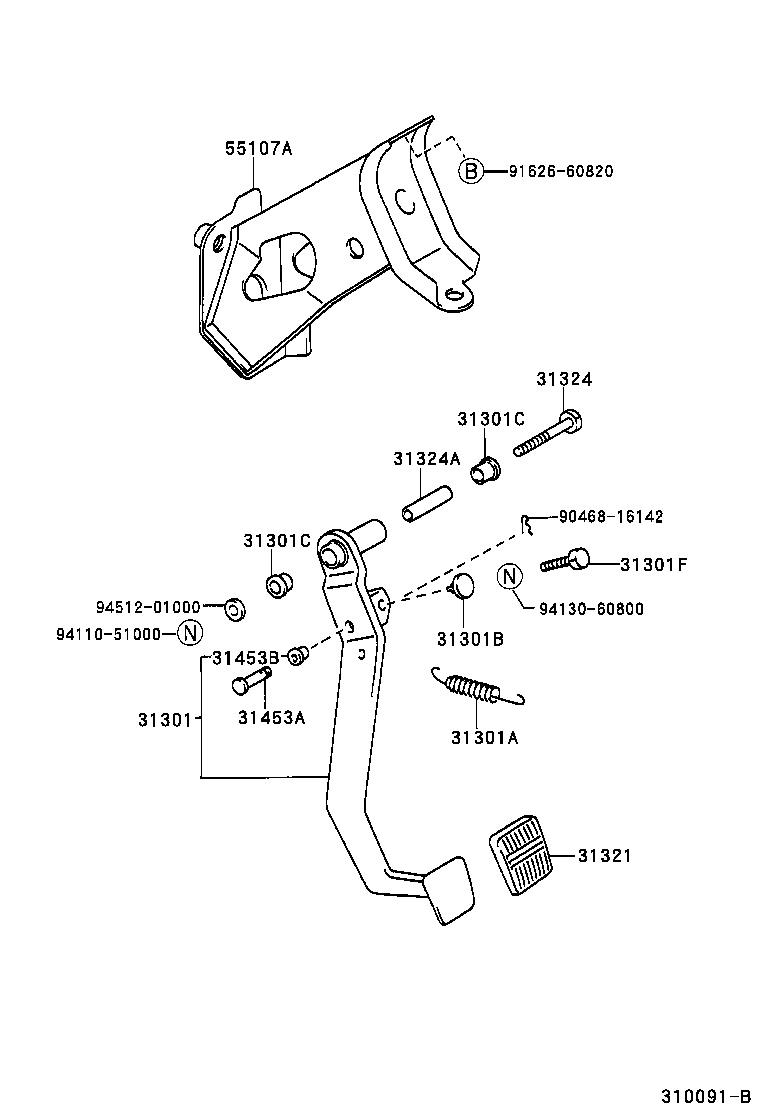

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16090	EL5#,NL50..MTM	09/1994 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14035	EL5#,NL50..MTM	09/1994 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	EL5#,NL50..MTM	09/1994 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	EL5#,NL50..MTM	09/1994 - 12/2999	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	EL5#,NL50..MTM	09/1994 - 12/2999	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052	EL5#,NL50..MTM	09/1994 - 12/2999	1
31321 - PAD, CLUTCH PEDAL
31321-14020	EL5#,NL50..MTM	09/1994 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90101-10015	EL5#,NL50..MTM	09/1994 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	EL5#,NL50..MTM	09/1994 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08243	EL5#,NL50..MTM 長さ=30	09/1994 - 12/2999	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	EL5#,NL50..MTM	09/1994 - 12/2999	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-16070	EL5#,NL50..MTM	09/1994 - 12/2999	1
Common parts
90468-16142
91626-60820
94110-51000
94130-60800
94512-01000
