EL55-BEMXK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

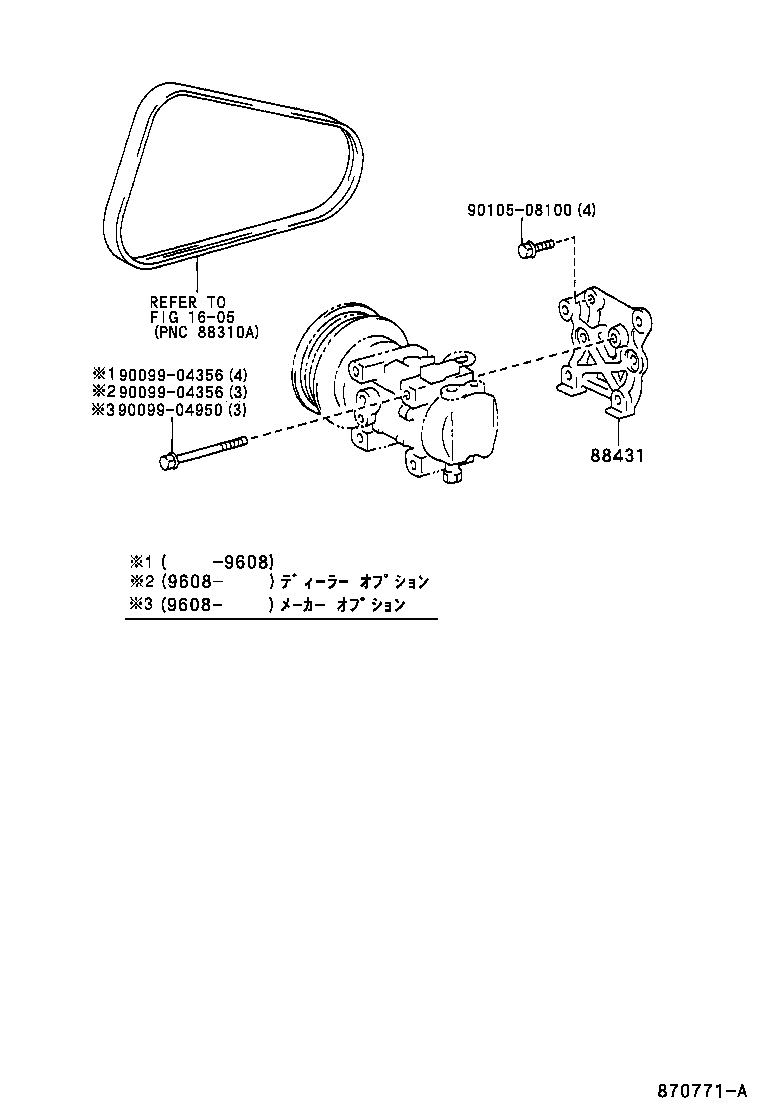

ILLUST NO. 1 OF 2(9409- )EL5#

Click highlighted areas on diagram

diagram 1605 88431 9009904356 9009904356 9009904950 9010508100
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16140

EL5#

 1
88431-16060

EL5#

 1
88431-16120

EL5#..AVE,AXX,CYN,SOP,VITX,VX

 1
Common parts
90099-04356
90099-04950
90105-08100
Linked diagrams
1605

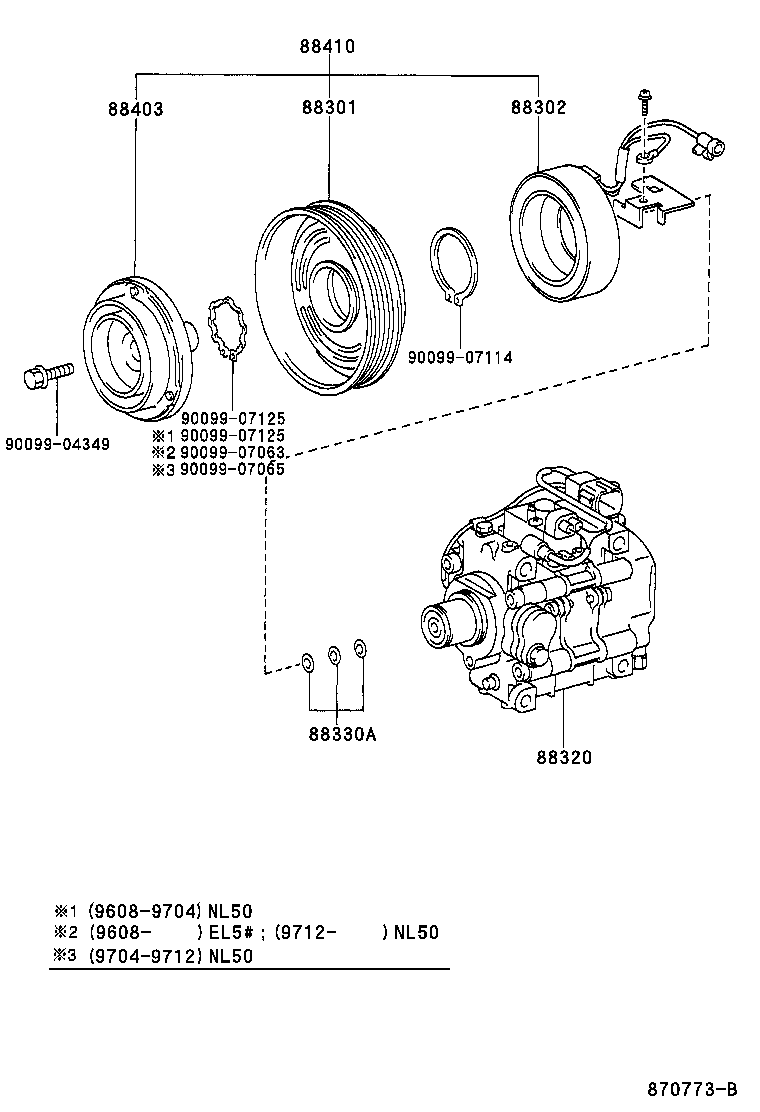

ILLUST NO. 2 OF 2(9409- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907063 9009907065 9009907114 9009907125 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-16160

EL5#

 1
88412-16130

EL5#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-1A040

EL5#,NL50

 1
88411-16070

EL5#,NL50

 1
88411-16070

EL5#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-16390

EL5#;NL50..5F

 1
88320-10550

EL5#

 1
88320-10551

EL5#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

EL5#,NL50

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16020

EL5#,NL50

 1
88403-16020

EL5#

 1
88403-1A010

EL5#,NL50

 1
88410 - CLUTCH ASSY, MAGNET
88410-16181

EL5#

 1
88410-16280

EL5#

 1
Common parts
90099-04349
90099-07063
90099-07065
90099-07114
90099-07125
