EL55-BEMXK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9409- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12172 |
EL55 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12162 |
EL55 |
1 | ||
| 04438-12410 |
EL55 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
EL5#;NL50..5F |
1 | ||
| 41336-12010 |
EL5#,NL50 |
1 | ||
| 41336-12010 |
EL5#,NL50 |
1 | ||
| 41336-12010 |
EL5#;NL50..5F |
1 | ||
| 43247E - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 LH | ||||
| 43247-16040 |
EL5#,NL50 |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-12040 |
EL55 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
EL55 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-16101 |
EL55 |
1 | ||
| 43420-16111 |
EL55 ｱﾘ(ABS) |
1 | ||
| 43420-16112 |
EL55 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-26004 |
EL5#;NL50..5F |
1 | ||
| 90521-26004 |
EL5#,NL50 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
EL5#,NL50 ID=32.5 |
1 | ||
| 42345-16010 |
EL5#,NL50 内径=32.7 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16020 |
EL5#,NL50 ID=88.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
EL5#,NL50 内径=32.7 |
1 | ||
| 42345-16010 |
EL5#,NL50 ID=32.5 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16040 |
EL55 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19506 |
EL55 ｱﾘ(ABS) |
1 | ||
| 43470-19507 |
EL55 |
1 | ||
| 43470-19496 |
EL55 |
1 | ||

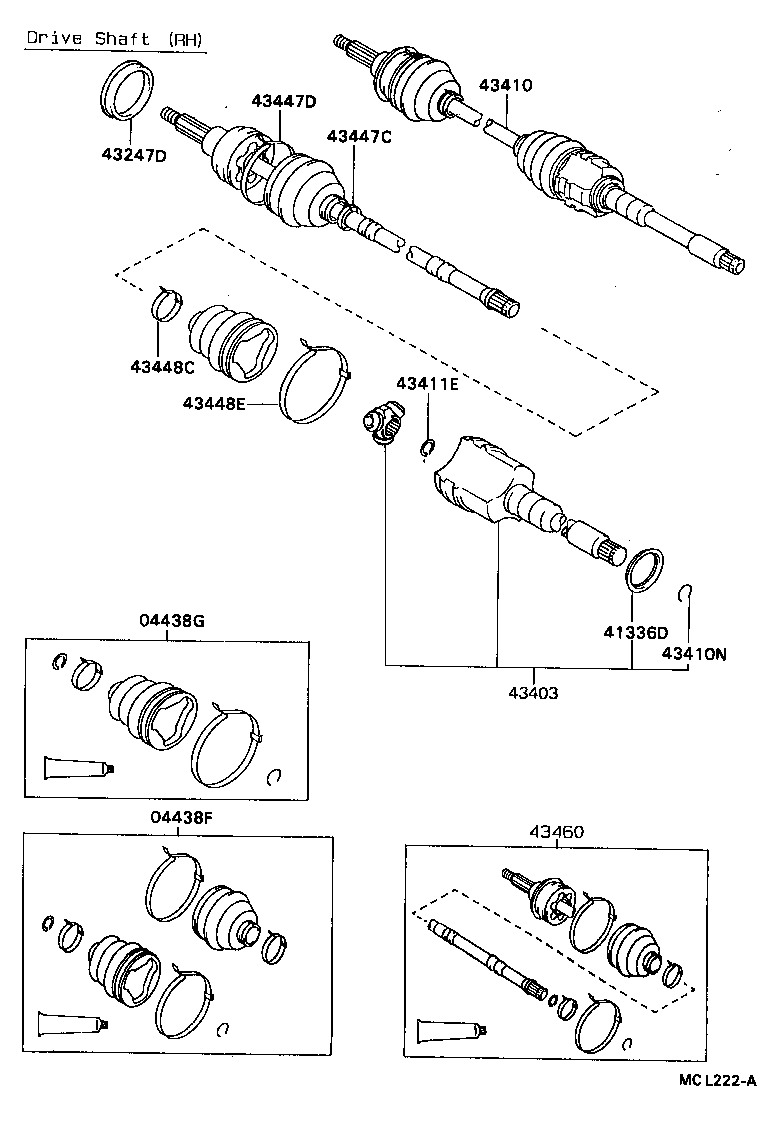

ILLUST NO. 1 OF 2(9409- )EL55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12172 |
EL55 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12162 |
EL55 |
1 | ||
| 04438-12410 |
EL55 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-16020 |
EL55 |
1 | ||
| 43247D - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 RH | ||||
| 43247-16040 |
EL5#,NL50 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43030-16010 |
EL55 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-16171 |
EL55 ｱﾘ(ABS) |
1 | ||
| 43410-16172 |
EL55 |
1 | ||
| 43410-16161 |
EL55 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-26004 |
EL5#;NL50..5F |
1 | ||
| 90521-26004 |
EL5#;NL50..5F |
1 | ||
| 90521-26004 |
EL5#,NL50 |
1 | ||
| 90521-26004 |
EL5#,NL50 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
EL55 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
EL5#,NL50 内径=32.7 |
1 | ||
| 42345-16010 |
EL5#,NL50 ID=32.5 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-16020 |
EL5#,NL50 ID=88.0 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
EL5#,NL50 ID=32.5 |
1 | ||
| 42345-16010 |
EL5#,NL50 内径=32.7 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16040 |
EL55 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43470-19506 |
EL55 ｱﾘ(ABS) |
1 | ||
| 43470-19496 |
EL55 |
1 | ||
| 43470-19507 |
EL55 |
1 | ||
